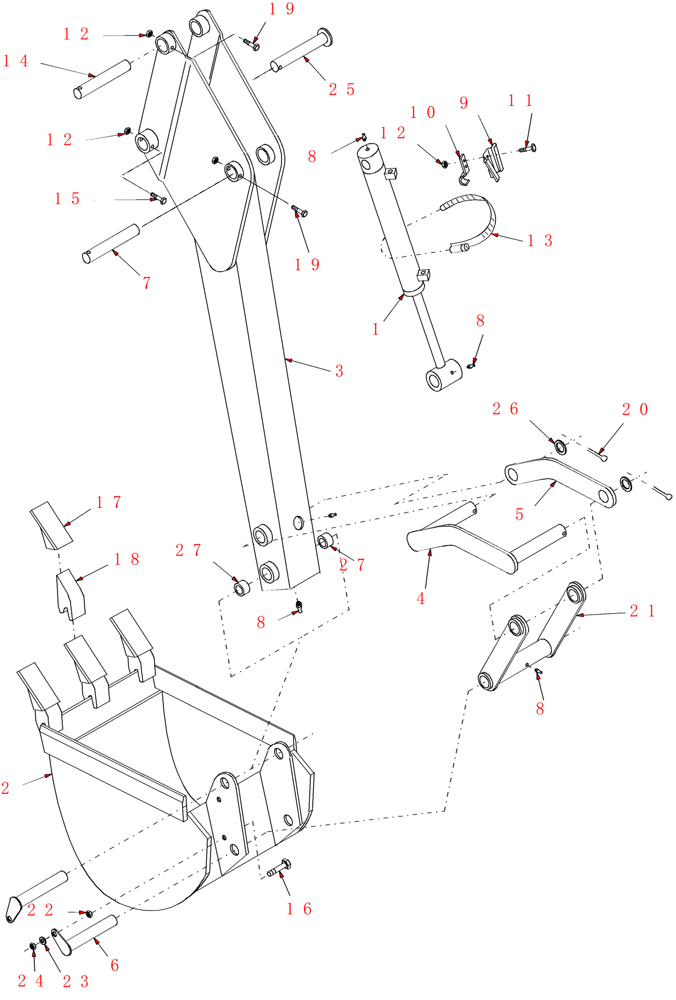

Запчасти Case IH 757C (09) - DIPPERSTICK & BUCKET - 757C

1

CSE44556

HYDRAULIC CYLINDER,Double Acting, 425.45mm Stroke

Bucket, 2-1/4"

1шт.

2

WO

Bucket, Complete

1шт.

3

CSE44844

Dipperstick, Less Bushings

1шт.

4

CSE44754

ARM

Toggle

1шт.

5

CSE44755

PLATE

Link, Arm, Toggle

1шт.

6

SML3133212

PIN

Anti Rotation, 1 x 6-5/8"

2шт.

7

SML359575

PIN

Cylinder Base, 1 x 6-3/8"

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

5шт.

9

SML44793

SOCKET

Slow Moving Vehicle

1шт.

10

SML44794

BRACKET

Mounting, Slow Moving Vehicle

1шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

12

231-4215

LOCK NUT,5/16"-18, GB

1шт.

13

SML60762

CLAMP

1шт.

14

SML466321

PIN

1 x 6-1/8"

2шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Screw, Cap, 3/8 - 16 x 1-1/8"

2шт.

17

SML448671

BUCKET TOOTH

Bucket, 1-3/4 Wide

1шт.

18

SML41703

SHANK

Bucket, 1" Wide

1шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

32-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

21

CSE44757

CLEVIS COUPLING

Link, Bucket

2шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

24

231-4246

LOCK NUT,3/8"-16, GB

3шт.

25

SML44833

PIN

Pivot, 1-1/4 x 7-1/4"

1шт.

26

86582378

WASHER,25.4mm ID x 38.1mm OD x 1.98mm Thk

1" ID

2шт.

27

SML452522

BUSHING

1" I.D. x 1-1/4 O.D.

2шт.
