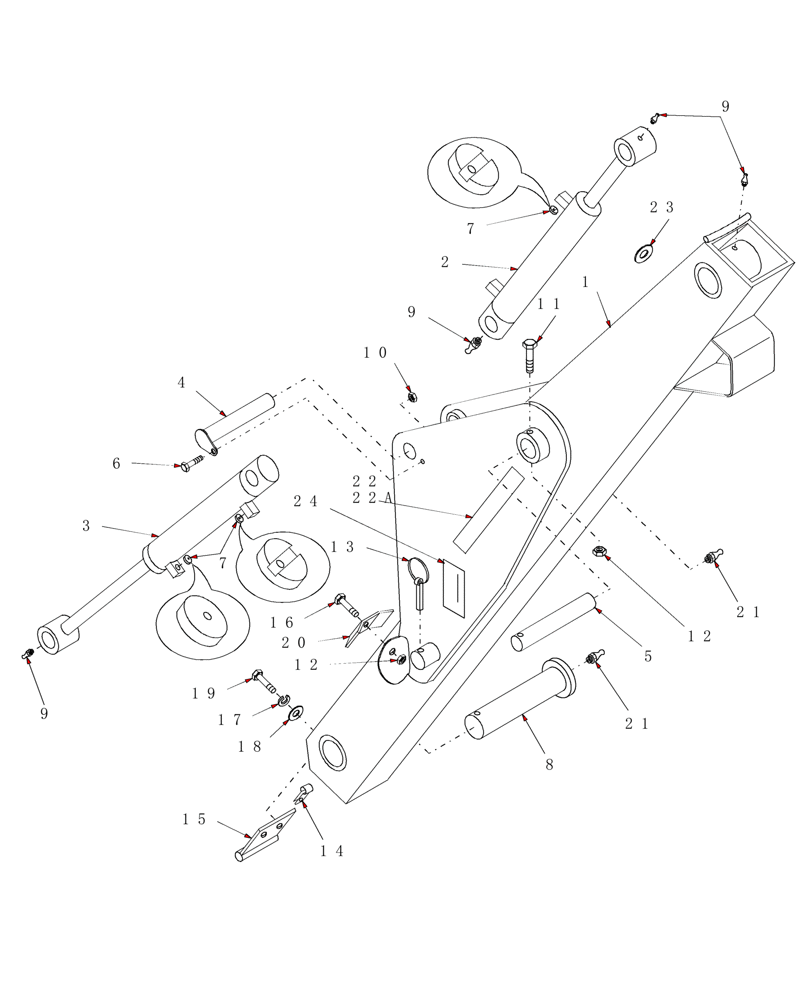

Запчасти Case IH 757C (07) - BOOM - 757C

1

CSE44675

BOOM

1шт.

2

CSE44838

CYLINDER,Double Acting, 425.45mm Stroke

Dipperstick, 2-3/4"

1шт.

3

CSE44545

CYLINDER,Double Acting, 425.45mm Stroke

Boom, 2-3/4"

1шт.

4

SML313328

PIN

Dipper Stick Base, 1 x 5"

1шт.

5

SML44853

PIN,25.4mm OD x 155.45mm L

Lift Cylinder, Base 1 x 6"

1шт.

6

SML31353

BOLT

3/8 - 16 x 1"

1шт.

7

SML44942

RESTRICTOR VALVE

0.074

3шт.

8

SML44833

PIN

Boom, Base, 1-1/4 x 6-1/2"

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

10

231-4246

LOCK NUT,3/8"-16, GB

1шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

12

231-4215

LOCK NUT,5/16"-18, GB

2шт.

13

3147026R1

PIN,8mm OD

5/16 x 1-5/8"

1шт.

14

131-636

SPRING NUT,J, Ret, 5/16"-18

Eaton, 5/16"-18

2шт.

15

CSE45993

CLAMP

Hose

1шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Screw, Cap, 5/16 - 18 x 1-1/4"

1шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

495-11034

WASHER,5/16", SAE

Flat

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

20

SML13722

CLAMP

Clamp

1шт.

21

219-86

LUBE NIPPLE,1/8" NPTF

2шт.

22

CSE48713

DECAL

CASE-IH, L.H.

1шт.

22a

CSE48714

DECAL

CASE-IH, R.H.

1шт.

23

SML60799

GROMMET

Rubber

1шт.

24

SML44908

DECAL

Boom Lock

1шт.
