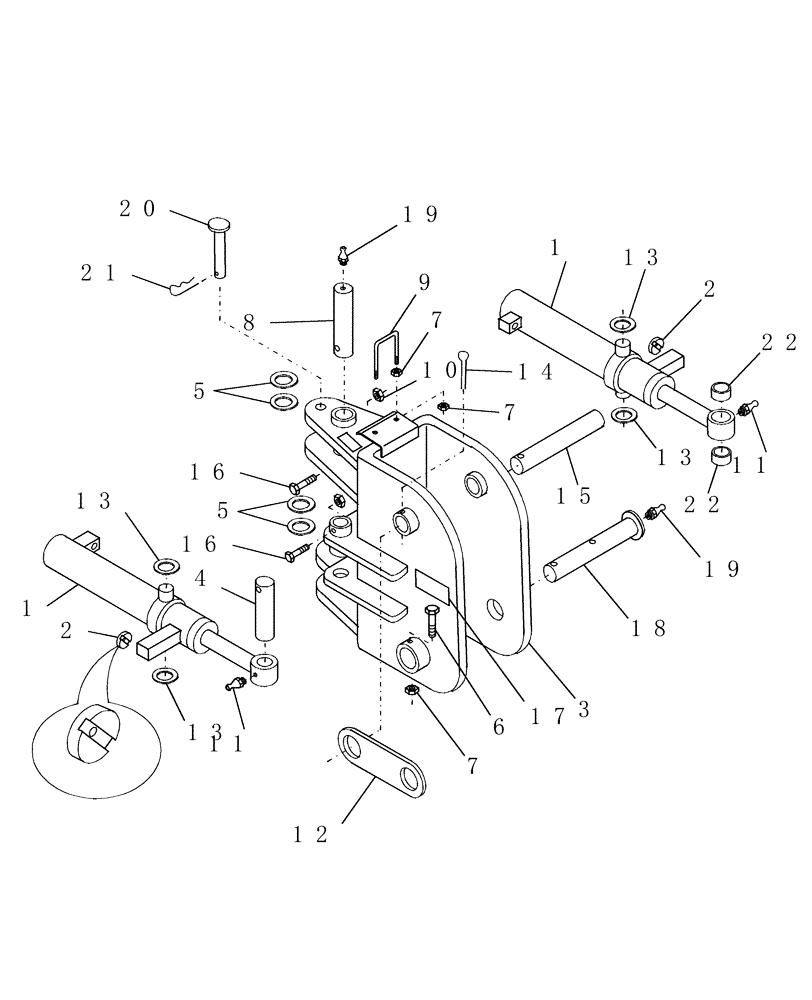

Запчасти Case IH 757C (05) - SWING POST & SWING CYLINDERS - 757C

1

CSE44524

HYDRAULIC CYLINDER,227.84mm Stroke

Cylinder, Swing, 2-1/4" with Bronze Bushings

2шт.

2

SML33740

PLATE

0.062

2шт.

3

SML44712

FRAME

Frame, Swing

1шт.

4

SML359576

PIN

Swing Cylinder, 1 x 4-3/4

2шт.

5

SML44873

BUSHING

Machine, 1-1/2 I.D. x 2-1/4 O.D. x 0.09 Thickness

6шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

7

231-4215

LOCK NUT,5/16"-18, GB

5шт.

8

SML44832

PIN

Swing Post, 1-1/2 x 4

2шт.

9

SML44813

U-BOLT

U-Bolt, 5/16

1шт.

10

231-4246

LOCK NUT,3/8"-16, GB

2шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4 - 28

2шт.

12

SML44869

LOCK

Lock, Boom

1шт.

13

495-81071

WASHER,1 1/32" x 1 5/8" x .067"

1" ID

4шт.

14

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

15

SML466321

PIN

Boom Cylinder Base, 1-1/4 x 7-1/4

1шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

17

SML44908

DECAL

Lock, Boom

1шт.

18

SML44833

PIN

Boom Base, 1-1/4 x 6-1/2

1шт.

19

219-86

LUBE NIPPLE,1/8" NPTF

3шт.

20

SML602113

PIN

Swing Lock, 3/4 x 3, Clevis

1шт.

21

1978737C1

COTTER PIN,Int, 1/8" x 49mm

Pin, Hair, Cotter

1шт.

22

SML60424

DRIVE BUSHING

Bushing, 1" I.D. x 1.25" O.D.

4шт.
