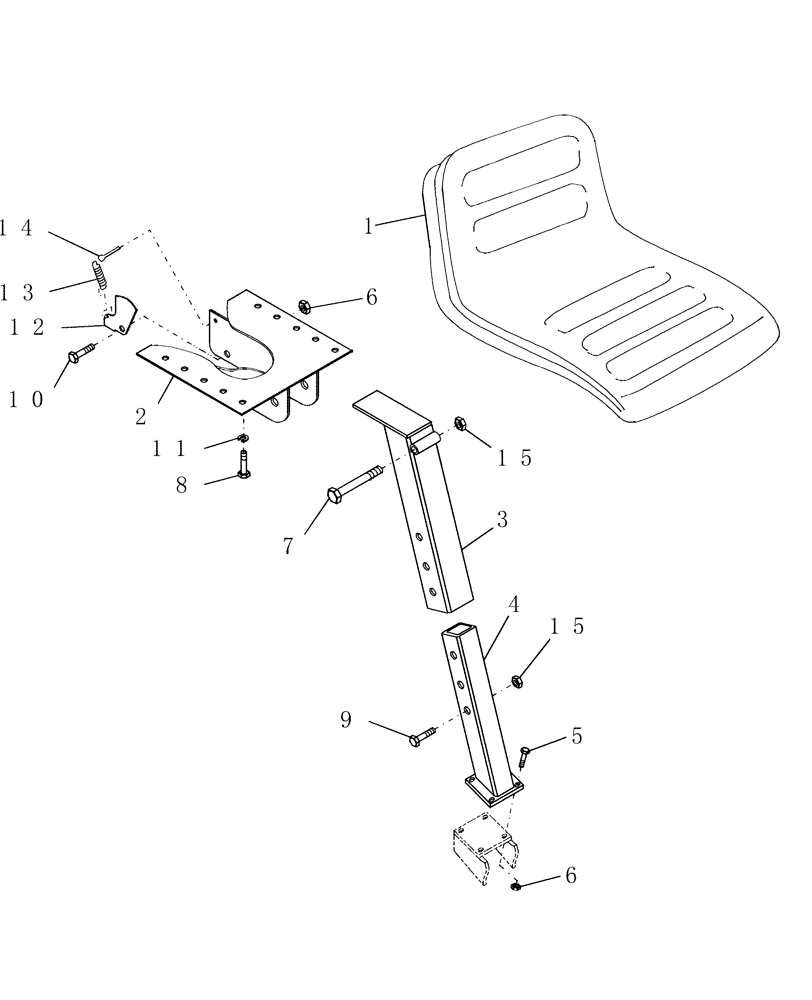

Запчасти Case IH 757C (26) - SEAT- 757C

1

SML44775

SEAT

1шт.

2

CSE44823

SEAT PLATE

1шт.

3

CSE44773

BRACKET

Seat

1шт.

4

CSE44770

SEAT ACCESSORY

Post, Seat

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

6

231-4246

LOCK NUT,3/8"-16, GB

5шт.

7

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

10шт.

9

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3"

1шт.

10

121-223

SCREW,Shldr, 5/16" - 18 x 3/8"

Bolt, Shoulder, 3/8 - 16 x 1-1/2"

1шт.

11

492-11025

LOCK WASHER,1/4"

1шт.

12

SML44814

LATCH

Spacer

1шт.

13

SML44819

SPRING

1шт.

14

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

15

231-4248

NUT,1/2"-13, GB

3шт.
