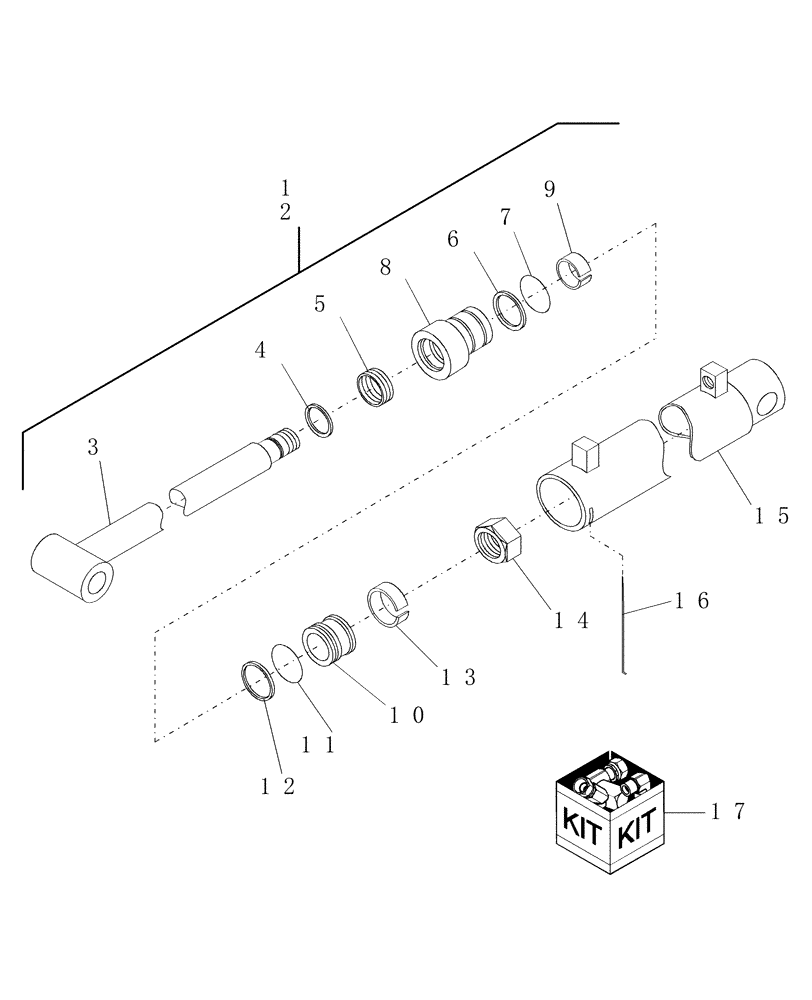

Запчасти Case IH 757C (23) - BOOM & DIPPER CYLINDER, 2-3/4 - 757C

1

CSE44545

CYLINDER,Double Acting, 425.45mm Stroke

Boom, 2-3/4"

1шт.

2

CSE44838

CYLINDER,Double Acting, 425.45mm Stroke

Dipper 2-3/4

1шт.

3

SML44544

ROD

1.5" (Boom Cylinder)

1шт.

3

SML44839

ROD

1.5" (Dipper Cylinder)

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

86581661

CYLINDER HEAD

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

10

86581662

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Seal Piston

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

14

514101

LOCK NUT,Hex, 1" - 14

Nut, Lock, G8, 1"-14

1шт.

15

CSE44540

TUBE ASSY.

Cylinder Tube, Weldment (Boom Cylinder)

1шт.

15

CSE44837

TUBE ASSY.

Cylinder, Tube, Weldment (Dipper Cylinder)

1шт.

16

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

17

86581665

SEAL KIT

Includes: Ref. 4 thru 7, 9, 11 thru 13, 16

1шт.
