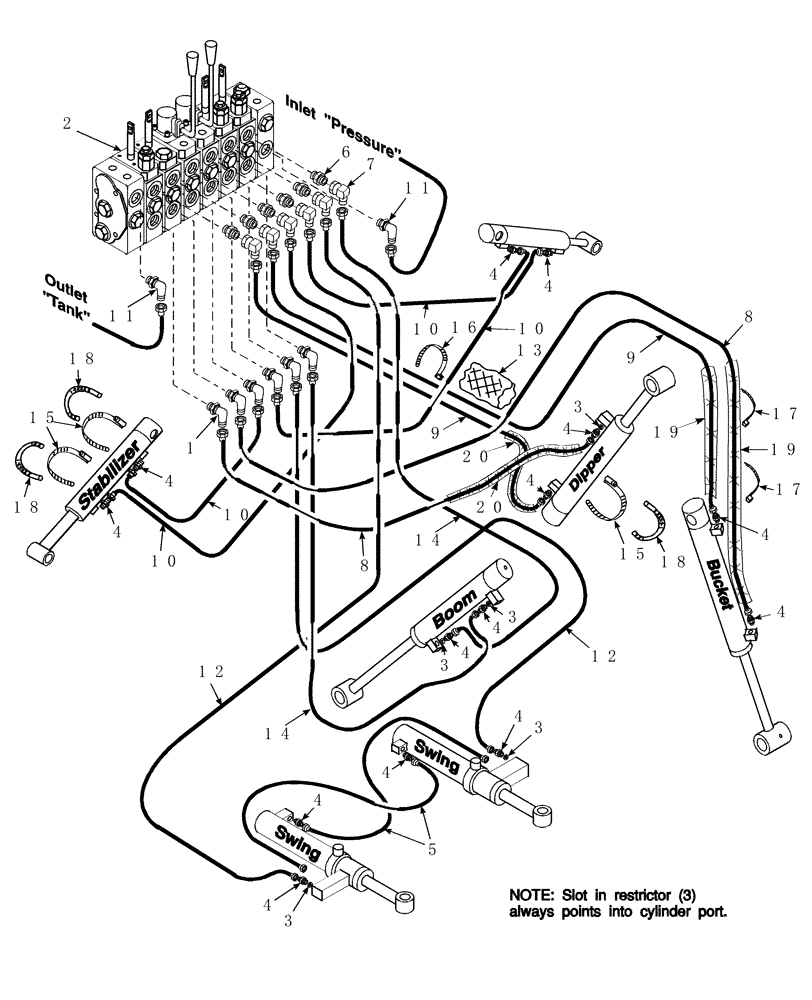

Запчасти Case IH 757C (15) - HYDRAULIC HOSES & FITTINGS - 757C

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

6шт.

2

SML44752

CONTROL VALVE

Gresen V-10

1шт.

3

SML47879

REDUCER

0.074 (NOTE: Slot In Restrictor (3) Always Points Into Cylinder Port.)

5шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Straight, 3/4"-16 Flare x 9/16"-18 O-Ring, Includes: O-Ring 237-6006

1шт.

5

SML382909

HOSE

1/4 x 24" (Swing Cylinder to Swing Cylinder)

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Adapter, 3/4 O-Ring x 9/16 JIC

6шт.

7

259177

ELBOW,90º, 9/16"-18, 37º x 9/16"-18, 37º Fem Sw

Fitting, Elbow, 9/16 - 18 JIC x 9/16 - 18 JIC Swivel, 90o

6шт.

8

SML3283713

HOSE,0.25" ID x 124.00"

(Dipper & Bucket Rod)

2шт.

9

SML3283711

HOSE,0.25" ID x 108.00"

(Dipper & Bucket Base)

2шт.

10

SML3283710

HOSE,0.25" ID x 54.00"

(Stabilizer to Valve)

4шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

12

SML328379

HOSE,0.25" ID x 40.00"

(Swing Cylinder to Valve)

2шт.

13

SML348532

SLEEVE

Nylon

1шт.

14

SML3283712

HOSE,0.25" ID x 66.00"

2шт.

15

SML60762

CLAMP

6шт.

16

SML81373

STRAP

Strap, Tie, Adjustable, 1/2x20"

2шт.

17

86582400

STRAP

Tie Adjustable, 3/16 x 11"

6шт.

18

SML448651

LOOM

Woven Cotton, Protector

12шт.

19

SML3485323

SLEEVE

Sleeve, Nylon, 44"

2шт.

20

SML3485322

SLEEVE

Sleeve, Nylon, 24"

2шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.
