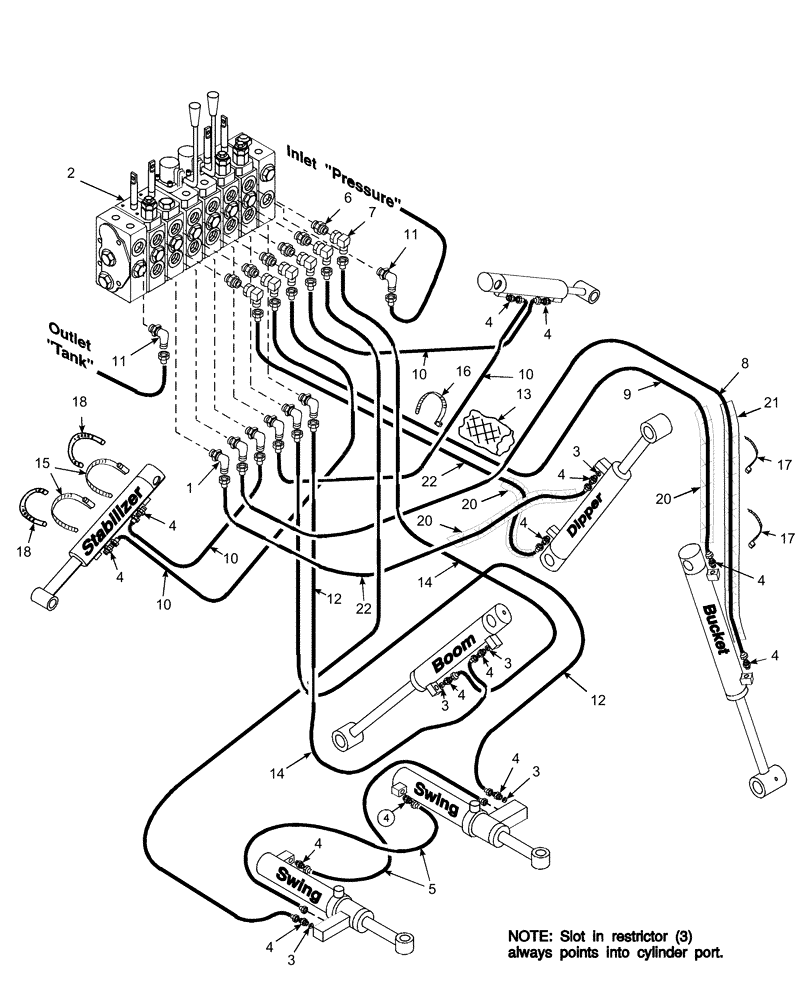

Запчасти Case IH 716524016 (28) - HYDRAULIC HOSES & FITTINGS

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

6шт.

2

SML45882

CONTROL VALVE

Valve, Control, Gresen V-10, Refer to Fig. 26 for breakdown

1шт.

3

SML44942

RESTRICTOR VALVE

Valve, Restrictor, .074

5шт.

4

SML328441

ADAPTER

Fitting

14шт.

5

SML382909

HOSE

1/4 x 24" (Swing Cylinder to Swing Cylinder)

2шт.

6

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., Straight, 7/8"-14 Flare x 3/4"-16 O-Ring Boss, Incl. O-Ring 237-6008

6шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

-10 90°, 7/8"-14 Flare Male x Swivel Flare Female

6шт.

8

SML3283713

HOSE,0.25" ID x 124.00"

(Dipper & Bucket Rod) 0.25" ID x 124.00"

1шт.

9

SML3283711

HOSE,0.25" ID x 108.00"

(Dipper & Bucket Base) 0.25" ID x 108.00"

1шт.

10

SML3283710

HOSE,0.25" ID x 54.00"

(Stabilizer to Valve) 0.25" ID x 54.00"

4шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Fitting, 90° Elbow, 3/4"-16 JIC x 3/4"-16 O-Ring

2шт.

12

SML328379

HOSE,0.25" ID x 40.00"

(Swing Cylinder to Valve) 0.25" ID x 40.00"

2шт.

13

SML3485320

SLEEVE

Nylon

1шт.

14

SML3283712

HOSE,0.25" ID x 66.00"

0.25" ID x 66.00"

2шт.

15

SML60762

CLAMP

Hose

5шт.

16

86581720

SECURING STRAP

Strap, Tie, Adjustable, 1/2 x 20"

1шт.

17

86582400

STRAP

Adjustable Tie, 3/16" x 11"

11шт.

18

SML448651

LOOM

Woven Cotten

4шт.

19

SML3485322

SLEEVE

Nylon, 24"

1шт.

20

SML3485321

SLEEVE

Nylon, 30"

2шт.

21

SML3485323

SLEEVE

Nylon, 44"

1шт.

22

SML3283716

FLEXIBLE HOSE

Hose, Flexible, 1/4" x 102" (Dipper Cylinder Base & Rod)

2шт.
