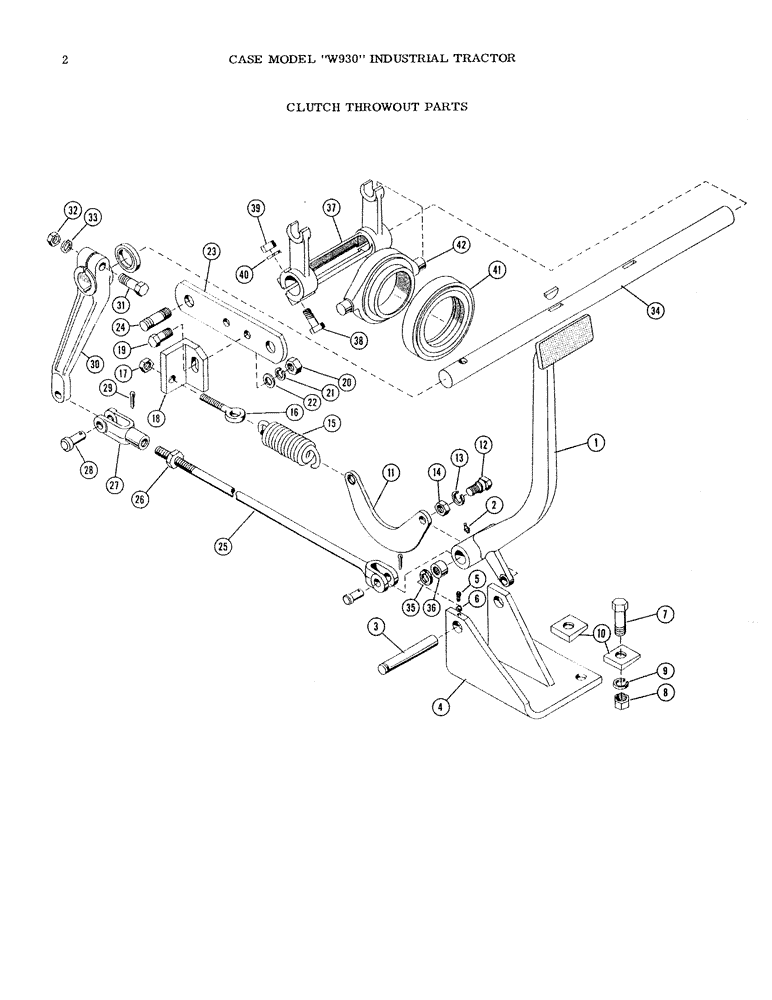

Запчасти Case IH W930 (02) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

1

A21847

Pedal - foot clutch

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - 1/8" str. Lincoln

1шт.

3

A21842

Pin - clutch pedal fulcrum

1шт.

4

A21839

Support - clutch throwout

1шт.

5

181-5

Set screw - #10-24 x 7/8" sq. hd. cone pt.

1шт.

6

129-662

Nut - #10-24 N.C. hex. jam

1шт.

7

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

8

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

A13404

Washer - bevel, clutch pedal support

2шт.

11

A21843

Link - clutch pedal spring

1шт.

12

8053AB

Bolt - clutch pedal return spring

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. Jam

1шт.

15

10008AB

Spring - clutch pedal return

1шт.

16

9549AB

Eyebolt - clutch pedal return spring

1шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam

2шт.

18

A21844

Bracket - clutch pedal spring

1шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

1шт.

20

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

21

92-8

LOCK WASHER,1/2"

1шт.

22

195-33

WASHER,1/2"

- SAE plain 1/2"

1шт.

23

A21845

Bar - clutch pedal spring adjusting

1шт.

24

A21846

Stud - rear axle housing (L.H.)

2шт.

25

8046AB

Rod - clutch throwout

1шт.

26

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex. jam

1шт.

27

2701AB

Yoke - clutch throwout rod

1шт.

28

2499AB1

Pin - clutch throwout rod

2шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

30

A21837

Lever - clutch throwout

1шт.

31

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.F. hex.

1шт.

32

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

33

92-8

LOCK WASHER,1/2"

1шт.

34

A21836

Shaft - clutch throwout

1шт.

35

9546AB

Packing - felt, clutch pedal

1шт.

36

10051AB

Bearing - clutch pedal

2шт.

37

6231A

Yoke - clutch release

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

2шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

10004AB

Bearing - clutch release

1шт.

42

A21848

Sleeve - clutch release bearing

1шт.

A20944

Carrier - clutch shaft oil seal (Agricultural tractors only), (Figure 68-catalog no. 678)

1шт.

A21838

Carrier - clutch shaft oil seal (Industrial tractors only), Figure 68-catalog no. 678)

1шт.
