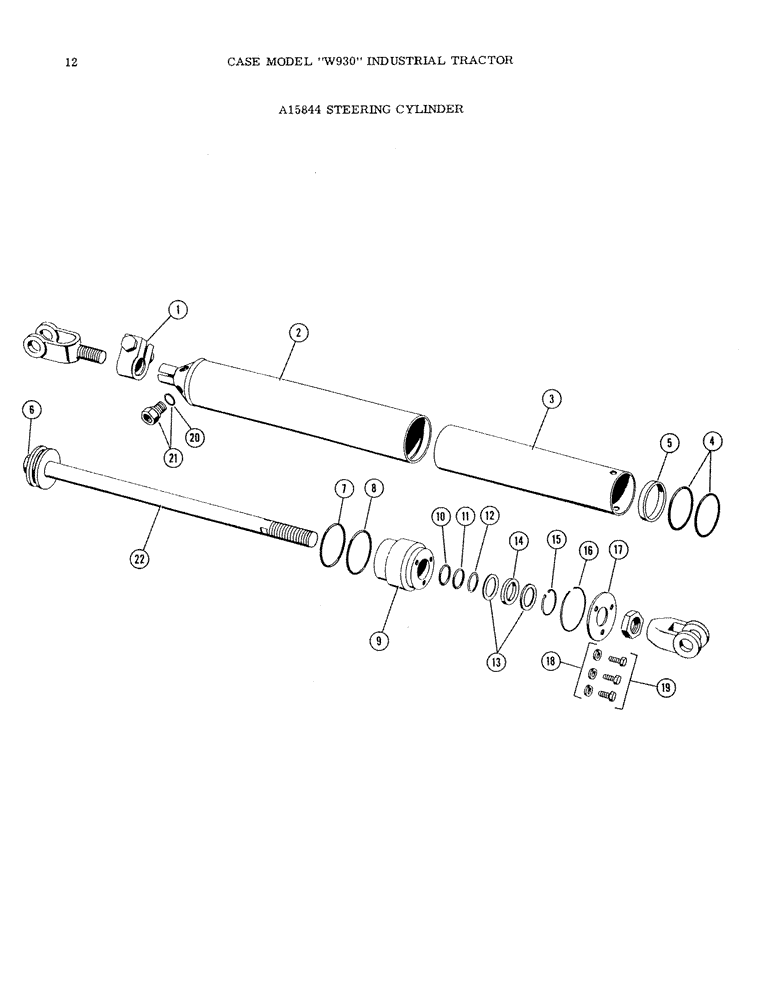

Запчасти Case IH W930 (12) - A15844 STEERING CYLINDER (05) - STEERING

1

A16638

CLAMP

1шт.

2

A16625

Tube and head - cylinder, outer

1шт.

3

A16626

Tube - cylinder, inner

1шт.

4

10370AB

Ring - piston

2шт.

5

A16629

SEAL

Seal - piston ring

1шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

7

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" ring - bearing to cylinder

1шт.

8

A16633

RING

- back-up

1шт.

9

A16631

Bearing - piston rod end

1шт.

10

8377AB

"O" ring - piston rod

1шт.

11

A16635

GASKET

"O" ring - back-up

1шт.

12

A16636

RING

- retaining

1шт.

13

A16637

WASHER

Ring - back-up, seal

2шт.

14

A7090

OIL SEAL

- piston rod

1шт.

15

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal

1шт.

16

A16634

RING

Lock-ring - retaining

1шт.

17

A16632

LARGE PLATE

Plate - cylinder end

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

19

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

20

A16640

X

"O" ring - seat

2шт.

21

A16641

ADAPTER

seat, with "O" ring (A16640)

2шт.

22

A16630

Rod - piston, w/piston, rings, seal and nut

1шт.
