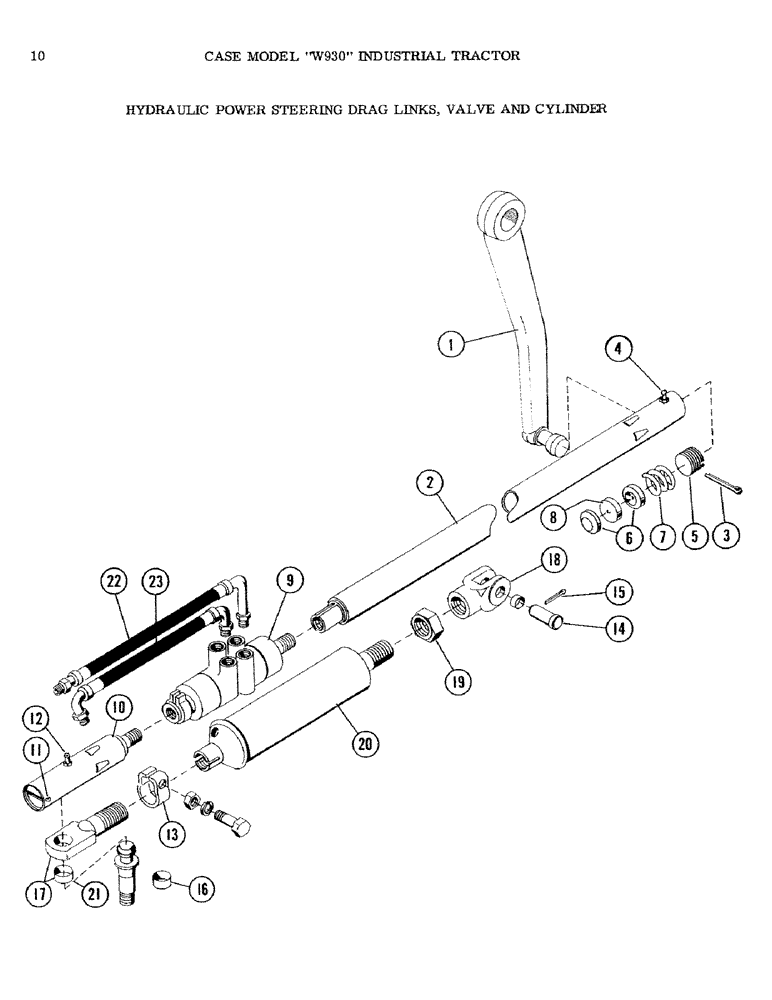

Запчасти Case IH W930 (10) - HYDRAULIC POWER STEERING DRAG LINKS, VALVE AND CYLINDER (05) - STEERING

1

A10038

Arm - steering drop, w/ball

1шт.

3

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

2

A20492

Drag Link - rear

1шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - lube, 1/8" str. Lincoln

1шт.

5

2003AB

Screw - drag link adjusting

2шт.

6

2004AB

Bearing - drag link

4шт.

7

2005AB

Spring - drag link

2шт.

8

3938AB1

Seat - drag link

2шт.

9

A8226

Valve - hydraulic power steering

1шт.

10

4772AA

Drag link - front

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - lube, 1/8" str. Lincoln

1шт.

13

6476AB

Clamp - valve

2шт.

14

10303AB

Pin - yoke, hydraulic steering

1шт.

15

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

16

10308AB

Bushing - pivot pin

1шт.

17

4811AA

Turnbuckle - steering cylinder (w/010501AB bushing)

1шт.

18

6383A

Yoke - female, steering cylinder

1шт.

19

10302AB

Nut - jam, yoke

1шт.

20

A15844

Cylinder - steering

1шт.

21

10501AB

Bushing - turnbuckle

1шт.

22

A23028

HOSE

- valve to cylinder, front

1шт.

23

A23029

Hose - valve to cylinder, rear

1шт.
