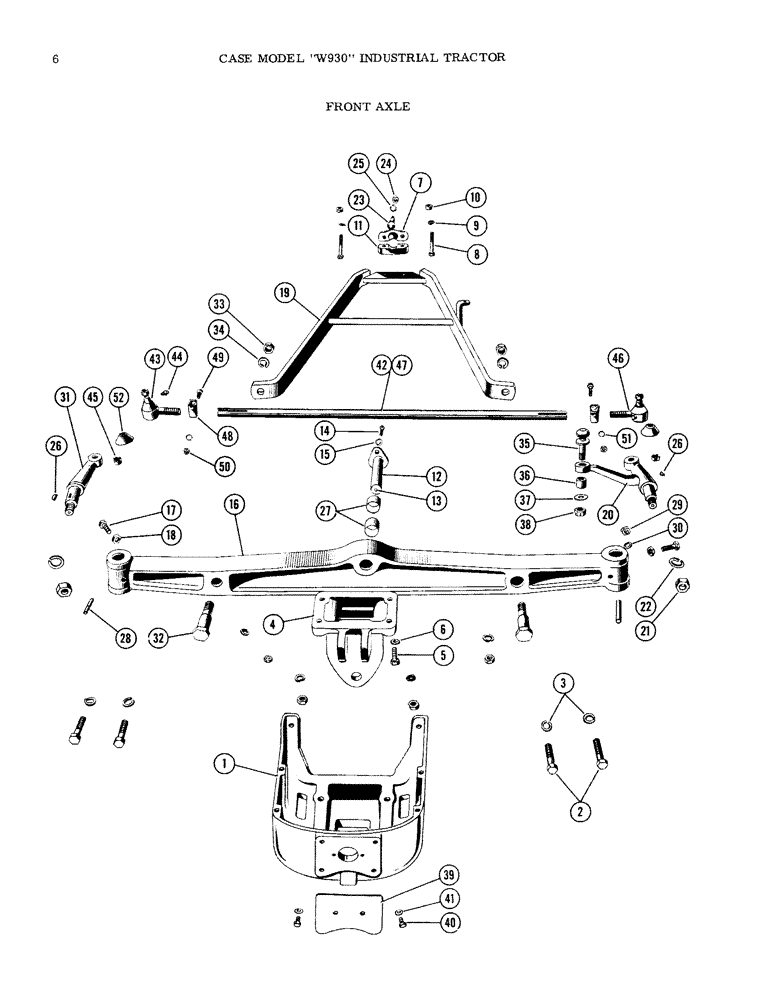

Запчасти Case IH W930 (06) - FRONT AXLE (06) - POWER TRAIN

1

A21791

Bracket - front axle and radiator

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

A20563

Pedestal - front axle

1шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

4766A

Cap - radius rod ball socket

1шт.

8

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

- 5/8" x 4" N.F. hex.

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

11

6200A

Socket - radius rod ball

1шт.

12

4330AA

Pin - front axle pivot

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - 1/8" Str. Lincoln

1шт.

14

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

1шт.

15

92-8

LOCK WASHER,1/2"

1шт.

16

4360AA

Axle - front with 09439AB bushings

1шт.

17

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

Stop Hex, 5/8"-18 x 1 1/2", G5

2шт.

18

86637932

JAM NUT,Jam, 5/8"-18, G5

Nut - stop bolt, 5/8" N.F. hex. jam.

2шт.

19

4824AA

Radius rod - front axle

1шт.

20

10527AB

Arm - steering spindle, L.H.

1шт.

21

25-1116

NUT,1"-14, G5

- 1" N.F. hex.

2шт.

22

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

23

1443AB2

Ball - radius rod pivot

1шт.

24

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex

1шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

26

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

For 010527AB and 09452AB arms #C, 5/16" x 1 1/8", HT

2шт.

27

9439AB

Bushing - pivot pin

2шт.

28

9443AB

Lock - king pin

2шт.

29

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

31

9452AB

Arm - steering spindle, R.H.

1шт.

32

9458AB

Bolt - radius rod, front

2шт.

33

25-1116

NUT,1"-14, G5

- 1" N.F. hex

2шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

35

10502AB

Ball Stud - steering spindle, L.H.

1шт.

36

10503AB

Sleeve - for 010502AB ball stud

1шт.

37

10504AB

Washer - for 010502AB ball stud

1шт.

38

131-301

LOCK NUT

Nut - Marsden lock (5/8") for 010502AB ball stud

1шт.

39

A20279

Cover - front axle bracket

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

4333AA

Tie rod - complete, parts for the rod

1шт.

43

4356AA

End - socket, w/R.H. thread and rubber dust cover and nut, parts for the rod

1шт.

44

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting - 1/8" str. Lincoln, parts for the rod

2шт.

45

25-1210

SLOTTED NUT,5/8"-11, G5

Nut - 5/8" slotted, parts for the rod

2шт.

46

4357AA

End - socket, w/L.H. thread and rubber dust cover and nut, parts for the rod

1шт.

47

9469AB

Rod - tie, parts for the rod

1шт.

48

9470AB

Clamp - tie rod, parts for the rod

2шт.

49

9471AB

Bolt - for 09470AB clamp, parts for the rod

2шт.

50

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex., parts for the rod

2шт.

51

92-8

LOCK WASHER,1/2"

parts for the rod 1/2"

2шт.

52

9472AB

Seal - rubber dust cover, parts for the rod

2шт.
