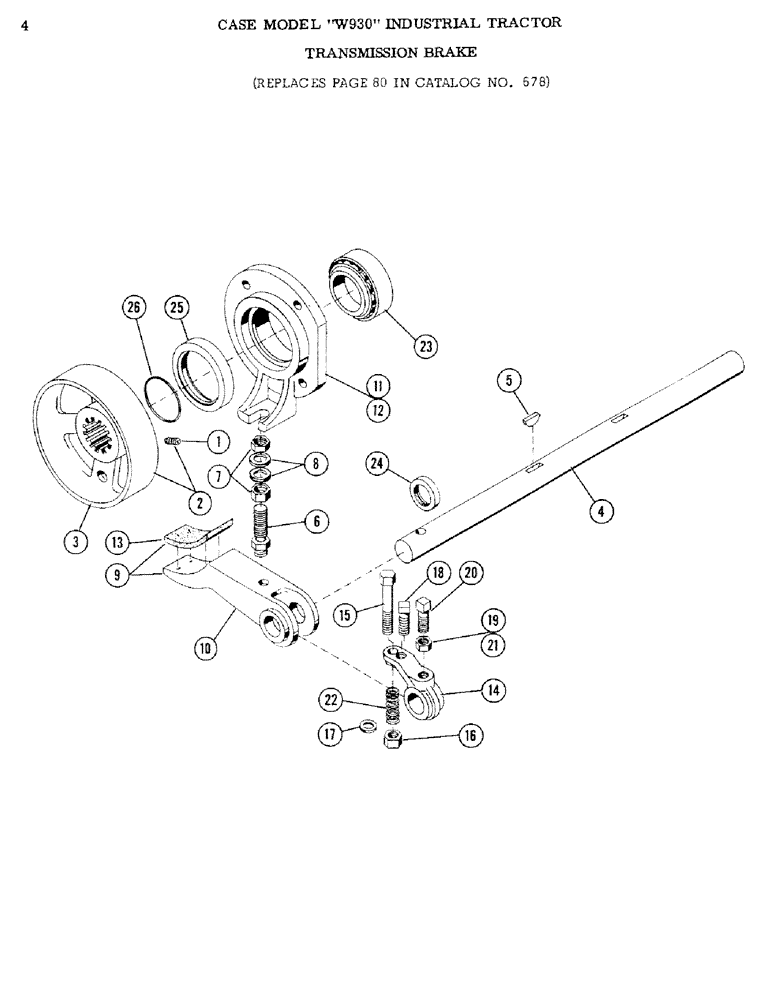

Запчасти Case IH W930 (04) - TRANSMISSION BRAKE, REPLACES PAGE 80 IN CATALOG NO. 678 (06) - POWER TRAIN

1

A9906

X

Set screw - brake pulley

2шт.

2

A20311

Pulley - first reduction shaft brake (Includes 2-A9906)

1шт.

3

A20319

Pulley - (Use A20311)

1шт.

4

A21836

Shaft - clutch throwout

1шт.

5

126-24

WOODRUFF KEY,#15, 1/4" x 1"

3шт.

6

A20322

Bolt - differential bearing carrier anchor

1шт.

7

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

2шт.

8

95-8

WASHER,1/2"

- std. wrought 1/2"

1шт.

9

A21834

Shoe - brake, w/lining

1шт.

10

A21835

Shoe - brake (Use A21834)

1шт.

11

A20318

Carrier - bearing (Use A20326)

1шт.

12

A20326

Carrier - first reduction shaft bearing R.H. with cup

1шт.

13

A21104

LINING

- brake shoe, includes rivets

1шт.

14

5999A

Collar - brake pulley adjusting

1шт.

15

16-564

Bolt - 5/16" x 4" N.F. hex

1шт.

16

25-115

NUT,5/16"-24, G5

2шт.

17

195-21

WASHER,5/16"

SAE plain 5/16"

1шт.

18

85-624

Set screw - 3/8" x 1-1/2" N.C. cup point

1шт.

19

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

20

1498AB

Set screw - 5999A collar

1шт.

21

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex. jam

1шт.

22

3282AB

Spring - brake pulley adjusting collar bolt

1шт.

23

2879AB

Cup - bearing, for A20326 carrier

1шт.

24

3869AB

Oil seal - clutch throwout shaft

2шт.

25

3873AB

Oil seal - bearing carrier

1шт.

26

3523CK

"O" ring - brake pulley

1шт.

A10116

LINK

Apron - L.H. (Agricultural tractor only), fenders (Figure 86 catalog 678)

1шт.

A21855

Apron - L.H. (Industrial tractor only), fenders (Figure 86 catalog 678)

1шт.
