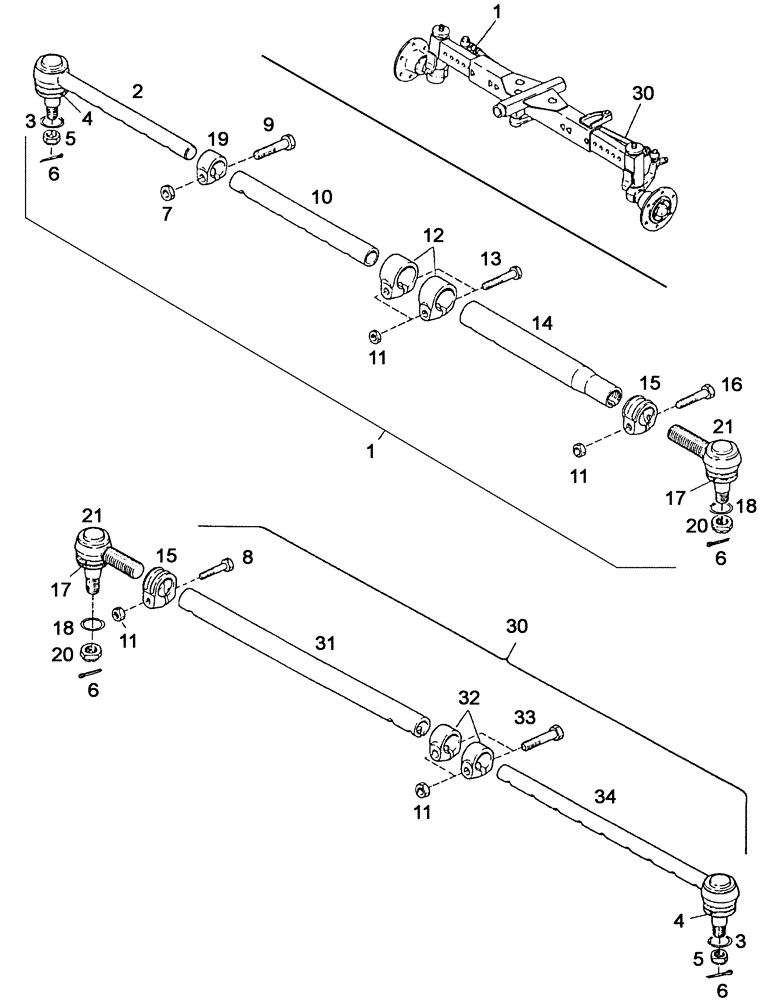

Запчасти Case IH C55 (05-10[02]) - STEERING TIE ROD - ADJUSTABLE FRONT AXLE (04) - STEERING

1

133700430090

TIE-ROD

Rechts/Right/Droite/H�jre/Destra - Besteht aus/Consists of/Compose de/Best�ende af/� composto da 2 - 18, 20, 21

1шт.

2

133700430736

JOINT

Einschlie�lich/Includes/Avec/Inklusive/Compreso 3, 4, 16, 18

1шт.

3

133700430739

RING

2шт.

4

133700430738

BELLOWS

2шт.

5

190003872345

NUT

M16x1,5

2шт.

6

190003920347

PIN, SPLIT (COTTER)

PIN, COTTER , 4x32

4шт.

7

190003888457

NUT

VM12x1,5

1шт.

8

190003803540

SCREW,M10 x 1 x 45mm, Cl 10.9

M10x1x45-10.9

1шт.

9

190003803646

SCREW,M12 x 1.5 x 50mm

M12x1,5x50

1шт.

10

133700430735

PIPE

1шт.

11

190003888615

NUT

VM10x1

6шт.

12

133700430730

CLAMP

2шт.

13

190003803550

SCREW,M10 x 1 x 55mm

M10x1x55

2шт.

14

133700430734

PIPE

1шт.

15

133700430729

CLAMP

2шт.

16

190003803540

SCREW,M10 x 1 x 45mm, Cl 10.9

M10x1x45-10.9

1шт.

17

133700430728

BELLOWS

2шт.

18

133700430740

RING

2шт.

19

133700430732

CLAMP

1шт.

20

190003872351

NUT

M18x1,5

2шт.

21

133700430727

BALL JOINT

Einschlie�lich/Includes/Avec/Inklusive/Compreso 6, 17, 18, 20

2шт.

30

133700430089

TIE-ROD

TIE ROD , Links/Left/Gauche/Venstre/Sinistro - Besteht aus/Consists of/Compose de/Best�ende af/� composto da 3 - 6, 8, 11, 15, 17, 18, 20, 21, 31 - 34

1шт.

31

133700430733

PIPE

1шт.

32

133700430731

CLAMP

2шт.

33

190003803541

SCREW,M10 x 1 x 50mm, Cl 10.9

M10x1x50-10.9

2шт.

34

133700430737

JOINT

Einschlie�lich/Includes/Avec/Inklusive/Compreso 3 - 6

1шт.
