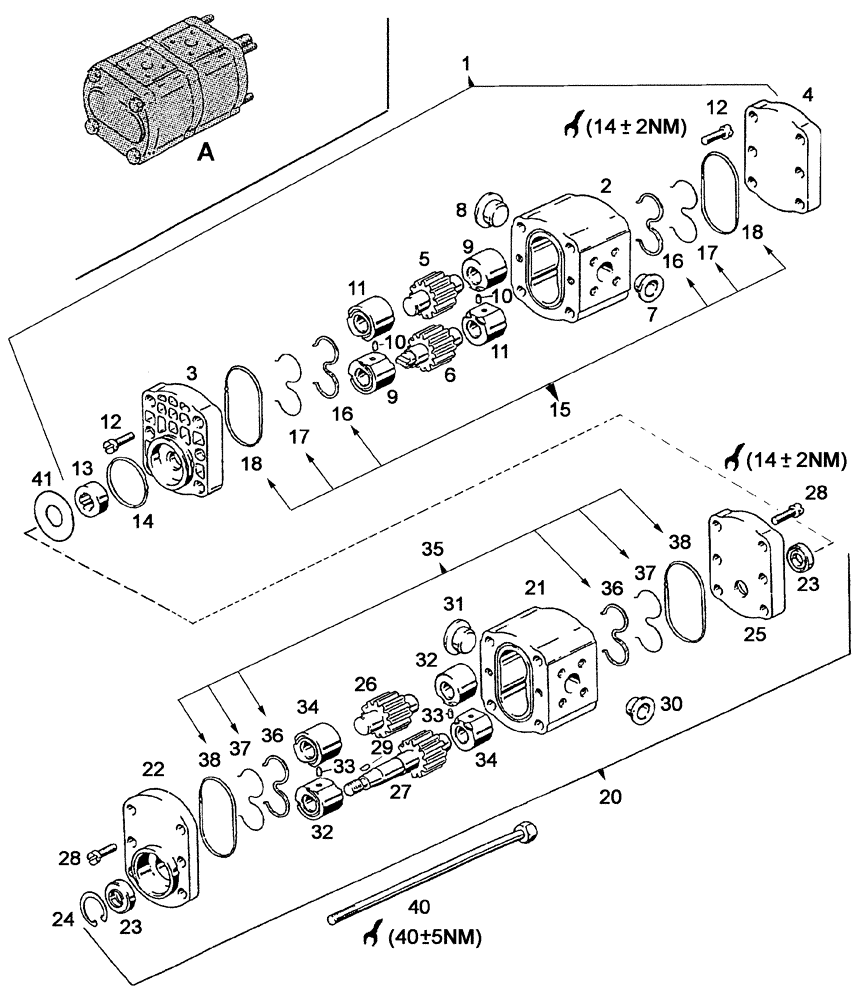

Запчасти Case IH C55 (02-28[01]) - PUMP, TANDEM - DISASSEMBLED (02) - ENGINE
![Схема запчастей Case IH C55 - (02-28[01]) - PUMP, TANDEM - DISASSEMBLED (02) - ENGINE](https://partsell.ru/storage/images/caseih/521137.png)
24
16
38
37
27
12
25
28
13
18
31
11
11
23
9
33
5
8
2
7
9
40
37
10
3
17
15
26
21
36
18
23
35
14
41
34
29
36
4
22
28
12
10
32
6
38
17
32
16
20
34
30
a
33
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
a
155700750003
PUMP, HYDRAULIC
16/11ccm-LI, Besteht aus/Consists of/Compose de/Bestående af/È composto da 1 - 41
1шт.
1
155700750711
PUMP
Besteht aus/Consists of/Compose de/Bestående af/È composto da 2 - 28
1шт.
15
155700750701
GASKET KIT
Besteht aus/Consists of/Compose de/Bestående af/È composto da 16 - 18
1шт.
20
155700750712
BODY
Besteht aus/Consists of/Compose de/Bestående af/È composto da 21 - 38
1шт.
35
155700750701
GASKET KIT
Besteht aus/Consists of/Compose de/Bestående af/È composto da 36 - 38
1шт.
Выбрано товаров: 0
