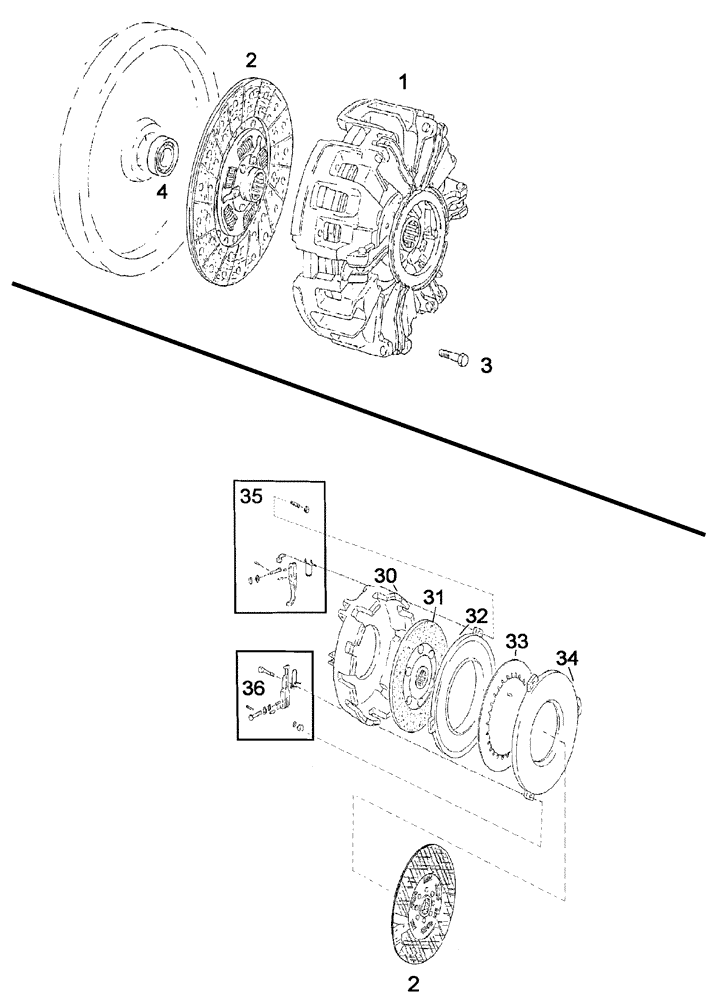

Запчасти Case IH C55 (02-25[01]) - TWO FUNCTION CLUTCH - BUILT-IN / DISASSEMBLED (02) - ENGINE

1

130100160004

CLUTCH ASSEMBLY

Besteht aus/Consists of/Compose de/Bestående af/È composto da 30 - 36

1шт.

2

130100160005

CLUTCH PLATE

1шт.

3

190003800480

SCREW,Hex, M8 x 95mm, Cl 8.8

M8x95-8.8

12шт.

4

190003311111

BALL BEARING

1шт.

30

NSS

NOT SOLD SEPARAT

1шт.

31

130100160705

CLUTCH PLATE

1шт.

32

130100160706

PLATE, THRUST

1шт.

33

130100160707

BELLEVILLE SPRING

1шт.

34

130100160708

PLATE, THRUST

1шт.

35

130100160709

LEVER

1шт.

36

130100160710

SET OF LEVERS

1шт.
