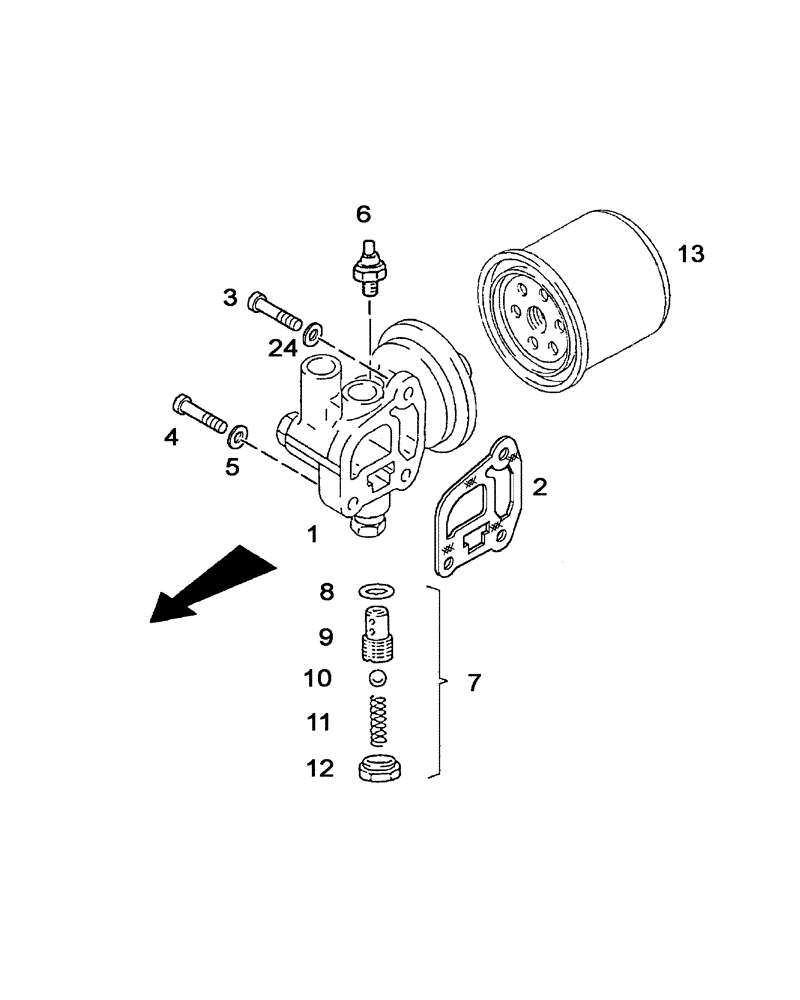

Запчасти Case IH C55 (02-22[01]) - OILFILTER AND COOLER / C55, C55A / C64, C64A, C70A ----> ..... (02) - ENGINE

1

130100070706

MOUNT

1шт.

2

130100070707

GASKET

1шт.

3

130100070712

SCREW,M10 x 30mm

1шт.

4

130100070713

SCREW,M10 x 40mm

2шт.

5

190003932025

SPRING-DISC

3шт.

6

DRUCKSCHALTER/SWITCH, PRESSURE/PRESSOSTAT/TRYKKONTAKT/PRESSOSTATO - Siehe Kapitel 04/See chapter 04/Voir chapitre 04/Se kapitel 04/Vedere capitolo 04

1шт.

7

130100070709

VALVE

Besteht aus/Consists of/Compose de/Bestående af/È composto da 8 - 12

1шт.

8

190003098029

SEAL

1шт.

9

130100070710

VALVE BODY

1шт.

10

190003330543

BALL,11mm OD

1шт.

11

130100070705

COMPRESSION SPRING

1шт.

12

130100070711

SCREW

1шт.

13

1409 070036

ENGINE OIL FILTER

1шт.

24

190003932025

SPRING-DISC

1шт.
