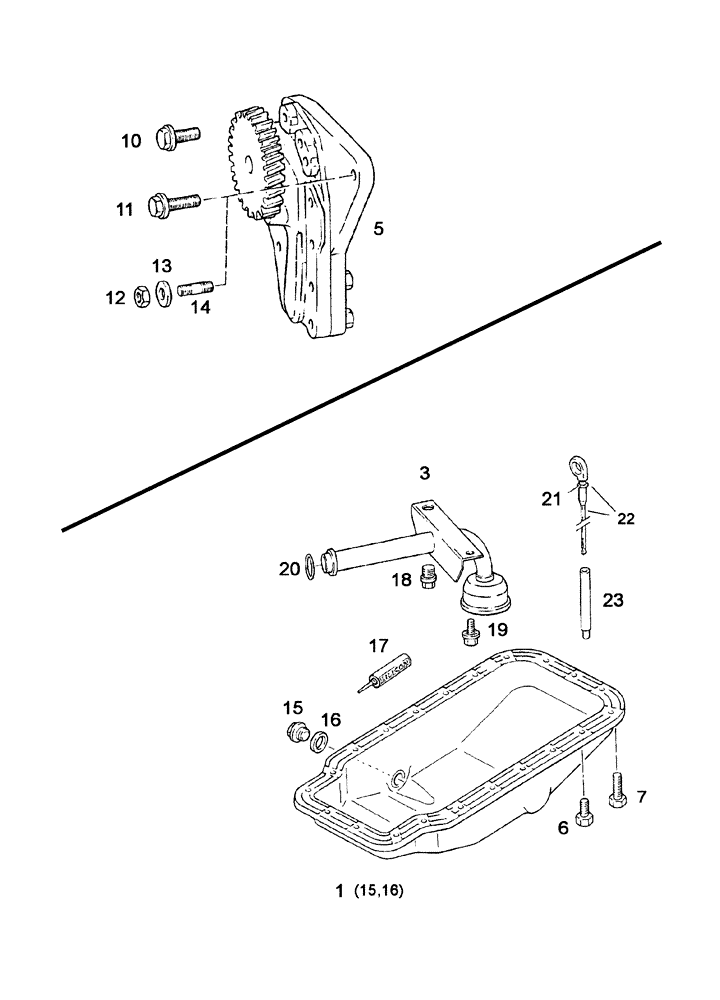

Запчасти Case IH C55 (02-20[01]) - LUBRICATING OIL PUMP - OIL PAN + DIPSTICK / 2WD (02) - ENGINE

1

130142150703

PAN, ENGINE OIL

PAN, OIL

1шт.

3

130142070701

LINE

1шт.

5

130100070708

PUMP, ENGINE OIL

1шт.

6

130142150702

CAPSCREW

7шт.

7

130142150701

SCREW

17шт.

10

130100050701

SCREW,M8 x 22mm, Cl 12.9

AM8x22-12.9

1шт.

11

130100070702

SCREW,M8 x 35mm, Cl 12.9

AM8x35-12.9

1шт.

12

130100010708

NUT

1шт.

13

130100010713

DISC

1шт.

14

190003813434

STUD

M8x25-8.8

1шт.

15

130100150703

SCREW

21шт.

16

130100150704

OIL SEAL

2шт.

17

190007990035

LOCTITE

1шт.

18

130100070714

SCREW,M16 x 1.5

1шт.

19

130100070703

SCREW,M8 x 16mm

1шт.

20

130100070701

SEAL

1шт.

21

130100150701

SEAL

1шт.

22

130142150704

DIPSTICK

Einschließlich/Includes/Avec/Inklusive/Compreso 21

1шт.

23

130100010729

PIPE

1шт.
