(02-18[01]) - CYLINDER HEAD AND GASKETS

Запчасти Case IH C55 (02-18[01]) - CYLINDER HEAD AND GASKETS (02) - ENGINE

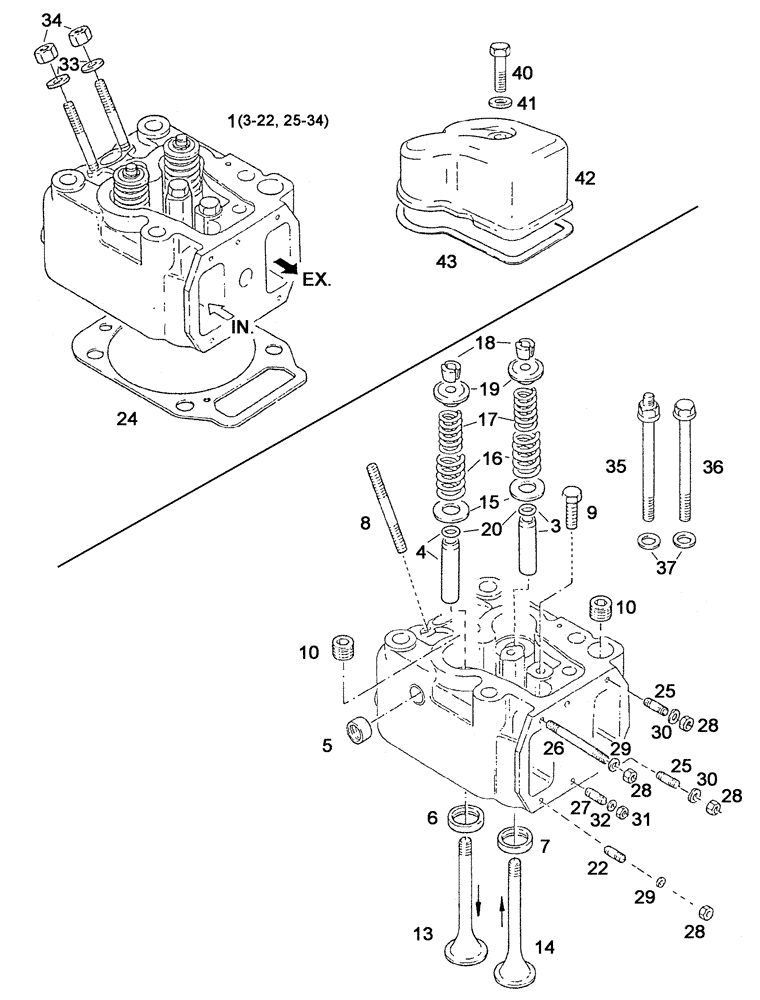

Схема запчастей Case IH C55 - (02-18[01]) - CYLINDER HEAD AND GASKETS (02) - ENGINE
5
30
14
43
22
9
36
41
28
10
16
13
8
25
24
18
35
30
15
10
7
37
1
29
20
25
28
6
4
40
32
29
42
26
3
28
17
27
19
28
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

130142040703

CYLINDER HEAD

Einschließlich/Includes/Avec/Inklusive/Compreso 3 - 22, 25 - 34

3шт.

1

130182040703

CYLINDER HEAD

Einschließlich/Includes/Avec/Inklusive/Compreso- 22, 25 - 34

3шт.

3

130100040706

VALVE

15,00mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

3

130100040713

VALVE

15,10mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

3

130100040715

VALVE

15,20mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

4

130100040707

VALVE

15,00mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

4

130100040714

VALVE

15,10mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

4

130100040712

VALVE

15,20mm, Einschließlich/Includes/Avec/Inklusive/Compreso 20

3шт.

5

190003961908

BLANK-OFF PLUG

B25

9шт.

6

130142040701

SEAT, VALVE

3шт.

6

130100040719

SEAT, VALVE

+0,2mm, Reparatursatz/Repair kit/Colis de reparation/Reparatursæt/Set di riparazione

3шт.

7

130100040716

SEAT, VALVE

3шт.

7

130100040720

SEAT, VALVE

+0,2mm, Reparatursatz/Repair kit/Colis de reparation/Reparatursæt/Set di riparazione

3шт.

8

190003813449

STUD

M8x40-8.8

6шт.

9

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

10

190003960008

SCREW,M22 x 1.5

M22x1,5

6шт.

13

130142050701

VALVE,ENGINE,INLET,S

VALVE INTAKE

3шт.

14

130142050702

VALVE, ENG EXHAUST,

VALVE EXHAUST

3шт.

15

130100040711

WASHER

6шт.

16

130100040703

COMPRESSION SPRING

6шт.

17

130100040702

COMPRESSION SPRING

6шт.

18

130100040710

VALVE POPPET

12шт.

19

130100040709

SPRING CUP

6шт.

20

130100040701

SEAL

6шт.

22

190003813532

STUD

M10x30-8.8

3шт.

24

130142040702

GASKET

1,4mm thk

3шт.

25

190003813543

STUD

M10x40-8.8

6шт.

26

190003813580

STUD

M10x100-8.8

3шт.

27

130100040718

STUD

3шт.

28

130100040725

NUT

M10

12шт.

29

130100020701

RING

6шт.

30

130100040708

WASHER

6шт.

31

130100040726

NUT

3шт.

32

130100010705

RING

3шт.

34

130100040724

NUT

M8

6шт.

35

130100010733

SCREW

2шт.

36

130100010732

BOLT

10шт.

37

130100010721

WASHER

12шт.

40

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

41

190003098009

RUBBER SEAL

A8X14-CU

3шт.

42

130100040704

VALVE COVER

3шт.

43

130100040705

GASKET

3шт.
