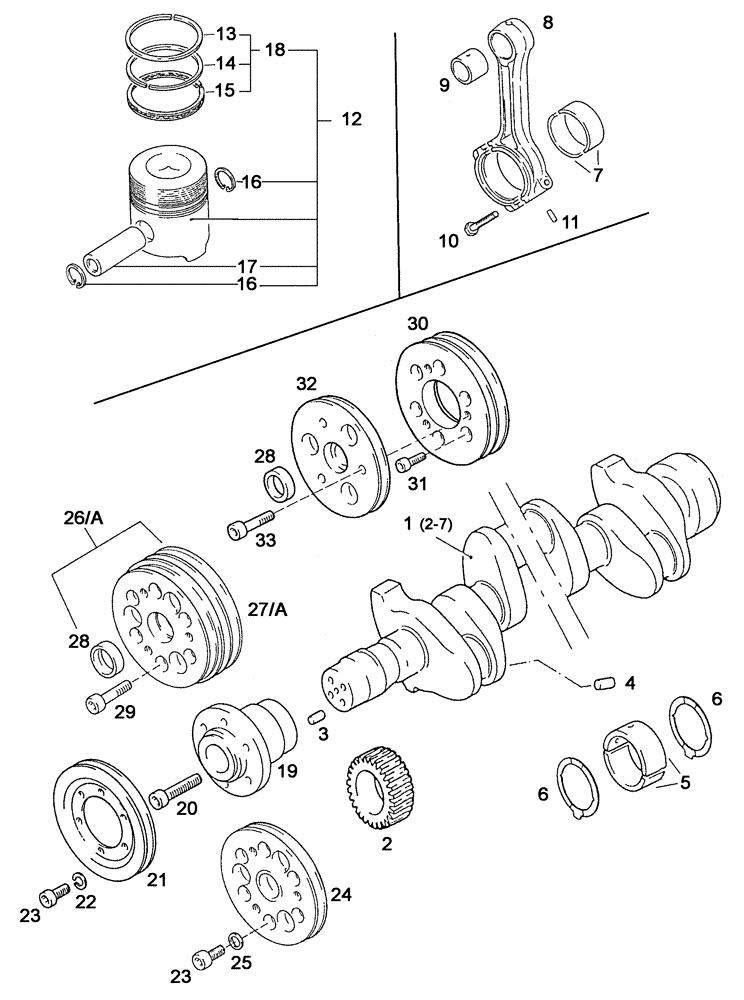

Запчасти Case IH C55 (02-16[01]) - CRANKSHAFT+ PULLEY - PISTONS+CONNECTING RODS (02) - ENGINE

1

130100020720

CRANKSHAFT

Einschließlich/Includes/Avec/Inklusive/Compreso 2 - 7

1шт.

2

130100020708

PINION

1шт.

3

190003909611

PIN, ROLL

4x16

1шт.

4

130100020702

PLUG

3шт.

5

130100010755

CRANKSHAFT BEARING

70,00mm

4шт.

5

130100010737

SET OF CONN ROD BRGS U/S

69,75mm

4шт.

5

130100010738

SET OF CONN ROD BRGS U/S

69,50mm

4шт.

5

130100010739

SET OF CONN ROD BRGS U/S

69,25mm

4шт.

5

130100010740

SET OF CONN ROD BRGS U/S

69,00mm

4шт.

6

130100010754

SEGMENT

3,43mm

2шт.

6

130100010701

SEGMENT

3,53mm

2шт.

6

130100010702

SEGMENT

3,63mm

2шт.

6

130100010711

SEGMENT

3,73mm

2шт.

7

130100030714

SET OF CONN ROD BRGS U/S

63,00mm

3шт.

7

130100030709

SET OF CONN ROD BRGS U/S

62,75mm

3шт.

7

130100030710

SET OF CONN ROD BRGS U/S

62,50mm

3шт.

7

130100030711

SET OF CONN ROD BRGS U/S

62,25mm

3шт.

7

130100030712

BEARING,CON.ROD

BEARING, CON. ROD , 62,00mm

3шт.

8

130100030706

ROD, CONNECTING

Einschließlich/Includes/Avec/Inklusive/Compreso 9 - 11

3шт.

9

130100030705

BEARING,CON.ROD

BEARING, CON. ROD

3шт.

10

130100030707

BOLT

6шт.

11

130100030713

PIN

3шт.

12

130142030703

PISTON ASSY.

Besteht aus/Consists of/Compose de/Bestående af/È composto da 13-17 - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 130142030701

3шт.

13

130100030703

PISTON RING

3шт.

14

130100030702

PISTON RING

3шт.

15

130100030704

PISTON RING

3шт.

16

130100030701

SNAP RING

6шт.

17

130142030702

LARGE PIN

PIN, LARGE

3шт.

18

130100030708

PISTON RING SET

Besteht aus/Consists of/Compose de/Bestående af/È composto da de 13 - 15

3шт.

19

130100020709

HUB

1шт.

20

190003862826

SCREW,M16 x 50mm, Cl 10.9

M16x50-10.9

4шт.

21

130100020705

PULLEY

1шт.

22

130100020701

RING

6шт.

23

190003862515

SCREW,M10 x 16mm, Cl 10.9

M10x16-10.9

6шт.

24

130100020008

PULLEY

1шт.

25

130100020011

RING

6шт.

26

130100020007

PULLEY

----> ..... / Besteht aus/Consists of/Compose de/Bestående af/È composto da 27, 28 - Siehe nächste Seite(n)/See next page(s)/Voir page(s) suivante(s)

1шт.

26a

130100020010

PULLEY

..... ----> / Besteht aus/Consists of/Compose de/Bestående af/È composto da de 27, 28

1шт.

27

130100020005

PULLEY

----> .....

1шт.

27a

130100020009

PULLEY

..... ---->

1шт.

28

137700290080

BACK-UP RING

32x40; 10

1шт.

29

190003862540

SCREW,M10 x 45mm, Cl 10.9

M10x45-10.9

6шт.

30

140100020001

PULLEY

1шт.

31

190003862528

SCREW,M10 x 25mm, Cl 10.9

M10x25-10.9

6шт.

32

140100020002

PULLEY

Einschließlich/Includes/Avec/Inklusive/Compreso 28

1шт.

33

190003860290

SCREW,M12 x 40mm, Cl 10.9

M12x40-10.9

3шт.
