(02-15[01]) - FLYWHEEL AND HOUSING

Запчасти Case IH C55 (02-15[01]) - FLYWHEEL AND HOUSING (02) - ENGINE

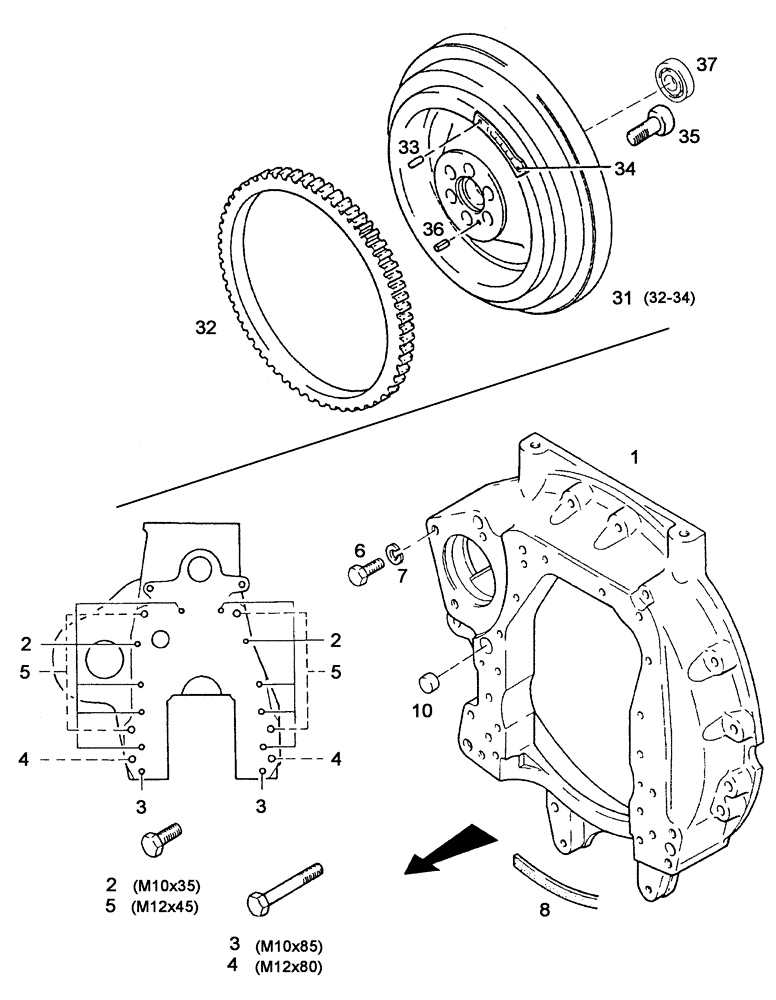

Схема запчастей Case IH C55 - (02-15[01]) - FLYWHEEL AND HOUSING (02) - ENGINE
2
34
10
4
37
5
35
1
5
33
5
31
2
4
7
32
36
4
3
3
2
8
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

130100010751

HOUSING

1шт.

2

130100010747

SCREW

10шт.

3

130100010748

SCREW

2шт.

4

130100010749

SCREW,M12 x 80mm, Cl 12.9

2шт.

5

130100010750

SCREW,M12 x 45mm, Cl 12.9

4шт.

6

190003802527

SCREW,Hex, M10 x 30mm, Cl 8.8

M10x30-8.8

3шт.

7

130100020701

RING

3шт.

8

130100010752

RUBBER

1шт.

10

130100010753

PLUG

1шт.

31

130100020721

FLYWHEEL WITH GEAR

Einschließlich/Includes/Avec/Inklusive/Compreso 32 - 34

1шт.

32

130100020719

SLEWING RING

1шт.

33

130100020722

PIN

1шт.

34

130100020723

DECAL

1шт.

35

190003862814

SCREW,M16 x 40mm, Cl 10.9

M16X40-10.9

6шт.

36

190003909626

PIN, ROLL

6x12

1шт.

37

KUGELLAGER/BEARING, BALL/ROULEMENT À BILLES/KUGLELEJE/CUSCINETTO A SFERE - Siehe Kupplung/See clutch/Voir embrayage/Se kobling/Vedere frizione

1шт.
