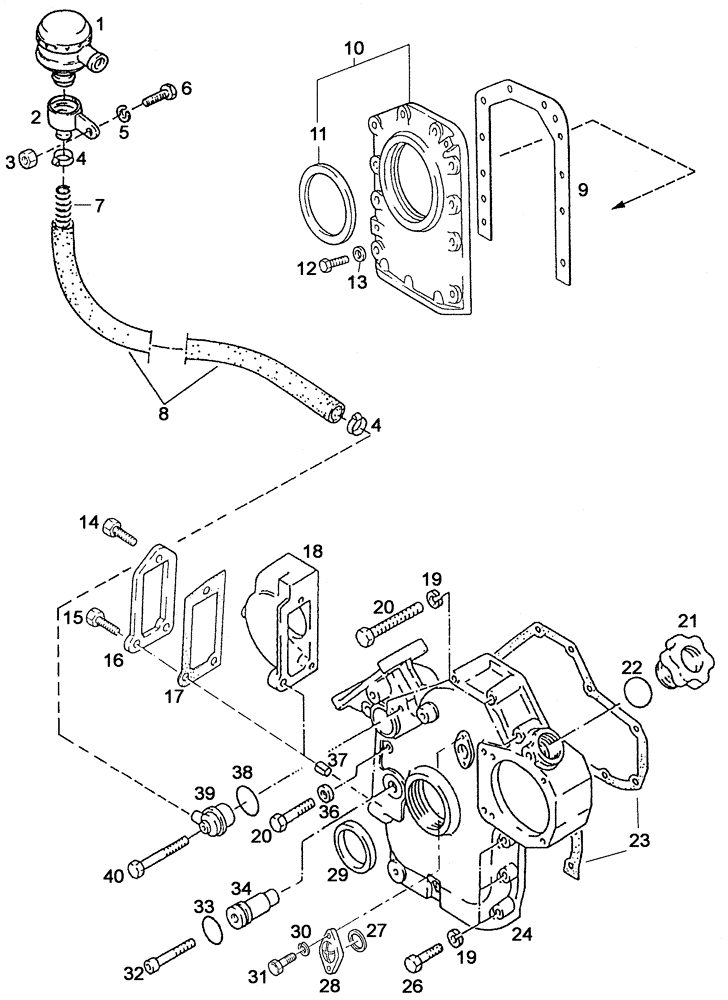

Запчасти Case IH C55 (02-14[01]) - CYLINDER BLOCK FRONT COVER (02) - ENGINE

1

130100010734

OIL EXTRACTOR

1шт.

2

130100010735

ADAPTER

1шт.

3

43362

NUT,M8 x 1.25, Cl 10

1шт.

4

190003989340

CLAMP

22/29

2шт.

5

130100010705

RING

1шт.

6

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

7

130100010736

COMPRESSION SPRING

1шт.

8

130100010706

HOSE

1шт.

9

130100010726

GASKET

1шт.

10

130100010725

COVER

Einschließlich/Includes/Avec/Inklusive/Compreso 54

1шт.

11

130100010728

GASKET

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

13

190003932023

SPRING WASHER

B8

10шт.

14

190003802527

SCREW,Hex, M10 x 30mm, Cl 8.8

M10x30-8.8

1шт.

15

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

16

130100010731

COVER

1шт.

17

130100010717

GASKET

1шт.

18

GEHÄUSE/HOUSING/CARTER/HUS/SCATOLA - Siehe Hydraulikpumpeneinbau/See hydraulic pump built-in/Voir pompe hydraulique-incorporation/Se hydraulikpumpe-installation/Vedere pompa-idraulica montaggio

1шт.

19

130100010705

RING

11шт.

20

190003800467

SCREW,M8 x 75mm, Cl 8.8

M8x75-8.8

6шт.

21

130100010722

PLUG

1шт.

22

1614050124

O-RING,1mm Width

1шт.

23

130100010716

GASKET

1шт.

24

130100010715

COVER

1шт.

26

190003800441

SCREW,Hex, M8 x 45mm, Cl 8.8

M8x45-8.8

5шт.

27

130100010703

SEAL

1шт.

28

130100010720

COVER

1шт.

29

130100010727

SEAL

1шт.

30

190003932023

SPRING WASHER

B8

2шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

32

190003862572

SCREW,M10 x 90mm, Cl 10.9

M10x90-10.9

1шт.

33

130100010707

SEAL

2шт.

34

130100010730

BUSHING

1шт.

36

190003098008

GASKET

A8x11,5

1шт.

37

130100010744

PIN

2шт.

38

130100010704

SEAL

1шт.

39

130100010709

BREATHER

1шт.

40

190003800038

SCREW,Hex, M6 x 90mm, Cl 8.8

M6x90-8.8

1шт.
