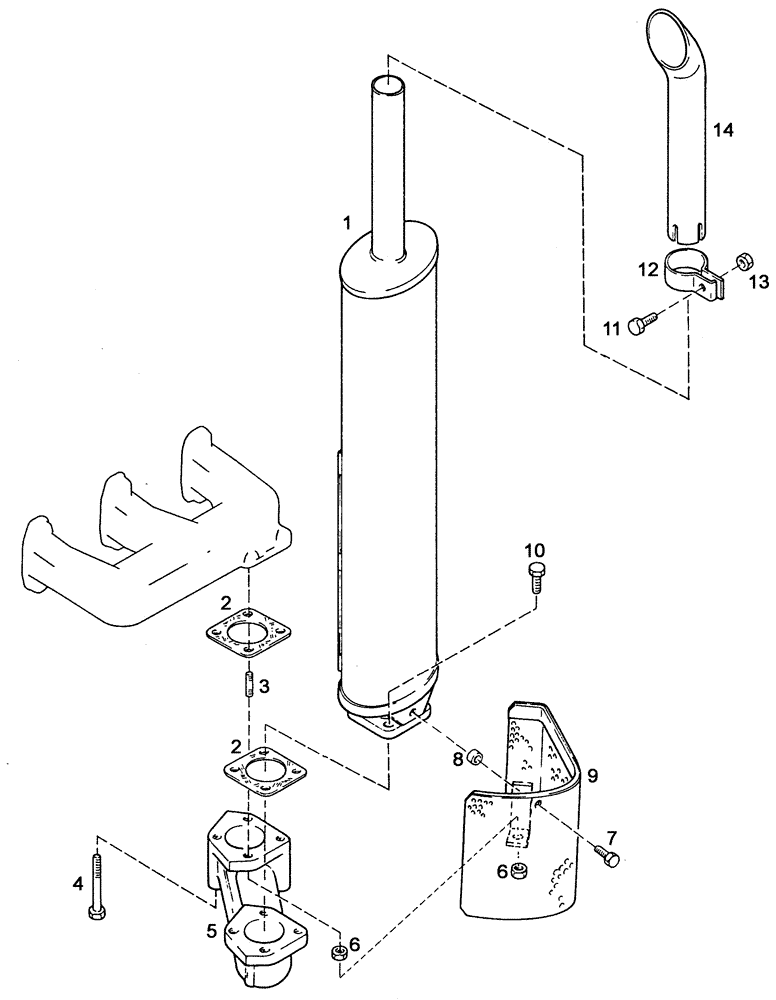

Запчасти Case IH C55 (02-09[01]) - EXHAUST SYSTEM (02) - ENGINE

1

1-33-154-112

MUFFLER

Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-33-154-014

1шт.

2

131100110011

SEAL

2шт.

3

190003810085

STUD

M10X23-8.8-C3P

1шт.

4

190003800377

SCREW,Hex, M10 x 85mm, Cl 8.8

M10x85-8.8-C3P

3шт.

5

130100540003

ELBOW

1шт.

6

190003888470

NUT

VM10-8-C3P

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

193730010

SPACER

Ø10x16, a=10

1шт.

9

1-33-154-118

PROTECTION PLATE

1шт.

10

190003802521

SCREW,Hex, M10 x 25mm, Cl 8.8

M10X25-8.8-C3P

4шт.

11

190003800376

SCREW,Hex, M8 x 30mm, Cl 8.8

M8x30-8.8

1шт.

12

190003990273

PIPE CLAMP

DIN 71555 -48,5-LA

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

1шт.

14

1-33-154-021

TUBE

1шт.
