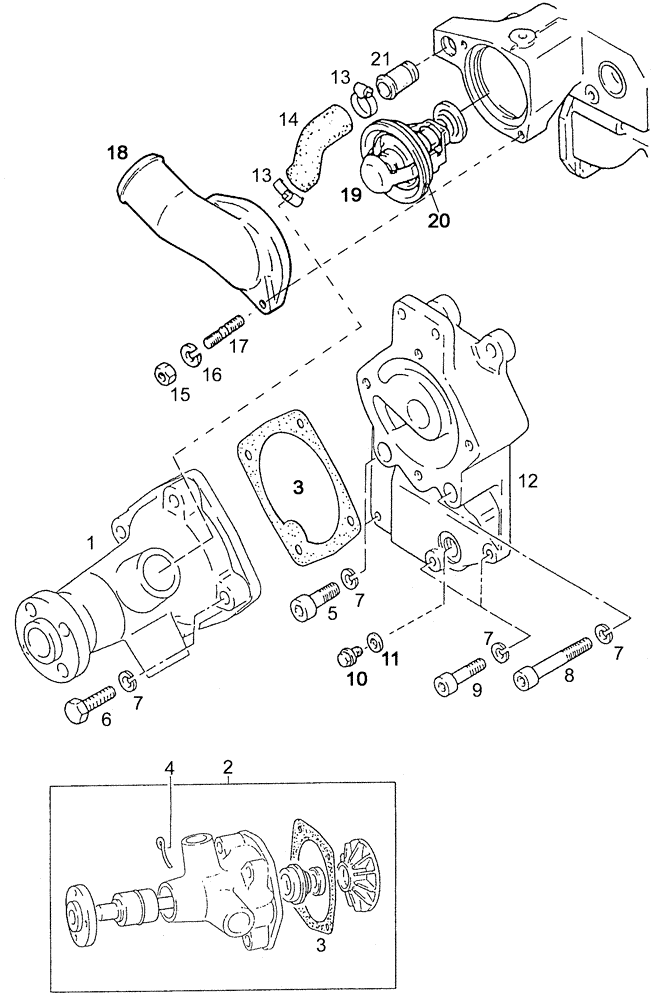

Запчасти Case IH C55 (02-03[01]) - WATER PUMP - THERMOSTAT (02) - ENGINE

1

130100060703

PUMP, WATER

Besteht aus/Consists of/Compose de/Bestående af/È composto da 2 - 4

1шт.

2

130100060702

KIT, WATER PUMP REPA

Ohne Gehäuse/Without housing/Sans carter/Uden hus/Senza scatola

1шт.

3

130100060701

GASKET

1шт.

4

130100060704

CIRCLIP

1шт.

5

190003862430

SCREW,M8 x 25mm, Cl 10.9

M8x25-10.9

2шт.

6

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

7

130100010705

RING

10шт.

8

190003860183

SCREW,M8 x 65mm, Cl 10.9

M8x65-10.9

2шт.

9

190003862439

SCREW,M8 x 35mm, Cl 10.9

M8x35-10.9

2шт.

10

190003962038

PLUG,Hex Wash Hd, M22 x 1.5

A-M22x1,5

1шт.

11

190003098026

SEAL

A22x27-CU

1шт.

12

130100060707

HOUSING

1шт.

13

190003989301

CLAMP

25/35

2шт.

14

130100190705

HOSE

1шт.

15

190003871258

NUT

M8x1-10

2шт.

16

130100010705

RING

2шт.

17

190003811429

STUD

M8x30-8.8

2шт.

18

130100190704

COVER

1шт.

19

130100061001

THERMOSTAT

85 C

1шт.

19

130100060706

THERMOSTART

75 C

1шт.

20

130100061002

GASKET

1шт.

21

130100190702

TUBE

1шт.
