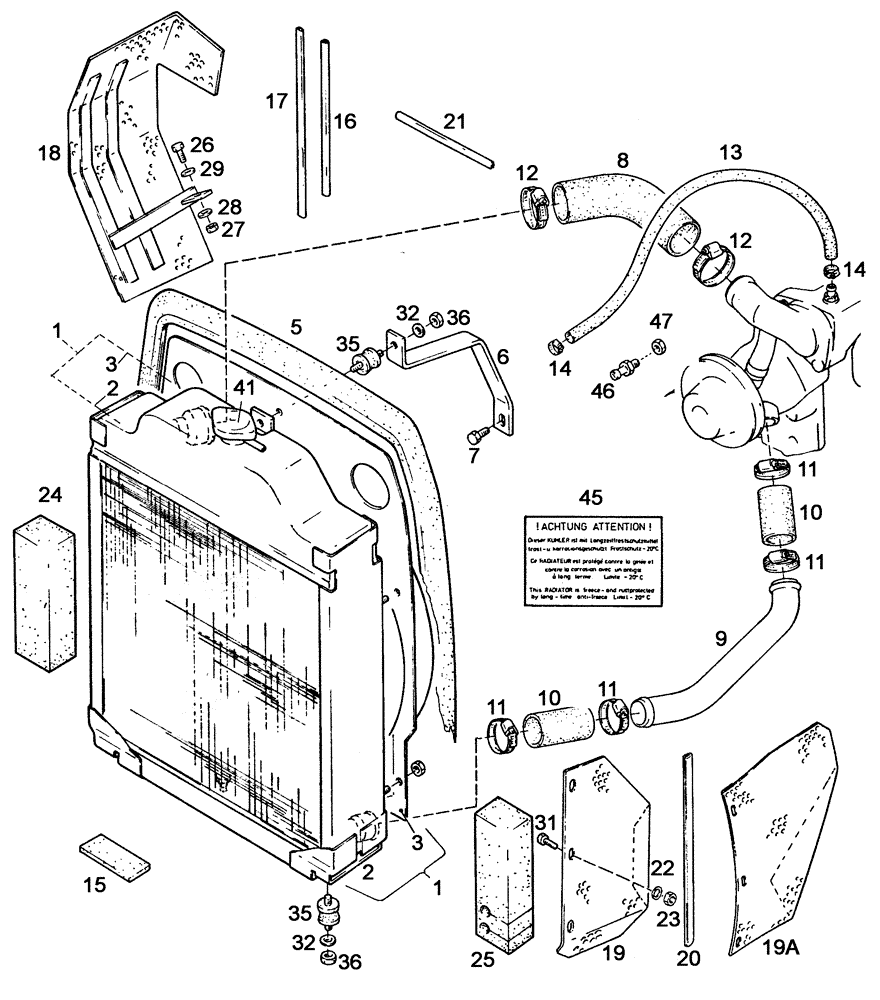

Запчасти Case IH C55 (02-01[01]) - RADIATOR AND CONNECTIONS (02) - ENGINE

1

1-33-153-002

COOLER ASSY.

Besteht aus/Consists of/Compose de/Bestående af/È composto da 2, 3

1шт.

2

1-33-153-074

COOLER ASSY.

1шт.

3

1-33-153-085

DUCT

1шт.

5

1-33-153-091

SEAL

1шт.

6

1-33-153-102

SUPPORT

1шт.

7

190003802415

SCREW

M8x18-8.8

1шт.

8

1-33-153-027

LARGE HOSE,50.00 mm ID x 126.00 mm

HOSE,LARGE

1шт.

9

1-33-153-127

RIGID TUBE

1шт.

10

161000060224

HOSE

38x48

2шт.

11

190003989305

COLLAR CLAMP

32/48

4шт.

12

190003989308

CLAMP

44/60

2шт.

13

190003169623

HOSE

Ø8x15mm, Länge/Length/Longuer/Længde/Lunghezza 370mm

1шт.

14

190003989300

CLAMP

13/16

2шт.

15

133700530099

SEALING STRIP

40x100x4

1шт.

16

190003171689

PROFILE

K-8343, Länge/Length/Longuer/Længde/Lunghezza 265mm

1шт.

17

190003171689

PROFILE

K-8343, Länge/Length/Longuer/Længde/Lunghezza 325mm

1шт.

18

1-33-153-136

PROTECTIVE COVER

Rechts/Right/Droite/Højre/Destra

1шт.

19

1-33-153-130

PROTECTIVE COVER

----> ..... - Links/Left/Gauche/Venstre/Sinistro

1шт.

19a

1-33-153-142

PROTECTION PLATE

..... ----> - Links/Left/Gauche/Venstre/Sinistro

1шт.

20

190003171689

PROFILE

K-8343, Länge/Length/Longuer/Længde/Lunghezza 325mm

1шт.

21

190003171689

PROFILE

K-8343, Länge/Length/Longuer/Længde/Lunghezza185mm

1шт.

22

190003936101

WASHER

6,4-140HV-A3C

3шт.

23

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

24

1-33-153-033

SEAL

1шт.

25

1-33-153-045

SEAL

1шт.

26

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

5шт.

28

190003936101

WASHER

6,4-140HV-A3C

5шт.

29

190003930251

DISC

A6,4-140HV-A3C

2шт.

31

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

32

190003930261

WASHER

A8,4

6шт.

35

1-33-153-023

BEARING,30mm OD x 25mm

5шт.

36

43362

NUT,M8 x 1.25, Cl 10

5шт.

41

1-33-753-001

RADIATOR CAP

1шт.

45

133700530209

DECAL

1шт.

46

130100110004

ADAPTER

1шт.

47

190003098010

SEAL

A10x13,5-CU

1шт.
