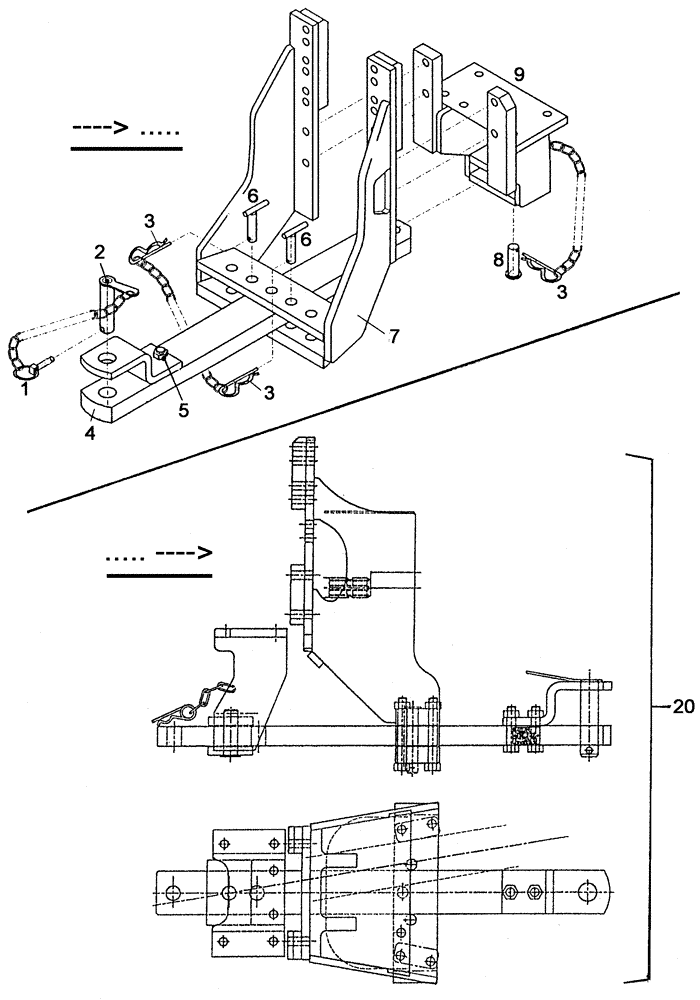

Запчасти Case IH C55 (09C-18[01]) - DRAWBAR STORAGE (09) - CHASSIS/ATTACHMENTS

155700930002

DRAWBAR, SWINGING

Besteht aus/Consists of/Compose de/Bestående af/È composto da 1 - 9 / ----> .....

1шт.

1

155700930711

LINCH PIN

1шт.

2

155700930710

LARGE PIN

PIN, LARGE

1шт.

3

190003990024

STAPLE

4-A3C

2/1шт.

4

155700930709

DRAWBAR, SWINGING

1шт.

5

190003832736

SCREW,M16 x 70mm

M16X70-MU

2шт.

6

155700930702

PIN

2шт.

7

155700930712

GUIDE

1шт.

8

155700930707

PIVOT PIN

1шт.

9

155700930706

CONSOLE

1шт.

20

1-32-393-052

DRAWBAR, SWINGING

..... ---->

1шт.

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

4шт.

190003800305

SCREW,M14 x 60mm, Cl 10.9

M14x60-10.9

4шт.

190003800753

SCREW,Hex, M14 x 75mm, Cl 10.9

M14X 75-10.9-A3C

6шт.
