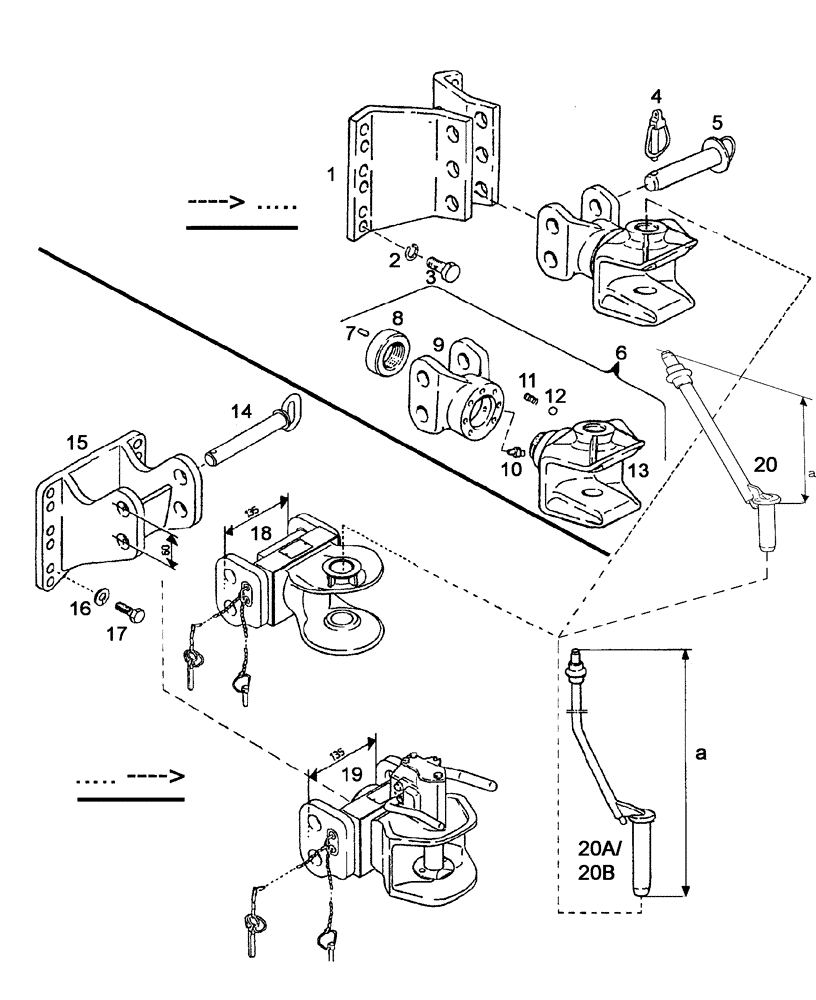

Запчасти Case IH C55 (09C-15[01]) - TRAILER HITCH WIDE (09) - CHASSIS/ATTACHMENTS

1

135700930051

HITCH BRACKET

1шт.

2

190003931162

WASHER, LOCK

A14-FST-A3C

6шт.

3

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

6шт.

4

180740235

LARGE PIN

PIN, LARGE

2шт.

5

135700930061

PIN

2шт.

6

1295930003

COUPLING

Besteht aus/Consists of/Compose de/Bestående af/È composto da 9 - 15

1шт.

7

190003904248

PIN

6x10-ST

1шт.

8

1288930122

RING

1шт.

9

1288930209

CRADLE

1шт.

10

190003963112

LUBE NIPPLE

AM8x1-A3F

1шт.

11

11800240023

SPRING

7шт.

12

190003330183

BALL

10mm-V

7шт.

13

1295930002

HITCH BRACKET

1шт.

14

155700930018

LARGE PIN

PIN, LARGE

2шт.

15

133700930110

DRAWBAR SUPPORT

Breit/Broad/Large/Bred/Largo

1шт.

16

190003931162

WASHER, LOCK

A14

6шт.

17

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

6шт.

18

133700930111

HITCH ASSY, TRAILER

Breit/Broad/Large/Bred/Largo

1шт.

19

1-32-293-007

HITCH ASSY

Breit/Broad/Large/Bred/Largo - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 133700930112

1шт.

20

133700930081

PIN

a=350mm

1шт.

20a

133700930080

PIN

a=530mm

1шт.

20b

155700930011

PIN

a=717mm - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 137700930042

1шт.
