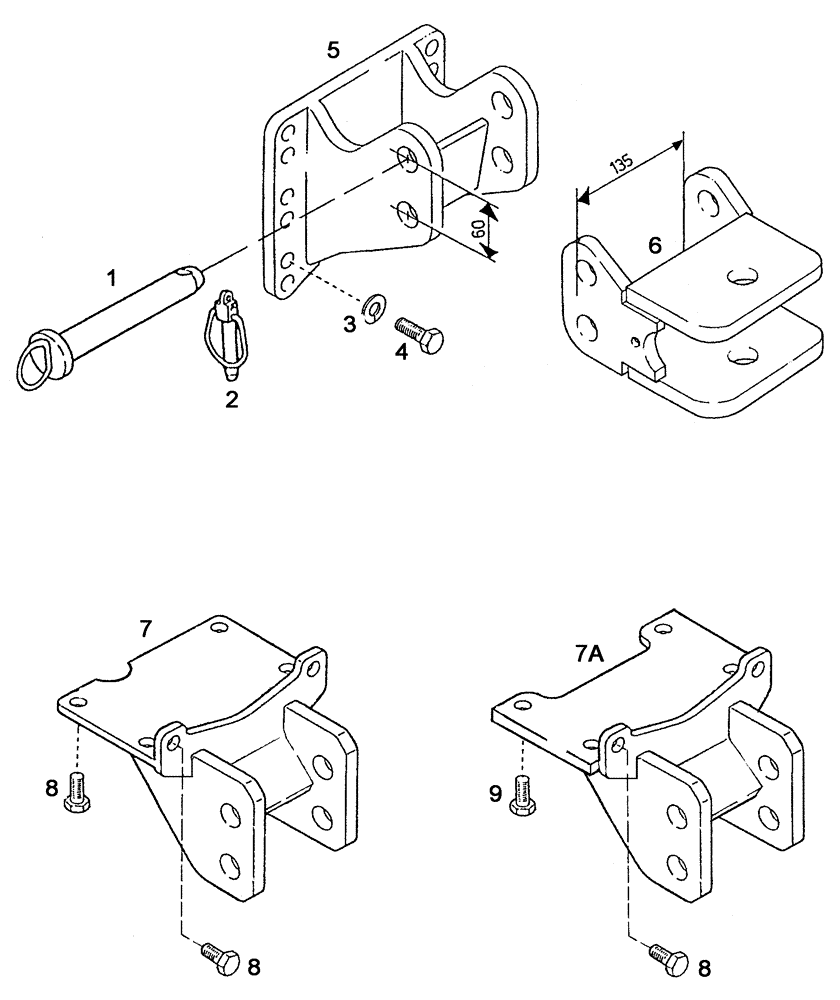

Запчасти Case IH C55 (09C-11[01]) - HITCH FOR ITALY (09) - CHASSIS/ATTACHMENTS

1

135700930061

PIN

2шт.

2

180740235

LARGE PIN

PIN, LARGE

2шт.

3

190003931162

WASHER, LOCK

A14

6шт.

4

11115631

BOLT,Hex, M14 x 35, 10.9, Full Thd

6шт.

5

1-32-293-001

DRAWBAR SUPPORT

Oben/Over/En 'haut/Ovenfor/Superiore - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 135700930054

1шт.

6

1-32-293-003

HITCH ASSY

a=80mm

1шт.

7

1-32-293-002

DRAWBAR SUPPORT

Unten/Below/En bas/Nedenfor/Inferiore, ---->. . . .

1шт.

7a

1-32-293-009

DRAWBAR SUPPORT

Unten/Below/En bas/Nedenfor/Inferiore, . . . .----> - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-32-293-002

1шт.

8

190003802714

SCREW,Hex, M14 x 25mm, Cl 8.8

2/6шт.

9

190003802728

SCREW,M14 x 30mm, Cl 10.9

M14x30 10.9

4шт.
