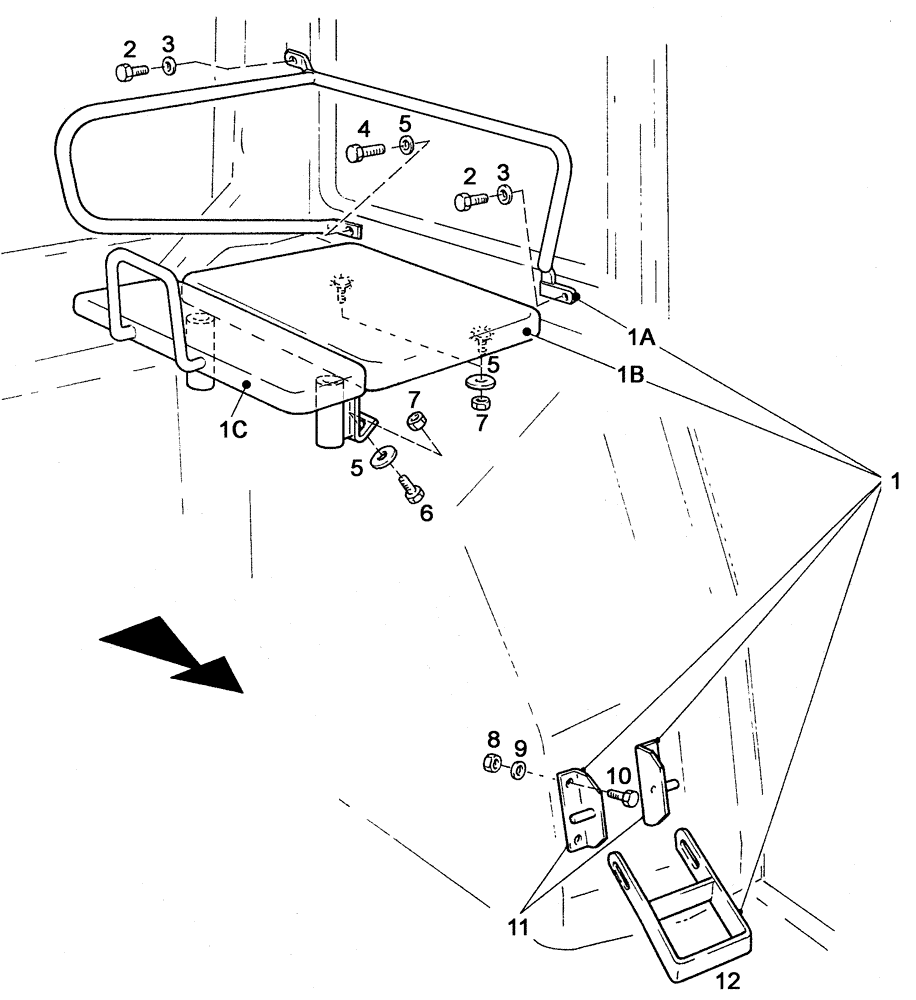

Запчасти Case IH C55 (09B-28[02]) - SEAT CO-WORKER / ..... ----> (09) - CHASSIS

1

1-34-552-210

INSTRUCTIONAL SEAT

Einschließlich/Includes/Avec/Inklusive/Compreso 11, 12 - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-552-100, 1-34-552-101, 1-34-551-200

1шт.

1a

1-34-552-202

BACK

1шт.

1b

1-34-552-203

SUPPORT

1шт.

1c

1-34-552-211

INSTRUCTIONAL SEAT

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

3

190003930261

WASHER

A8,4

3шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

5

190003936103

WASHER

8,4-140HV-A3C-DIN9021

4шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

190003840048

SCREW,M8 x 20mm

AM8X20-ST-A2

2шт.

7

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

9

190003932612

DISC

R6,6-100HV-A3

4шт.

10

190003825331

SCREW,M6 x 20mm

M6X20

4шт.

11

1-34-552-103

ANGLE

1шт.

12

1-34-552-104

STEP

1шт.
