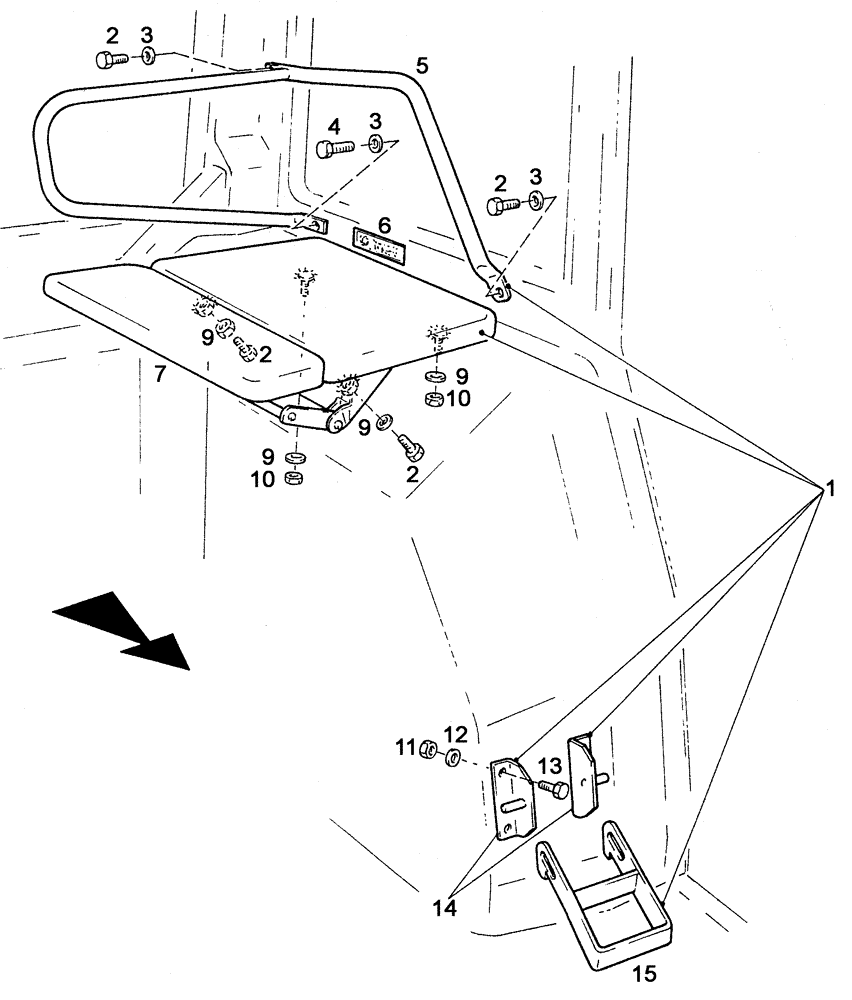

Запчасти Case IH C55 (09B-28[01]) - SEAT CO-WORKER / ----> ..... (09) - CHASSIS

1

1-34-552-100

SEAT

Besteht aus/Consists of/Compose de/Bestående af/È composto da 5, 7, 14, 15

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

3

190003930261

WASHER

A8,4

3шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

5

1-34-552-102

BRACKET

1шт.

6

1-34-552-001

LARGE PLATE

PLATE, LARGE

1шт.

7

1-34-552-101

SEAT

1шт.

9

190003936103

WASHER

8,4-140HV-A3C-DIN9021

4шт.

10

43362

NUT,M8 x 1.25, Cl 10

2шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

12

190003932612

DISC

R6,6-100HV-A3

4шт.

13

190003825331

SCREW,M6 x 20mm

M6X20

4шт.

14

1-34-552-103

ANGLE

1шт.

15

1-34-552-104

STEP

1шт.

190003840048

SCREW,M8 x 20mm

AM8X20-ST-A2

2шт.
