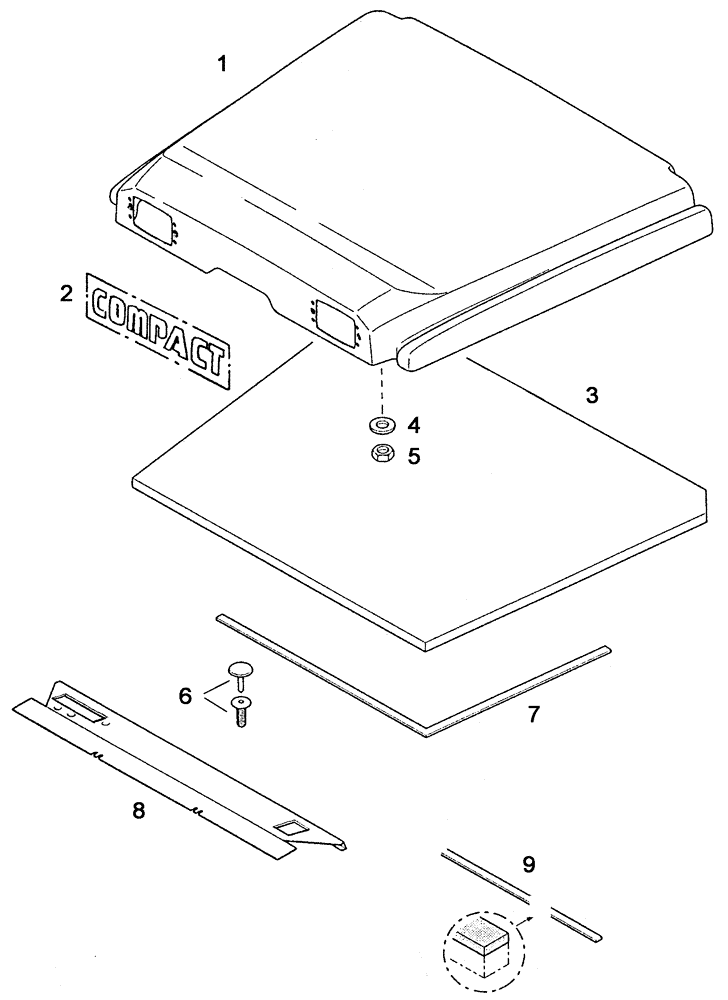

Запчасти Case IH C55 (09B-04[01]) - ROOF, LOW (09) - CHASSIS

1

1-34-519-170

ROOF

Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-519-450, 1-34-519-500

1шт.

2

1-34-577-312

DECAL

1шт.

3

1-34-519-110

ROOF LINING

Oben/Over/En 'haut/Ovenfor/Superiore

1шт.

4

190003936103

WASHER

8,4-140HV-A3C-DIN9021

1шт.

5

825-1408

NUT,M8, Cl 8

4шт.

6

190003172953

RIVET

SW-9005

2шт.

7

190003179043

STRIP-GASKET

l=3900mm

1шт.

8

1-34-519-451

TOP COVER

Vorne/Front/Avant/Forrest/Davanti

1шт.

9

190003129481

RUBBER SEAL

l=1500mm

1шт.
