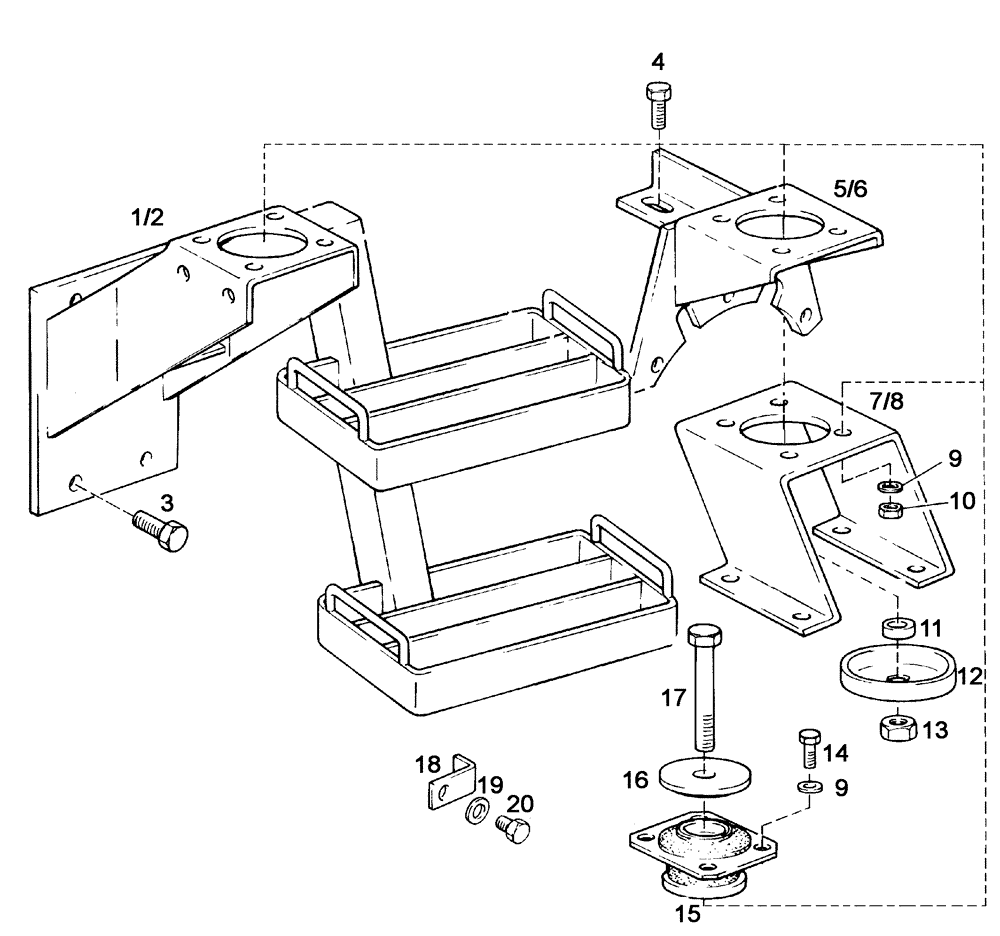

Запчасти Case IH C55 (09B-03[01]) - SUPPORT (09) - CHASSIS

1

1-34-541-201

STEP

Vorne/Front/Avant/Forrest/Anteriore - Rechts/Right/Droite/Højre/Destra

1шт.

2

1-34-541-202

STEP

Vorne/Front/Avant/Forrest/Anteriore - Links/Left/Gauche/Venstre/Sinistro

1шт.

3

190003802724

SCREW,Hex, M14 x 30mm, Cl 8.8

M14x30-8.8-A3C

12шт.

3

280854

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

4/8шт.

4

190003802622

SCREW,Hex, M12 x 25mm, Cl 8.8

M12x25-8.8-A3C

2шт.

4

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

5

1-34-541-203

SUPPORT

C55/A, Hinten/Rear/Derriére/Bagest/Posteriore - Rechts/Right/Droite/Højre/Destra

1шт.

6

1-34-541-204

BEARING

C55/A, Hinten/Rear/Derriére/Bagest/Posteriore - Links/Left/Gauche/Venstre/Sinistro

1шт.

7

1-34-541-213

BEARING

C64/A, C70A, Hinten/Rear/Derriére/Bagest/Posteriore - Rechts/Right/Droite/Højre/Destra

1шт.

8

1-34-541-214

BEARING

C64/A, C70A, Hinten/Rear/Derriére/Bagest/Posteriore - Links/Left/Gauche/Venstre/Sinistro

1шт.

9

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

8,4-140HV-A3C

32шт.

10

190003888451

NUT

VM8-8-A2C

16шт.

11

1-99-907-056

SPACER

4шт.

12

1-34-141-090

BACK-UP RING

4шт.

13

190003888459

NUT

VM16x1,5-A3C, h=14

4шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

15

1-34-141-099

ELASTIC MOUNTING

2шт.

16

116020430018

DISC

4шт.

17

190003803863

SCREW,Hex, M16 x 1.5 x 100mm, Cl 8.8

M16x1,5x100-8.8-A3C

4шт.

18

1-99-974-236

ANGLE

2шт.

19

190003935017

DISC

16-ST-A3C

2шт.

20

190003802503

SCREW,Hex, M10 x 12mm, Cl 8.8

2шт.
