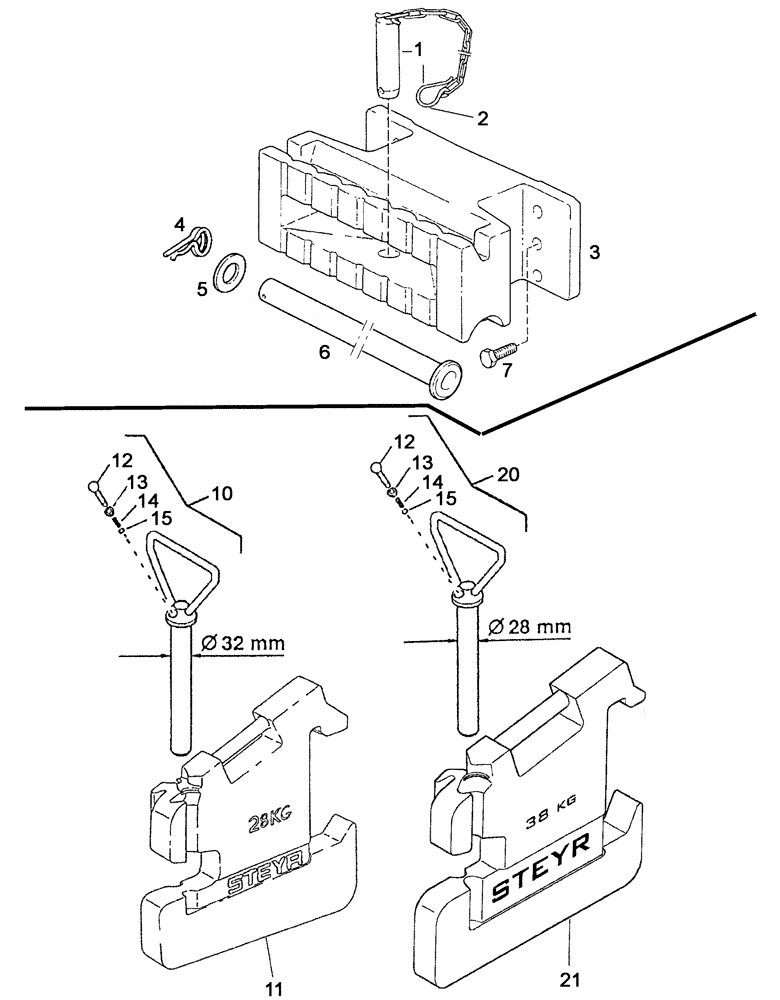

Запчасти Case IH C55 (09A-06[01]) - FRONT WEIGHTS (09) - CHASSIS

1

1-33-161-162

PIN

Einschließlich/Includes/Avec/Inklusive/Compreso 2

1шт.

2

190003990009

SPRING CLIP

1шт.

3

1-33-161-161

WEIGHT CARRIER

1шт.

4

1328360C1

SPRING CLIP

1шт.

5

1328361C1

WASHER

1шт.

6

1-33-161-155

TUBE,431 mm Length

1шт.

7

190003800836

SCREW,M16 x 60mm, Cl 8.8

M16x60-8.8

1шт.

10

1-33-161-006

LARGE PIN

PIN, LARGE , Einschließlich/Includes/Avec/Inklusive/Compreso 12 - 15 - 32mm

1шт.

11

1-33-161-002

WEIGHT

28kg, 32mm

1шт.

12

1-33-161-072

DETENT

1шт.

13

1-33-161-074

SCREW,Hex, M20 x 10mm

1шт.

14

1-33-161-073

SPRING

1шт.

15

190003933046

LOCKING RING

10x1

1шт.

20

1-33-161-171

PIN

PIN, LARGE , Einschließlich/Includes/Avec/Inklusive/Compreso 12 - 15 - 28mm

1шт.

21

1-33-161-170

WEIGHT

38kg, 28mm - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-33-161-001

1шт.
