(09A-03[01]) - FRONT MUDGUARD, 4WD

Запчасти Case IH C55 (09A-03[01]) - FRONT MUDGUARD, 4WD (09) - CHASSIS

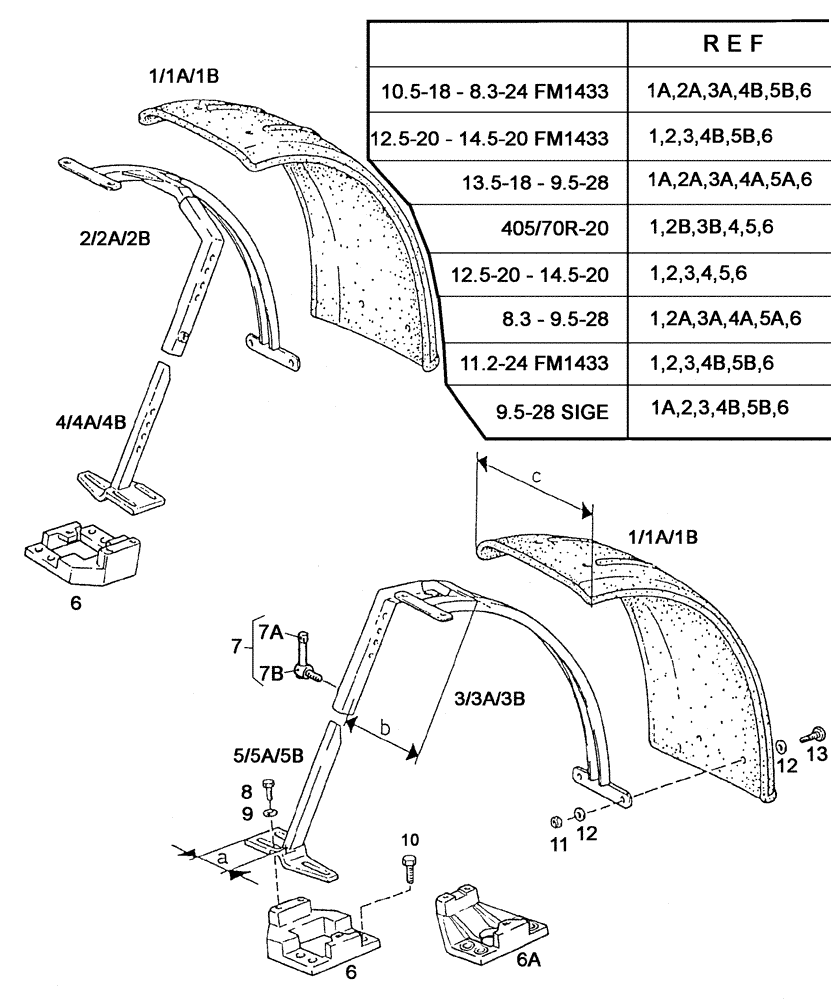

Схема запчастей Case IH C55 - (09A-03[01]) - FRONT MUDGUARD, 4WD (09) - CHASSIS
12
1b
7a
4b
4a
7b
3a
3b
6
9
5
4
2a
1
13
11
5b
1
2
12
7
6a
6
1b
5a
10
3
1a
8
2b
1a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1-34-623-175

FRONT FENDER

c = 355mm - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-031, 1-34-623-075

2шт.

1a

1-34-623-173

FRONT FENDER

c = 265mm - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-032, 1-34-623-073

2шт.

1b

1-34-623-087

FRONT FENDER

c = 410mm

2шт.

2

1-34-623-066

SUPPORT ASSY.

b = 230mm, Rechts/Right/Droite/Højre/Destra - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-015

1шт.

2a

1-34-623-062

SUPPORT ASSY.

b = 185mm, Rechts/Right/Droite/Højre/Destra - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-010

1шт.

2b

1-34-623-064

SUPPORT ASSY.

b = 283mm, Rechts/Right/Droite/Højre/Destra - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-040

1шт.

3

1-34-623-065

SUPPORT ASSY.

b = 230mm, Links/Left/Gauche/Venstre/Sinistro - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-014

1шт.

3a

1-34-623-061

SUPPORT ASSY.

b = 185mm, Links/Left/Gauche/Venstre/Sinistro - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-011

1шт.

3b

1-34-623-063

SUPPORT ASSY.

b = 283mm, Links/Left/Gauche/Venstre/Sinistro - Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 1-34-623-041

1шт.

4

1-34-623-021

PLATE

a=63mm, Rechts/Right/Droite/Højre/Destra

1шт.

4a

1-34-623-023

PLATE

a=35mm, Rechts/Right/Droite/Højre/Destra

1шт.

4b

1-34-623-035

PLATE

PLATE, LARGE , a=108mm, Rechts/Right/Droite/Højre/Destra

1шт.

5

1-34-623-022

PLATE

a=63mm, Links/Left/Gauche/Venstre/Sinistro

1шт.

5a

1-34-623-024

PLATE

a=35mm, Links/Left/Gauche/Venstre/Sinistro

1шт.

5b

1-34-623-036

PLATE

a=108mm, Links/Left/Gauche/Venstre/Sinistro

1шт.

6

1-34-623-025

FIXING PLATE

SIGE

2шт.

6a

1-33-141-032

ANCHOR

2шт.

7

1-34-623-018

ARRESTER

2шт.

7a

NSS

NOT SOLD SEPARAT

2шт.

7b

NSS

NOT SOLD SEPARAT

2шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

9

190003930282

DISC

A13

6шт.

10

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

8шт.

11

190003888451

NUT

VM8-8

8шт.

12

190003936103

WASHER

8,4-140HV-A3C-DIN9021

8шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.
