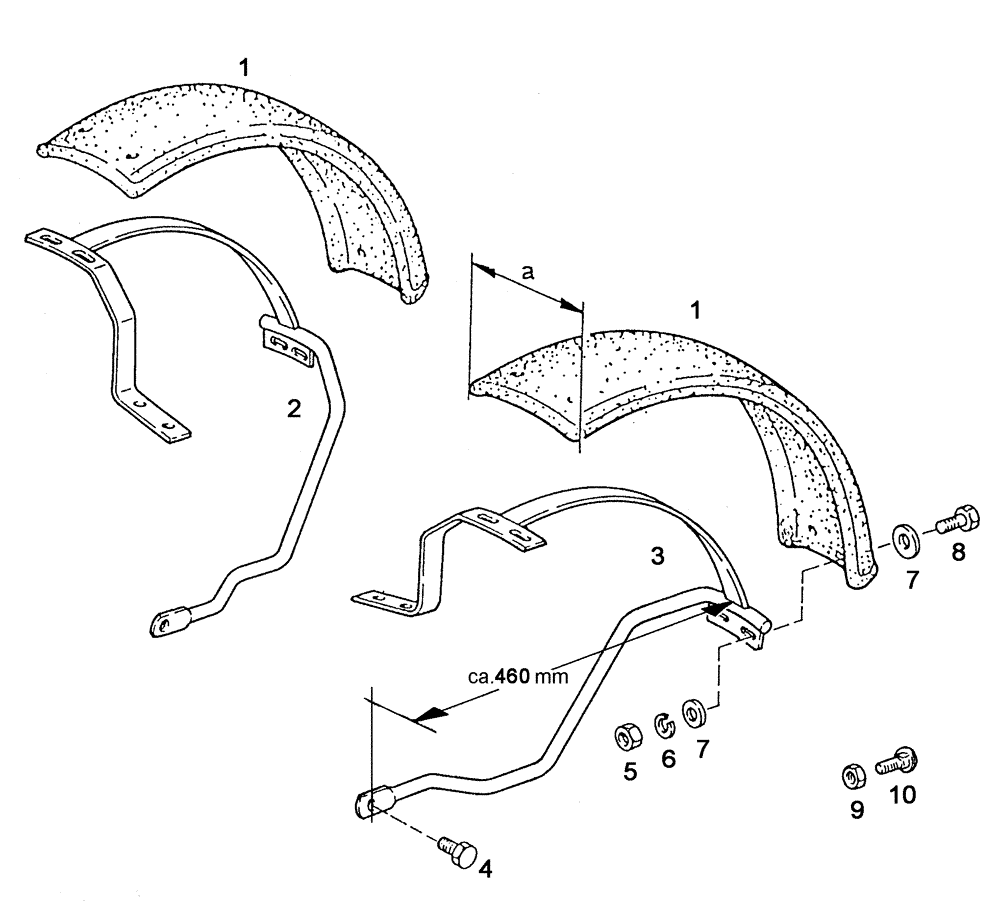

Запчасти Case IH C55 (09A-02[01]) - FRONT MUDGUARD, 2WD (09) - CHASSIS

1

1-34-223-003

FENDER

a = 225mm

2шт.

2

1-34-523-021

SUPPORT

Rechts/Right/Droite/Højre/Destra

1шт.

3

1-34-523-022

SUPPORT

Links/Left/Gauche/Venstre/Sinistro

1шт.

4

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

8шт.

6

190003931102

WASHER, LOCK

A8

8шт.

7

190003936103

WASHER

8,4-140HV-A3C-DIN9021

16шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

9

100016

NUT,M10 x 1.5, Cl 8

8шт.

10

190003834521

SCREW,M10 x 20mm

M10X20-MU

4шт.
