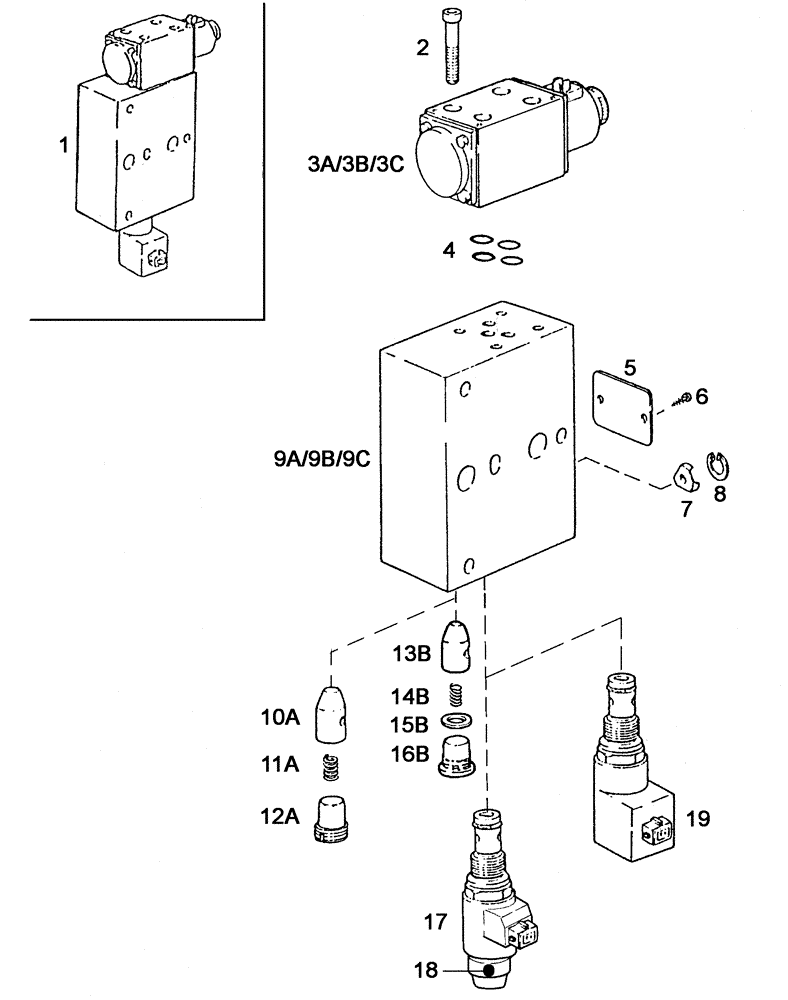

Запчасти Case IH C55 (08-25[01]) - SINGLEACTING CONTROL VALVE - ELECTRICAL / ..... ----> (08) - HYDRAULICS

1

155700730301

VALVE, CONTROL

----> ....., Besteht aus/Consists of/Compose de/Bestående af/È composto da 2, 4 - 7, 19, 9A - 12A, 3B

1шт.

1

155700730346

VALVE, CONTROL

----> ....., Besteht aus/Consists of/Compose de/Bestående af/È composto da 2, 4 - 8, 19, 3B, 9B, 13B - 16B

1шт.

1

1-32-373-026

HYD VALVE SECTION

..... ---->, Ersetzt/Replace/Remplace 155700730103, 155700730301, 155700730346 - Besteht aus/Consists of/Compose de/Bestående af/È composto da 2, 4 - 8, 17, 13B - 16B, 3C, 9C

1шт.

2

190003860243

SCREW,M5 x 45mm, Cl 10.9

M5x45-10.9-A2C

8шт.

3a

155700753048

VALVE

1шт.

3b

155700733066

CLAMP BRACKET

1шт.

3c

155700753069

SOLENOID VALVE

1шт.

4

1-32-773-095

SEAL KIT

1шт.

5

155700733051

NAMEPLATE

1шт.

6

155700733047

RIVET

2шт.

7

139900750052

BUTTERFLY

1шт.

8

190003934063

CIRCLIP

17x1

1шт.

9a

155700733003

VALVE BLOCK

1шт.

9b

155700733098

VALVE BLOCK

1шт.

9c

155700733172

VALVE BLOCK

1шт.

10a

1397730221

PISTON

1шт.

11a

1288750061

COMPRESSION SPRING

1шт.

12a

155700733072

LARGE PIN

PIN, LARGE

1шт.

13b

1397730221

PISTON

1шт.

14b

1288750061

COMPRESSION SPRING

1шт.

15b

190003098020

SEALING RING

A18x22-CU

1шт.

16b

155700733099

SCREW

1шт.

17

155700753077

SOLENOID

Einschließlich/Includes/Avec/Inklusive/Compreso 18

1шт.

18

1-32-773-094

CAP

1шт.

19

139900753002

VALVE

1шт.
