(08-22[01]) - SUPPLEMENTARY CONTOL UNIT, DOUBLE ACTING - MECHANICAL WITH STOP VALVES A+B

Запчасти Case IH C55 (08-22[01]) - SUPPLEMENTARY CONTOL UNIT, DOUBLE ACTING - MECHANICAL WITH STOP VALVES A+B (08) - HYDRAULICS

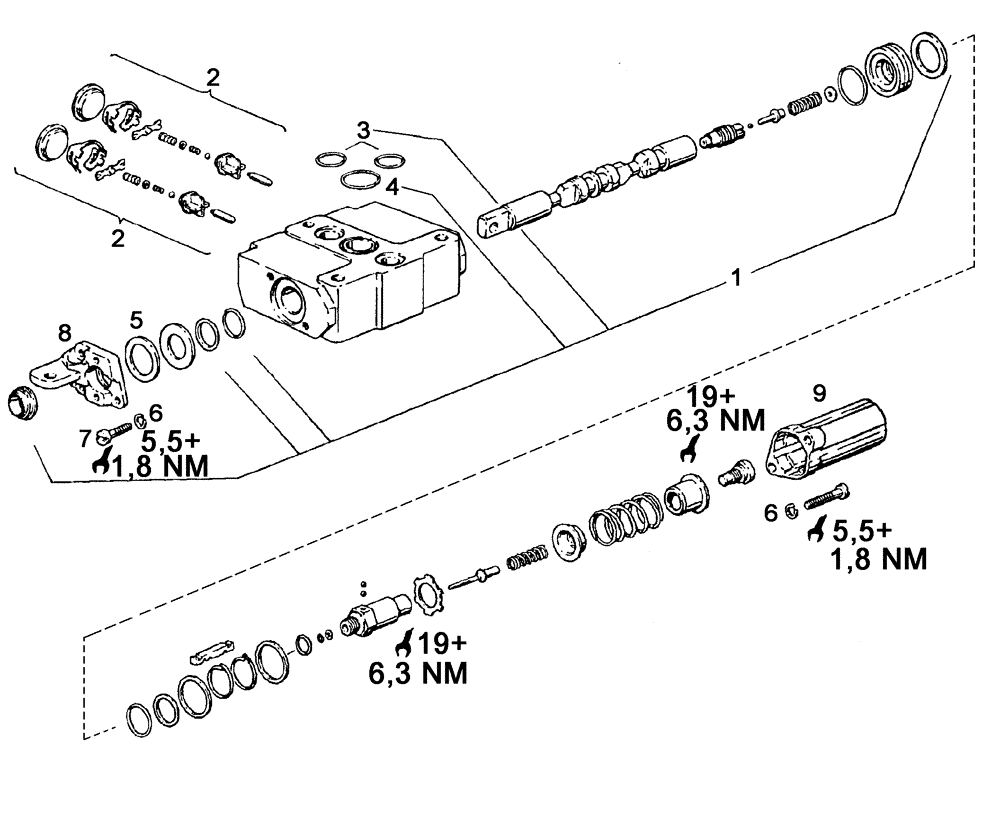

Схема запчастей Case IH C55 - (08-22[01]) - SUPPLEMENTARY CONTOL UNIT, DOUBLE ACTING - MECHANICAL WITH STOP VALVES A+B (08) - HYDRAULICS
7
5
6
6
4
8
1
9
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

155700730233

HYD VALVE SECTION

Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 155700730101

1шт.

1

155700730706

GASKET KIT

1шт.

2

155700730707

SET OF PARTS

2шт.

3

155700730705

O-RING

18x2,5

2шт.

4

155700730704

O-RING

26x2,5

1шт.

5

155700730702

DISC

1шт.

6

190003931082

WASHER

A6

4шт.

7

190003822317

SCREW,M6 x 12mm, Cl 4.8

M6x12-8.8-A2R

2шт.

8

155700730708

LID

2шт.

9

155700730742

PROTECTIVE COVER

1шт.
