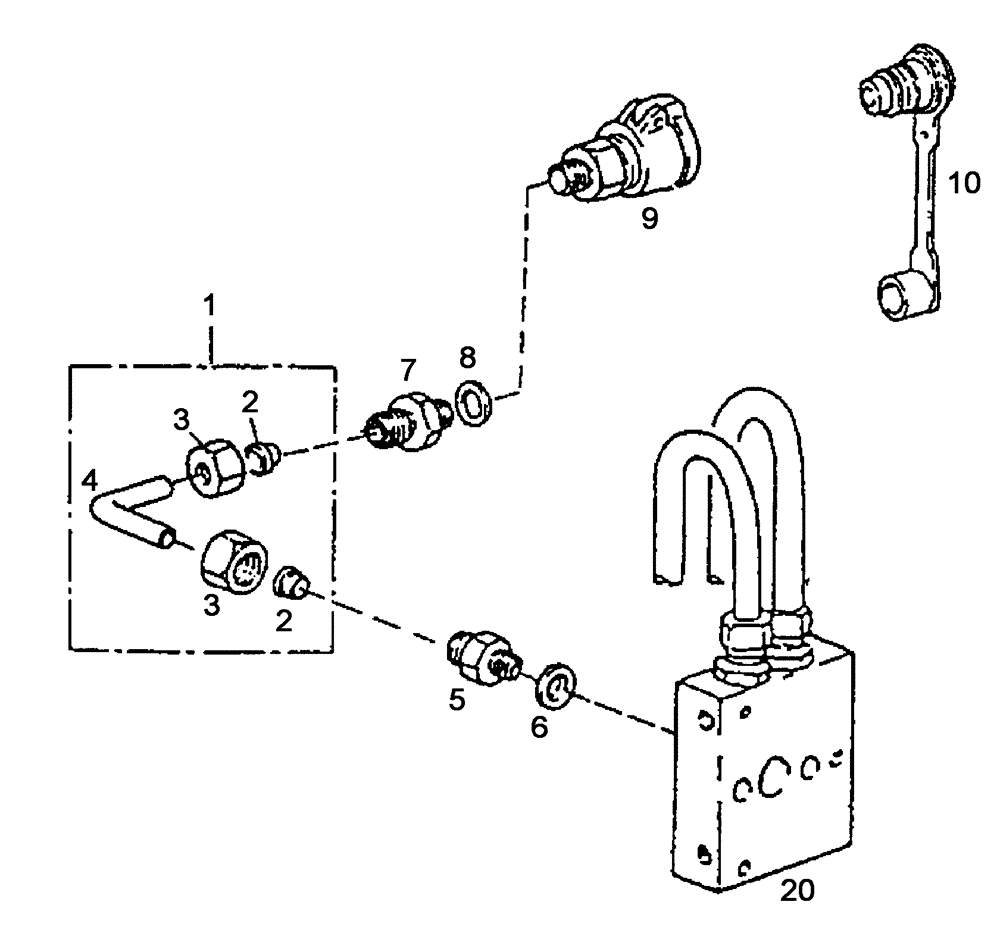

Запчасти Case IH C55 (08-14[01]) - PRESSURELESS RETURN (08) - HYDRAULICS

1

133700732564

RETURN PIPE

Besteht aus/Consists of/Compose de/Bestående af/È composto da 2 - 4

1шт.

2

190003559562

OLIVE

L15-ST-A3C

2шт.

3

190003559515

NUT

AL15-A3C

2шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

190003559494

HYD CONNECTOR

L15-M-ST-A3C, M18 x 1./M22 x 1.5

1шт.

6

190003098020

SEALING RING

A18 x 22-CU

1шт.

7

180327030007

PIPE UNION NUT

M22 x 1.5/M22 x 1.5

1шт.

8

190003098026

SEAL

A22 x 27-CU

1шт.

9

133700732653

SPLINED COUPLING

1шт.

10

1288730249

SPLINED COUPLING

1шт.

20

HYDRAULIKPUMPE/HYDRAULIC PUMP/POMPE HYDRAULIQUE/HYDRAULIKPUMPE/POMPA IDRAULICA - Siehe Kapitel 02/See chapter 02/Voir chapitre 02/Se kapitel 02/Vedere capitolo 02

1шт.
