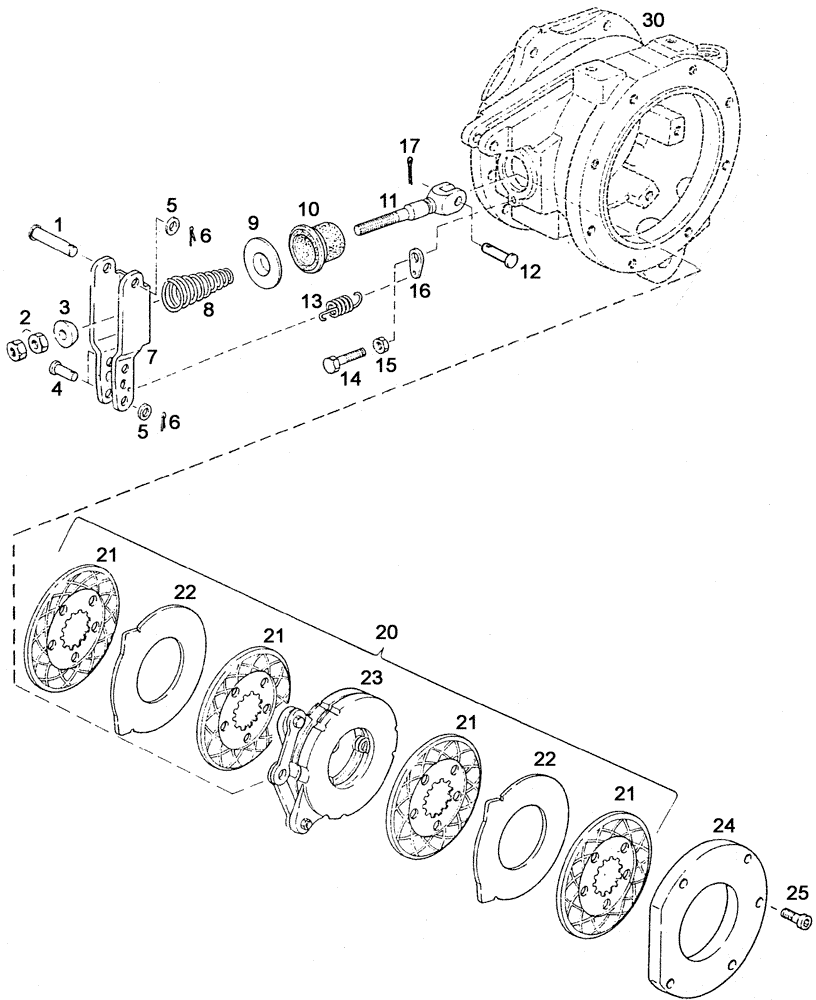

Запчасти Case IH C55 (07-04[01]) - REAR WHEEL BRAKE (07) - BRAKES

1

190003900229

PIN

12H11x75x70

2шт.

2

337475

NUT,M12, Cl 10

4шт.

3

133700340104

DISC

2шт.

4

190003903206

LARGE PIN

PIN, LARGE , 12H11x45x40

4шт.

5

190003930282

DISC

A13

6шт.

6

190003920321

PIN, SPLIT (COTTER)

PIN, COTTER , 4x20

6шт.

7

153700340007

BRAKE LEVER

Ersetzt/Replaces/Remplace/Udskiftet/Sostituisce 153700340017

2шт.

8

133700340105

COMPRESSION SPRING

2шт.

9

133700340101

COVER

2шт.

10

133700340103

SEAL PROTECTION

2шт.

11

133700340086

ROD

2шт.

12

133700340090

LARGE PIN

PIN, LARGE

2шт.

13

1395340127

TENSION SPRING

2шт.

14

190003802451

SCREW,Hex, M8 x 50mm, Cl 8.8

M8x50-8.8

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

1188570073

SHIN

2шт.

17

190003920143

PIN, SPLIT (COTTER)

PIN, COTTER , 2x20

2шт.

20

133700340063

BRAKE ASSY.

Besteht aus/Consists of/Compose de/Bestående af/È composto da 21 - 23

2шт.

21

133700340106

BRAKE DISC

8шт.

22

133700340107

DISC

4шт.

23

133700340108

PLATE, THRUST

2шт.

24

133700330102

COVER

2шт.

25

190003860177

SCREW,M12 x 35mm, Cl 8.8

M12x35-8.8

10шт.

30

BREMSGEHÄUSE/BRAKE HOUSING/CARTER DE FREIN - Siehe Kapitel 06/See chapter 06/Voir chapitre 06/Se kapitel 06/Vedere capitolo 06

1шт.
