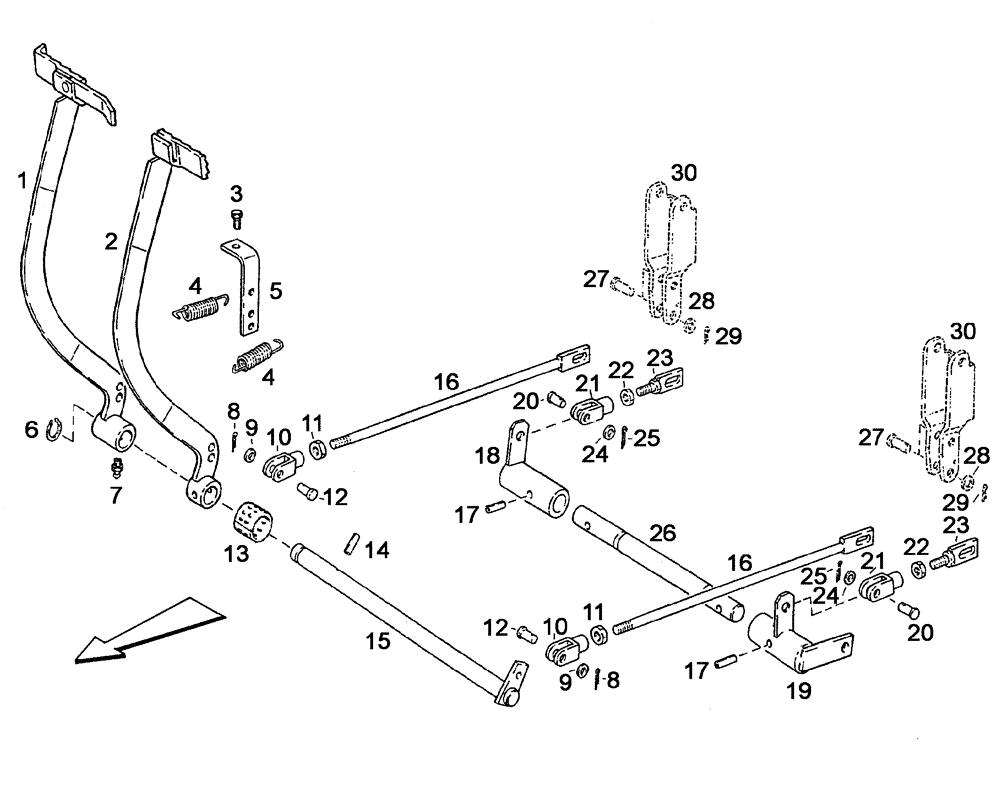

Запчасти Case IH C55 (07-03[01]) - BRAKE PEDALS - BRAKE CONTROL-MECH. (07) - BRAKES

1

1-33-135-092

BRAKE LEVER

Rechts/Right/Droite/Højre/Destra

1шт.

2

1-33-135-091

BRAKE LEVER

Links/Left/Gauche/Venstre/Sinistro

1шт.

3

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

1680230008

SPRING

2шт.

5

1-33-135-114

ANGLE

1шт.

6

190003933141

LOCKING RING

28x1,5

1шт.

7

190003963112

LUBE NIPPLE

AM8x1-A3F

1шт.

8

190003920321

PIN, SPLIT (COTTER)

PIN, COTTER , 4x20-ST-A4C

2шт.

9

190003930282

DISC

A13-140HV-A3C

2шт.

10

190003964448

YOKE

G12x24-A3C

2шт.

11

337475

NUT,M12, Cl 10

2/1шт.

12

190003903221

LARGE PIN

PIN, LARGE , 12H11x35x29-ST-A3C

2шт.

13

1288210051

BUSHING

2шт.

14

190003904080

PIN

8x40-ST

1шт.

15

133700350245

SHAFT

1шт.

16

133700350239

ROD

2шт.

17

190003904275

PIN

10x45-ST

2шт.

18

131700350020

HUB

Rechts/Right/Droite/Højre/Destra

1шт.

19

131700350019

HUB

Links/Left/Gauche/Venstre/Sinistro

1шт.

20

190003903645

LARGE PIN

PIN, LARGE , 10H11x28x24-ST-A3C

2шт.

21

190003964436

YOKE

G10x20-A3C

2шт.

22

100016

NUT,M10 x 1.5, Cl 8

2шт.

23

133700350248

ROD

2шт.

24

190003930271

DISC

A10,5-140HV-A3C

4шт.

25

190003920217

PIN, SPLIT (COTTER)

PIN, COTTER , 3,2x16-ST-A4C

4шт.

26

133700350086

SHAFT

1шт.

27

190003903206

LARGE PIN

PIN, LARGE , 12H11x45x40-ST-A3C

4шт.

28

190003930282

DISC

A13-140HV-A3C

8шт.

29

190003920321

PIN, SPLIT (COTTER)

PIN, COTTER , 4x20-ST-A4C

6шт.

30

BREMSHEBEL/BRAKE LEVER/LEVIER DE FREIN - Siehe nächste Seite(n)/See next page(s)/Voir page(s) suivante(s)/Se næste side(r)/Vedere pagin(a/e) seguent(e/i)

2шт.
