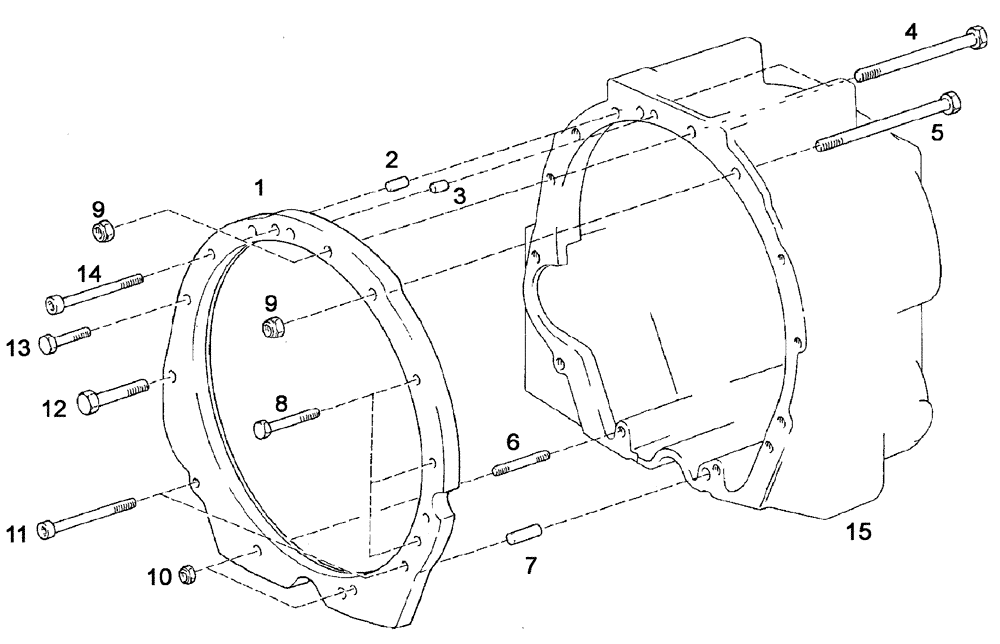

Запчасти Case IH C55 (06-01[01]) - ENGINE MOUNTING (06) - POWER TRAIN

1

1-33-121-007

LARGE PLATE

PLATE, LARGE

1шт.

2

190003901605

DOWEL

12m6x28

1шт.

3

190003901604

DOWEL

12m6x20

1шт.

4

190003800438

SCREW,Hex, M12 x 180mm, Cl 10.9

M12x180-10.9

2шт.

5

190003800200

CAPSCREW,Hex, M12 x 190mm, Cl 10.9

M12x190-10.9

1шт.

6

190003813562

STUD

M10x75-8.8

2шт.

7

190003900230

PIN

12m6x45

1шт.

8

190003800571

SCREW,Hex, M10 x 80mm, Cl 8.8

M10x80-8.8

3шт.

9

832-41312

NUT,M12 x 1.75, Cl 10

3шт.

10

190003888452

LOCK NUT,M10, Class 8

VM10-8

2шт.

11

190003860217

SCREW,M10 x 125mm, Cl 8.8

M10x125-8.8

2шт.

12

190003800659

SCREW,Hex, M12 x 80mm, Cl 8.8

M12x80-8.8

1шт.

13

190003802549

SCREW,M10 x 55mm, Cl 8.8

M10x55-8.8

1шт.

14

190003862584

SCREW,M10 x 120mm, Cl 8.8

M10x120-8.8

1шт.

15

GEHÄUSE/HOUSING/CARTER/HUS/SCATOLA - Siehe nächste Seite(n)/See next page(s)/Voir page(s) suivante(s)/Se næste side(r)/Vedere pagin(a/e) seguent(e/i)

1шт.
