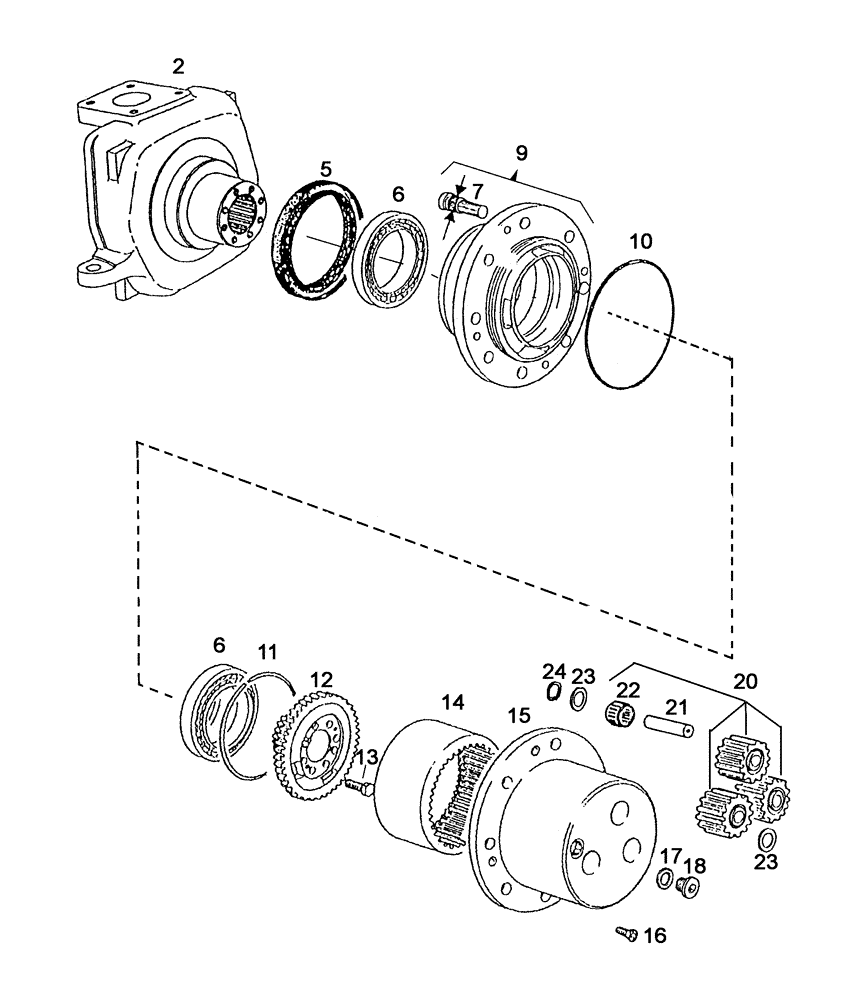

Запчасти Case IH C55 (05-13[01]) - HUB PLANETARY DRIVE - FRONT AXLE (05) - STEERING

2

GEHÄUSE/HOUSING/CARTER/HUS/SCATOLA - Siehe Seite(n) vorne/See page(s) before/Voir page(s) avant(es)/Se side(r) forrest/Vedere pagin(a/e) precedent(e/i)

2шт.

5

1-33-741-027

OIL SEAL

2шт.

6

135700421058

BALL BEARING

4шт.

7

135700411021

LARGE PIN

PIN, LARGE , Ø22mm

1шт.

7

1-33-741-031

LARGE PIN

PIN, LARGE , Ø23,5mm

1шт.

9

1-33-741-028

HUB

Einschließlich/Includes/Avec/Inklusive/Compreso 7

2шт.

10

1-33-741-022

O-RING

2шт.

11

1-33-741-018

PLATE, LOCKING

2шт.

12

1-33-741-019

GEAR

2шт.

13

135700411070

SCREW,M10 x 35mm, Cl 10.9

M10x35-10,9

24шт.

14

1-33-742-061

GEAR, RING

RING, GEAR

2шт.

15

1-33-741-001

PINION CARRIER

GEAR CARRIER

2шт.

16

190003862031

SCREW,M10 x 20mm, Cl 10.9

M10x20-10.9

4шт.

17

190003098033

SEAL

A26x34-CU

2шт.

18

1397411027

SCREW

2шт.

20

1-33-742-057

SET OF PARTS

Einschließlich/Includes/Avec/Inklusive/Compreso 21, 22

2шт.

21

1-33-742-058

PIN

6шт.

22

1-33-742-059

BEARING, NEEDLE

6шт.

23

137700420722

WASHER, THRUST

12шт.

24

1-33-742-060

LOCKING RING

6шт.
