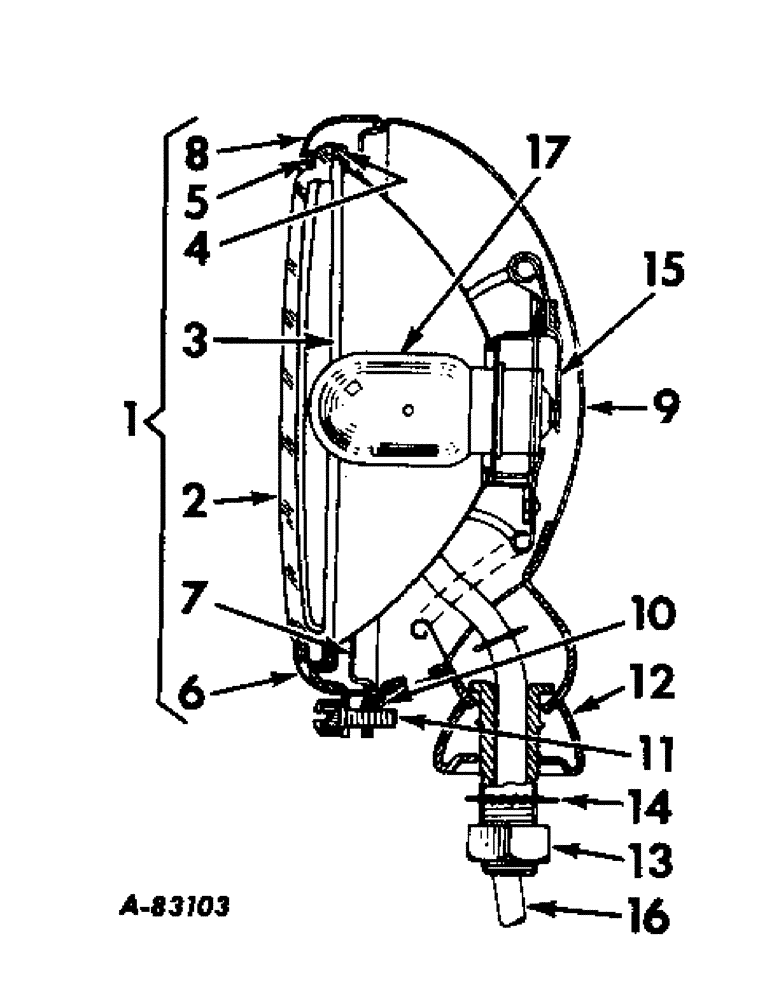

Запчасти Case IH B414 (074) - ELECTRICAL SYSTEM, HEADLIGHT, B-414/25083 UP (06) - ELECTRICAL SYSTEMS

3065300R91

LAMP BASE

SERVICE PARTS FOR HEADLIGHT, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A

1шт.

3065302R91

LAMP

SERVICE PARTS FOR HEADLIGHT, CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT B

1шт.

1

3066520R91

NO LONGER SERVICED

DOOR, LENS AND REFLECTOR ASSEMBLY

1шт.

2

705777R1

LENS

1шт.

3

3064387R91

REFLECTOR

AND TUBE ASSEMBLY

1шт.

4

702475R1

GASKET

LENS TO REFLECTOR

1шт.

5

700447R1

DOOR SEAL

LENS TO DOOR

1шт.

6

3068115R1

CLIP

DOOR BOTTOM

1шт.

7

702476R1

BEARING CARRIER

RETAINER

5шт.

8

3068116R1

DOOR

1шт.

9

3066813R91

BODY

ASSEMBLY, LH, INCLUDES REF. NOS. 10 - 14, UNIT B

1шт.

9

3066814R91

BODY

ASSEMBLY, RH, INCLUDES REF. NOS. 10 - 14, UNIT A

1шт.

10

3064399R1

CATCH, BODY

1шт.

11

3064400R1

SCREW

DOOR CLIP TO BODY CATCH

1шт.

12

3066819R1

WASHER, PEDESTAL SEATING

1шт.

13

3040097R1

NUT, LIGHT MOUNTING

1шт.

14

3066821R1

WASHER

SHAKEPROOF MOUNTING NUT

1шт.

15

3066522R91

CONTACT ASSEMBLY

1шт.

16

3066817R1

CABLE, 40 IN.

1шт.

17

708512R91

LAMP

BULB, 12V-24W PRE-FOCUS

1шт.
