(072) - ELECTRICAL SYSTEM, SIDE AND REAR LIGHT

Запчасти Case IH B414 (072) - ELECTRICAL SYSTEM, SIDE AND REAR LIGHT (06) - ELECTRICAL SYSTEMS

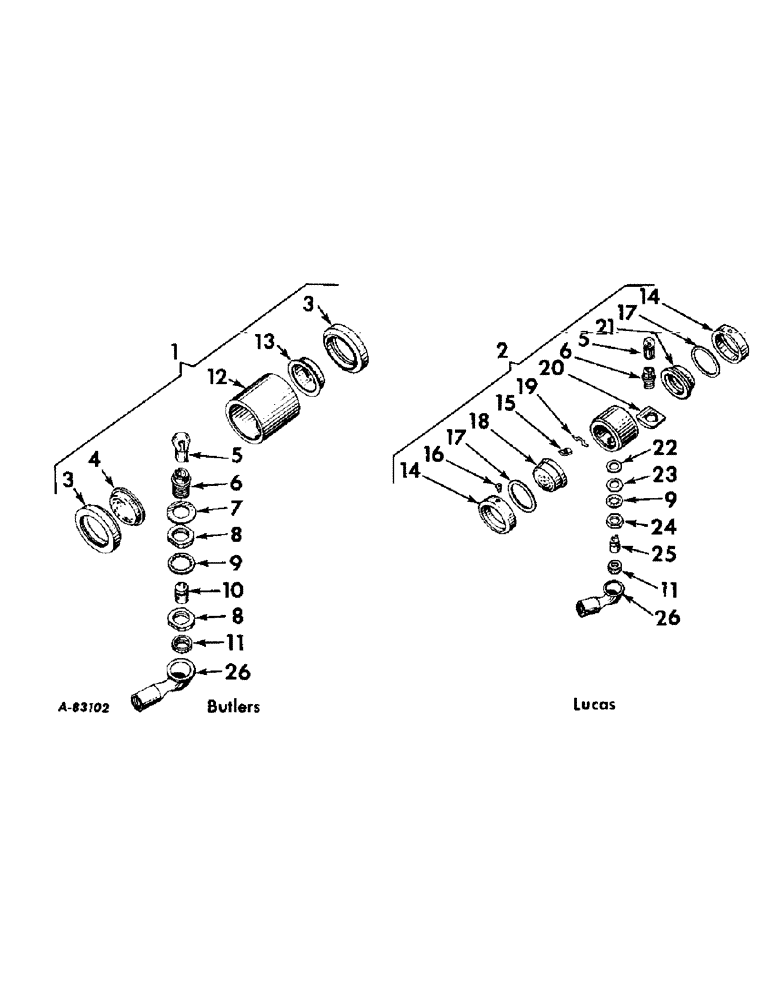

Схема запчастей Case IH B414 - (072) - ELECTRICAL SYSTEM, SIDE AND REAR LIGHT (06) - ELECTRICAL SYSTEMS
3
25
12
21
4
24
16
3
26
5
6
11
14
15
2
7
1
8
14
19
17
11
13
18
8
17
9
23
9
26
20
5
10
22
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

708348R91

LIGHT ASSY.

LIGHT ASSY, SIDE AND REAR, 12 V 6W, BUTLERS, OPTIONAL TO 705267R92

2шт.

2

705267R92

INTERIOR LIGHT

LIGHT ASSY, SIDE AND REAR, 12 V 6W, LUCAS, OPTIONAL TO 708348R91

2шт.

3

708419R2

MOUNT, LENS

2шт.

4

708418R1

LENS

RED

1шт.

5

707022R91

NO LONGER SERVICED

BULB

1шт.

6

707127R1

BRACKET

SHELL, ADAPTOR

1шт.

7

3060303R1

WASHER, LOCKING

1шт.

8

3060304R1

NUT

2шт.

9

707129R1

WASHER

SHAKEPROOF

1шт.

10

3060302R91

CONTACT

ASSEMBLY

1шт.

11

707131R1

NUT

SHELL COUPLING

1шт.

12

708421R1

BODY

1шт.

13

708420R1

LENS

CLEAR

1шт.

14

707125R91

RIM ASSEMBLY

2шт.

15

706110R91

PLATE, RIM LOCKING AND SCREW 706111R1

2шт.

16

706111R1

SCREW, PRIM SECURING

2шт.

17

707126R1

GASKET, LENS SEATING RUBBER

2шт.

18

706114R1

LENS

RED

1шт.

19

706112R1

WIRE, LENS FIXING

12шт.

20

707136R1

BRACKET, BULB HOLDER SEATING

1шт.

21

706113R1

LENS

CLEAR

1шт.

22

707135R1

WASHER

LIGHT FIXING NUT

1шт.

23

707128R1

NUT

SECURING BULB HOLDER

1шт.

24

707134R1

WASHER

NUT, LIGHT FIXING

1шт.

25

706117R91

HOLDER, INTERIOR BULB

1шт.

26

705728R1

FITTING

ELBOW, CABLE, NOT PART OF LIGHT ASSY 708348R91 OR 705267R92

2шт.
