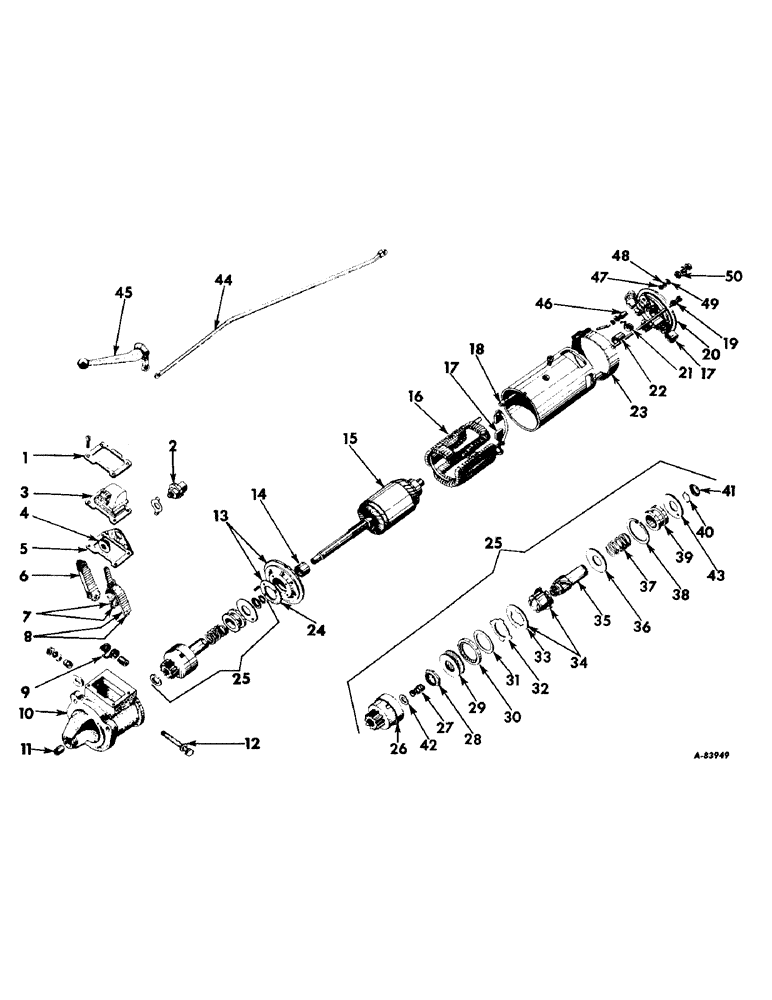

Запчасти Case IH B414 (068) - ELECTRICAL SYSTEM, CRANKING MOTOR, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

704447R94

MOTOR

ASSY, CRANKING, 12 VOLT

1шт.

1

3045651R1

PLATE, DUST COVER

1шт.

2

705858R91

SWITCH

USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

2

705383R91

SWITCH

USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

705385R1

TAG

PLATE, SWITCH LOCKING

1шт.

3

705859R1

COVER

RUBBER DUST

1шт.

4

3062341R1

NUT, SWITCH FIXING

1шт.

5

3045650R1

BRACKET, SWITCH FIXING

1шт.

6

3047390R91

LEVER, TOP AND STIRRUP

1шт.

6

705836R91

LEVER, TOP AND STIRRUP, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

7

705835R92

LEVER W/SHOES 706715R91, OPERATING DRIVE

1шт.

3045649R1

COLLAR, LEVER DISTANCE

2шт.

8

706715R91

SHOES, OPERATING DRIVE SET, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E, ORDER 705835R92

1шт.

9

705838R1

SPRING, LEVER RETURN

1шт.

10

3047391R91

BRACKET ASSY, DRIVE END

1шт.

10

705850R91

HOUSING

BRACKET ASSY, DRIVE END, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

11

3047392R1

BUSHING

DRIVE END BRACKET

1шт.

11

705851R1

BUSHING

DRIVE END BRACKET, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

12

3045648R1

BOLT, LEVER PIVOT

1шт.

13

3047393R91

BRACKET

ASSY, BRAKE

1шт.

13

705852R91

BRACKET ASSY, BRAKE, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

14

3047394R1

BUSHING

BRAKE BRACKET

1шт.

14

705853R1

BUSHING

BRAKE BRACKET, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

15

3047395R91

ARMATURE

ASSY

1шт.

15

705854R91

ARMATURE

USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E

1шт.

16

705855R91

COIL

ASSY, FIELD

1шт.

17

705833R91

BRUSH, COMMUTATOR

BRUSH SET

1шт.

18

705856R1

TERMINAL STRIP

TERMINAL, FIELD

1шт.

19

3062339R1

BOLT, THROUGH FIXING

2шт.

20

3062340R91

BRACKET

COMMUTATOR END

1шт.

21

3043618R91

VALVE SPRING

SPRING SET, BRUSH TENSION

1шт.

22

702006R1

BUSHING

BRACKET

1шт.

23

705830R91

BAND, COVER

1шт.

705832R1

NUT

COVER BAND FIXING SCREW

1шт.

3045647R1

SCREW, COVER BAND FIXING

1шт.

24

3045655R91

WASHER W/FOUR RIVETS, BRAKE

1шт.

25

705839R91

DRIVE

ASSY, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E, ORDER 3045652R91

1шт.

25

3045652R91

DRIVE

ASSY, CONSISTS OF REF. NOS. 26 - 43

1шт.

26

705844R91

CYLINDER

PINION AND BARREL

1шт.

3045663R1

BUSHING, PINION

1шт.

27

3045666R1

SPRING, CUSHIONING PINION

1шт.

28

705845R1

NUT, PRESSURE PLATE LOCKING

1шт.

29

3045665R1

PLATE, PRESSURE

2шт.

30

3045664R1

RING, REAR CLUTCH PLATE

1шт.

31

705848R91

SHIM

PACKAGE, CLUTCH ADJUSTING

1шт.

32

705846R91

PLATE

SET, CLUTCH

1шт.

33

3045654R1

PLATE, INNER RACE SUPPORT

1шт.

34

3045653R91

SET W/PLATE, CLUTCH INNER RACE

1шт.

35

705841R91

BUSHING, DRIVING SLEEVE

1шт.

36

3045662R1

PLATE, CLUTCH RETAINING

1шт.

37

705840R1

SPRING, TENSION, USED WITH CRANKING MOTOR 704447R91 LUCAS 26132-A AND 704447R92 LUCAS 26132-E, ORDER SPRING 3045660R1 AND BUSHING 3045659R1

1шт.

37

3045660R1

SPRING, OPERATING BUSHING TENSION

1шт.

38

3045661R1

CIRCLIP, CLUTCH RETAINING

1шт.

39

3045659R1

BUSHING, OPERATING DRIVE

1шт.

40

705842R1

RING, RETAINING BRAKE PLATE

1шт.

41

705843R1

CUP, RETAINING RING

1шт.

42

3047647R1

WASHER, THRUST

1шт.

43

3047648R1

PLATE, BRAKE

1шт.

44

708347R1

ROD, MANUAL STARTER OPERATING

1шт.

Q1284

HEADED PIN,6.35mm OD x 19.05mm L

PIN, 1/4 x 3/4 STD-HD

1шт.

512166R

PIN, 1/4 x 7/8 STD-HD

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

45

708346R1

LEVER, MANUAL STARTER OPERATING

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 GA

1шт.

46

3063227R1

SLEEVE

1шт.

47

3063231R1

WASHER

1шт.

48

3063230R1

WASHER

1шт.

49

3063229R1

WASHER

1шт.

50

3063228R1

NUT

2шт.

3045658R1

TERMINAL, EARTH

1шт.

705860R91

PACKAGE

SUNDRY PARTS SET, AS REQUIRED

1шт.

102635

NUT,3/8"-16, G5

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 HEX-HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
