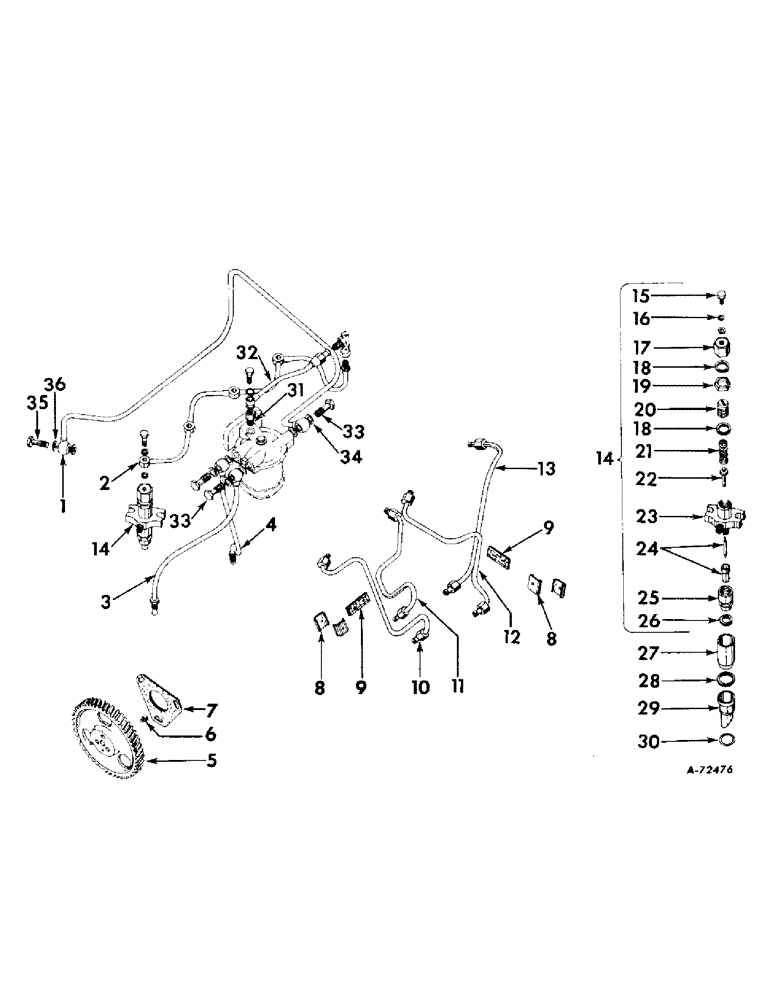

Запчасти Case IH B414 (041) - FUEL SYSTEM, FUEL INJECTION SYSTEM, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
3043649R92
PIPE
ASSY, FUEL FEED PUMP TO FILTER, Serial Range: -BD-154/23780
1шт.
1
3043649R94
PIPE
ASSY, FUEL FEED PUMP TO FILTER, Start Serial: BD-154/23781
1шт.
2
3043653R91
HOSE
PIPE, FUEL SPILL
1шт.
3
3043651R91
PIPE
ASSY, INJECTION PUMP TO FILTER EXCESS
1шт.
4
3043650R93
PIPE
ASSY, FUEL FILTER TO INJECTION PUMP
1шт.
5
708290R11
GEAR
W/PIN ASSY, INJECTION PUMP
1шт.
425463
SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW
W/WASHER, 5/16-24 x 3/4 HEX-HD MACH
3шт.
6
708291R1
DOWEL
PIN, DOWEL
1шт.
7
708289R1
BOLT
GASKET, INJECTION PUMP
1шт.
8
841432R1
CLAMP
CLIP, INJECTION PUMP
4шт.
703700R1
NUT, NO. 12 TYPE P SELF-LOCKING
2шт.
100780
VALVE
SCREW, NO. 12 x 7/8 MACH
2шт.
9
841433R1
INSULATOR BLOCK
PAD, INJECTION PIPE CLIP
2шт.
10
708307R21
PIPE
ASSY, INJECTION, NO. 1
1шт.
11
708308R31
PIPE
ASSY, INJECTION, NO. 2
1шт.
12
708309R21
PIPE
ASSY, INJECTION, NO. 3
1шт.
13
708810R21
PIPE
ASSY, INJECTION, NO. 4
1шт.
14
3040870R91
FUEL SYSTEM INJECTOR
NOZZLE AND HOLDER ASSY, INJECTION, COMPOSED OF, Serial Range: -BD-154/23780
4шт.
706275R91
NOZZLE HOLDER
BODY
1шт.
706289R1
BOLT
1шт.
706290R1
CAP
1шт.
706292R1
NUT
1шт.
706288R1
NUT
1шт.
706283R1
NUT
1шт.
3040871R91
NOZZLE CAP
NOZZLE
1шт.
706282R91
NEEDLE BEARING CAGE
SPINDLE
1шт.
706293R1
SPRING
1шт.
706287R1
WASHER
2шт.
703519R1
WASHER
2шт.
706291R2
SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk
1шт.
14
3040870R93
FUEL SYSTEM INJECTOR
NOZZLE AND HOLDER ASSY, INJECTION, COMPOSED OF, Start Serial: BD-154/23781
4шт.
3066622R91
BODY
1шт.
706289R1
BOLT
1шт.
3066624R1
CAP
1шт.
3066623R1
NUT
1шт.
3066627R1
NUT
1шт.
3040871R91
NOZZLE CAP
NOZZLE
1шт.
706282R91
NEEDLE BEARING CAGE
SPINDLE
1шт.
3066625R1
SPRING
1шт.
706287R1
WASHER
1шт.
703519R1
WASHER
1шт.
706291R2
SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk
1шт.
3066626R1
WASHER
1шт.
103026
NUT,3/8"-24, G5
8шт.
706077R1
WASHER
8шт.
15
706289R1
BOLT
BANJO
4шт.
16
703519R1
WASHER
8шт.
17
706288R1
NUT
NOZZLE HOLDER CAP, Serial Range: -BD-154/23780
4шт.
18
706287R1
WASHER
JOINT
8шт.
19
706292R1
NUT, LOCK, Serial Range: -BD-154/23780
4шт.
19
3066623R1
NUT
LOCK, Start Serial: BD-154/23781
4шт.
20
706290R1
CAP, SPRING, Serial Range: -BD-154/23780
4шт.
20
3066624R1
CAP, SPRING, Start Serial: BD-154/23781
4шт.
21
706293R1
SPRING
, Serial Range: -BD-154/23780
4шт.
21
3066625R1
SPRING
, Start Serial: BD-154/23781
4шт.
3066626R1
WASHER
FOR SPRING 3066625R1
1шт.
22
706282R91
NEEDLE BEARING CAGE
SPINDLE ASSY
4шт.
23
706275R91
NOZZLE HOLDER
BODY ASSY, NOZZLE HOLDER, Serial Range: -BD-154/23780
4шт.
23
3066622R91
BODY
ASSY, NOZZLE HOLDER, Start Serial: BD-154/23781
4шт.
24
3040871R91
NOZZLE CAP
NOZZLE ASSY
4шт.
25
706283R1
NUT
NOZZLE CAP, Serial Range: -BD-154/23780
4шт.
25
3066627R1
NUT
NOZZLE CAP, Start Serial: BD-154/23781
4шт.
26
706291R2
SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk
4шт.
27
708314R1
CHAMBER
HOLDER, PRE-COMBUSTION CHAMBER
4шт.
28
710382R3
GASKET,29mm ID x 35mm OD x 1.22mm Thk
PRE-COMBUSTION CHAMBER UPPER
4шт.
29
3045523R1
CHAMBER
PRE-COMBUSTION
4шт.
30
710383R1
GASKET
PRE-COMBUSTION CHAMBER LOWER
4шт.
31
3043646R91
FITTING
VALVE ASSY, CHECK BALL
1шт.
3043647R1
CAPSCREW
SCREW, CONNECTION
1шт.
701735R1
WASHER
CONNECTION SCREW
2шт.
3049111R1
SEALING WASHER
CHECK BALL VALVE
1шт.
32
3043652R91
PIPE
ASSY, FILTER AIR BLEED TO RETURN PIPE DUEL
1шт.
33
708296R1
CONNECTOR, ELEC
BOLT, BANJO, FUEL FILTER
3шт.
34
708297R1
GASKET
WASHER, FUEL FILTER BANJO BOLT
6шт.
35
708296R1
CONNECTOR, ELEC
BOLT, BANJO, FUEL FEED PUMP
2шт.
36
708297R1
GASKET
WASHER, FUEL FEED PUMP BANJO BOLT
4шт.
3043655R1
CLIP
FUEL PIPE
1шт.
109084
NUT,1/4"-20, G5
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
707321R91
ELECTRICAL WIRE
SEAL, GOVERNOR
2шт.
Выбрано товаров: 81
