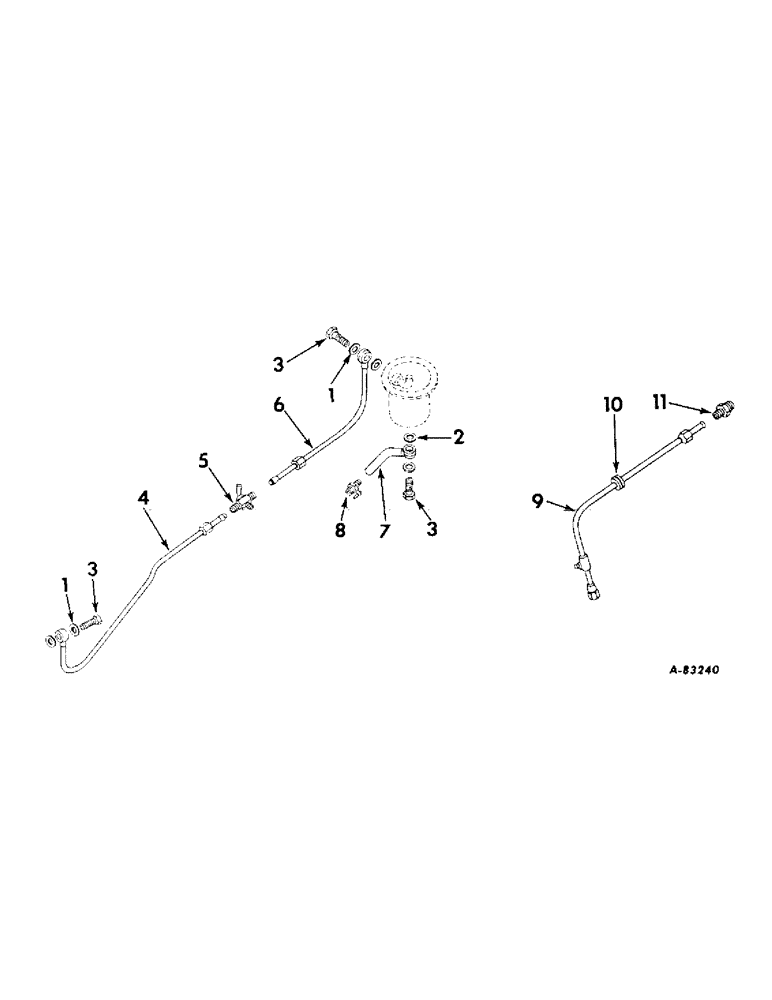

Запчасти Case IH B414 (040) - FUEL SYSTEM, FUEL PIPES, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

708297R1

GASKET

WASHER, BANJO BOLT

4шт.

2

3049468R1

WASHER

BANJO BOLT

2шт.

3

708296R1

CONNECTOR, ELEC

BOLT, BANJO

3шт.

4

3045331R91

PIPE

ASSY, FUEL TAP TO PUMP, Serial Range: -B-414/28130

1шт.

4

3064514R91

PIPE

ASSY, FUEL TAP TO PUMP, Start Serial: B-414/28131

1шт.

5

3045338R91

VALVE

TAP ASSY, FUEL, Serial Range: -B-414/28130

1шт.

5

3064222R91

VALVE

TAP ASSY, FUEL, Start Serial: B-414/28131

1шт.

6

3047278R91

PIPE

ASSY, FUEL TRAP TO TAP

1шт.

7

3045330R11

PIPE ASSY, WATER DRAIN

1шт.

8

3045339R92

FAUCET

COCK, DRAIN

1шт.

9

3043914R91

PIPE

RETURN ASSY, FUEL

1шт.

10

704700R1

GROMMET

FUEL RETURN PIPE

1шт.

11

704701R1

UNION

FUEL TANK AND RETURN PIPE

1шт.

704695R1

LATCH ASSY.

CLIP, FUEL PIPE

2шт.

708117R1

NO LONGER SERVICED

CLIP, FUEL PIPE TANK TO PUMP

1шт.

52728D

CUSHION, FUEL PIPE

1шт.
