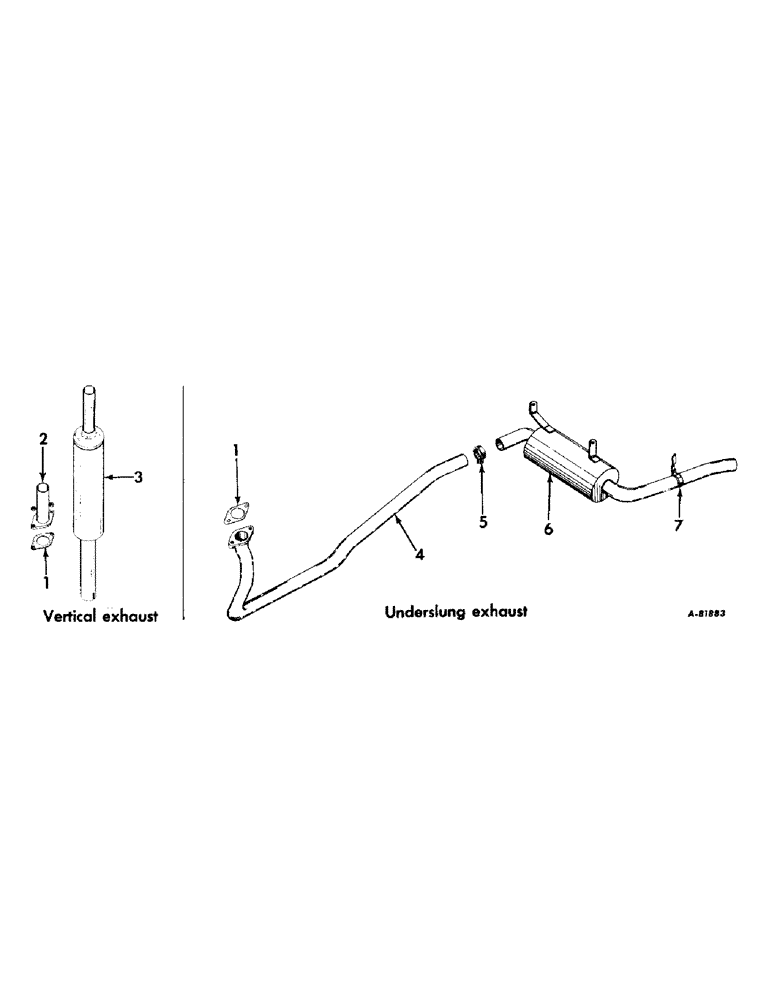

Запчасти Case IH B414 (028) - DIESEL ENGINE, EXHAUST SYSTEM (01) - ENGINE

1

704613R1

GASKET

EXHAUST PIPE FLANGE

1шт.

2

704614R31

PIPE

ASSY, EXHAUST

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

704616R96

MUFFLER

EXHAUST

1шт.

4

3044044R94

PIPE

ASSY, MANIFOLD TO MUFFLER

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe flange 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

704621R1

CLAMP

EXHAUST PIPE

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

3047572R92

MUFFLER

ASSY, EXHAUST

1шт.

7

705449R1

CLAMP

MUFFLER OUTLET PIPE SUPPORT

1шт.

102635

NUT,3/8"-16, G5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
