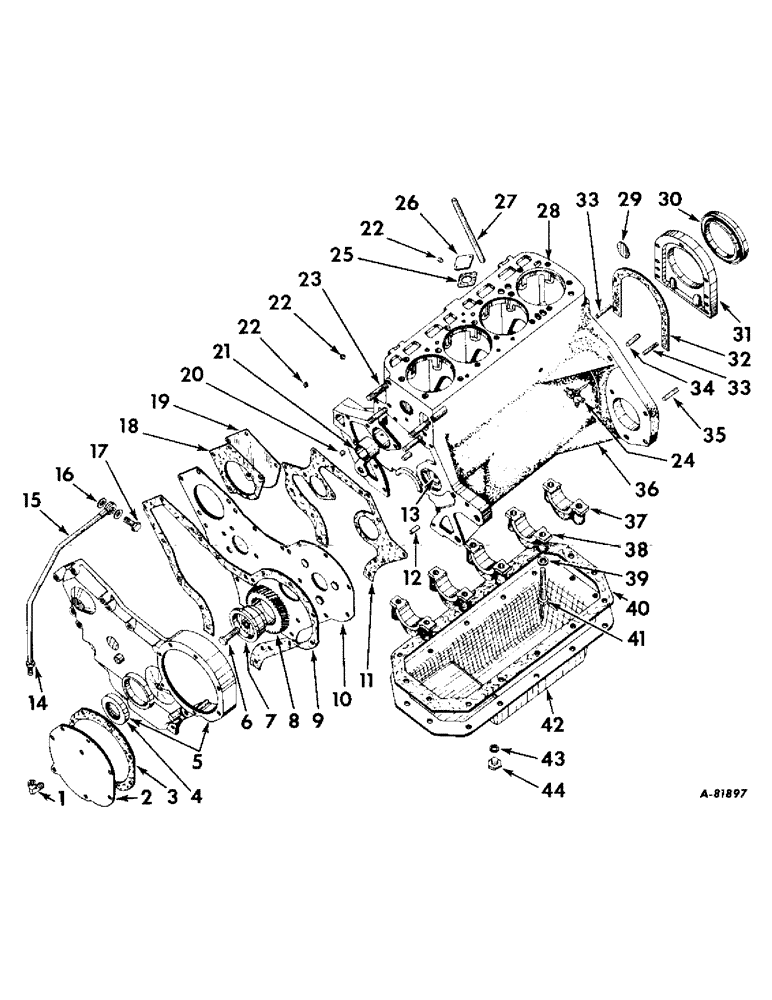

Запчасти Case IH B414 (024) - DIESEL ENGINE, CRANKCASE, FRONT COVER AND OIL PAN (01) - ENGINE

1

3063558R1

CONNECTOR, ELEC

ELBOW, BREATHER PIPE, INJECTION PUMP GEAR COVER END

1шт.

2

709904R2

COVER

INJECTION PUMP GEAR

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

703849R1

GASKET

INJECTION PUMP GEAR COVER

1шт.

4

703844R91

OIL RESERVOIR

SEAL, CRANKSHAFT FRONT OIL

1шт.

5

3042069R21

COVER

W/OIL SEAL, 703844R91, CRANKCASE FRONT

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, 1/2-13 x 1-7/8 HEX-HD CAP

1шт.

7

703853R11

SHAFT

W/PIN, 932039R1, IDLER GEAR

1шт.

8

703852R1

GEAR

IDLER

1шт.

9

708285R1

GASKET

CRANKCASE FRONT COVER

1шт.

10

709901R11

PLATE

ASSY, CRANKCASE FRONT

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

3047230R1

SCREW

CRANKCASE FRONT PLATE

2шт.

703636R1

WASHER

CRANKCASE FRONT PLATE SCREW TAB

1шт.

11

709903R1

GASKET

CRANKCASE FRONT PLATE

1шт.

12

141244

PIN

3/8 x 1 DOWEL, CRANKSHAFT FRONT

2шт.

13

751610R1

INSERT

LOCK IDLER GEAR BOLT SCREW

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, CRANKCASE BREATHER PIPE CONNECTOR

1шт.

15

3043654R91

PIPE

ASSY, CRANKCASE BREATHER

1шт.

16

708297R1

GASKET

WASHER, BREATHER PIPE BANJO BOLT

2шт.

17

708296R1

CONNECTOR, ELEC

BOLT, BANJO, BREATHER PIPE

1шт.

18

703851R1

GASKET

HYDRAULIC PUMP

1шт.

19

703850R1

COVER

HYD PUMP OPENING

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

272391

BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5

SCREW, 5/16-18 x 2-1/8 HEX-HD CAP

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

11/32 x 3/4 x 16 GA

1шт.

20

444691

PLUG

1/4 HEX-SOC PIPE

2шт.

21

703827R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT FRONT

1шт.

21

703828R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT CENTER

1шт.

21

703829R1

CAMSHAFT BEARING

BUSHING, CAMSHAFT REAR

1шт.

22

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

23

703832R1

STUD

WATER PUMP

4шт.

24

106794

VALVE

COCK, 1/4 TYPE A WATER DRAIN

1шт.

25

3042467R1

GASKET

HOURMETER DRIVE OPENING COVER

1шт.

26

3042468R1

COVER

HOURMETER DRIVE OPENING

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

751826R1

TUBE,0.375" OD, 5.75" Length

DIPSTICK

1шт.

28

751834R1

INSERT

7/16 HELI-COIL THREAD

16шт.

29

172578

PLUG,Exp, 1 3/4"

1-3/4 DIA TYPE 1 EXPANSION

1шт.

30

708903R91

HOLDER

SEAL, CRANKSHAFT REAR OIL

1шт.

31

708904R1

RETAINER

CRANKSHAFT REAR OIL SEAL

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

CRANKSHAFT REAR OIL SEAL RETAINER

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

32

708907R1

GASKET

CRANKSHAFT REAR OIL SEAL RETAINER

1шт.

33

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 DOWEL, CRANKSHAFT REAR OIL SEAL RETAINER

2шт.

34

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1-1/2 DOWEL

2шт.

35

703877R1

STUD

CRANKING MOTOR

1шт.

36

3061330R96

SERVICE KIT

CRANKCASE SERVICE PACKAGE, COMPOSED OF, Serial Range: -BD-154/8203

1шт.

3040912R41

CRANKCASE

1шт.

381599R91

CRANKSHAFT

1шт.

704088R91

ROD, CONNECTING

RODS

1шт.

3044478R91

SLEEVE CYLINDER

SLEEVE SET

1шт.

36

3040912R41

CRANKCASE

ASSY, COMPOSED OF

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

703834R2

CAP (NSS)

4шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP (NSS)

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

16шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

NLS

NO LONGER SERVICED

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703832R1

STUD

4шт.

703877R1

STUD

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

37

CAP, CRANKSHAFT BEARING, REAR, NOT SERVICED SEPARATELY, ORDER CRANKCASE ASSY, 3040912R41

1шт.

38

CAP, CRANKSHAFT BEARING, NOT SERVICED SEPARATELY, ORDER CRANKCASE ASSY, 3040912R41

1шт.

39

3061325R1

WASHER

CRANKSHAFT BEARING CAP BOLT

10шт.

40

703840R1

GASKET

CRANKCASE PAN

1шт.

41

3061211R1

BOLT,1/2" - 13 x 2.875"

CRANKSHAFT BEARING CAP

10шт.

42

704712R21

HOUSING

PAN ASSY, CRANKCASE OIL, Serial Range: -BD-154/30944

1шт.

42

3064063R11

SUMP

PAN ASSY, CRANKCASE OIL, Start Serial: BD-154/30945

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

43

3405H

GASKET

CRANKCASE PAN DRAIN PLUG

1шт.

44

359875R1

PLUG

CRANKCASE PAN DRAIN

1шт.
