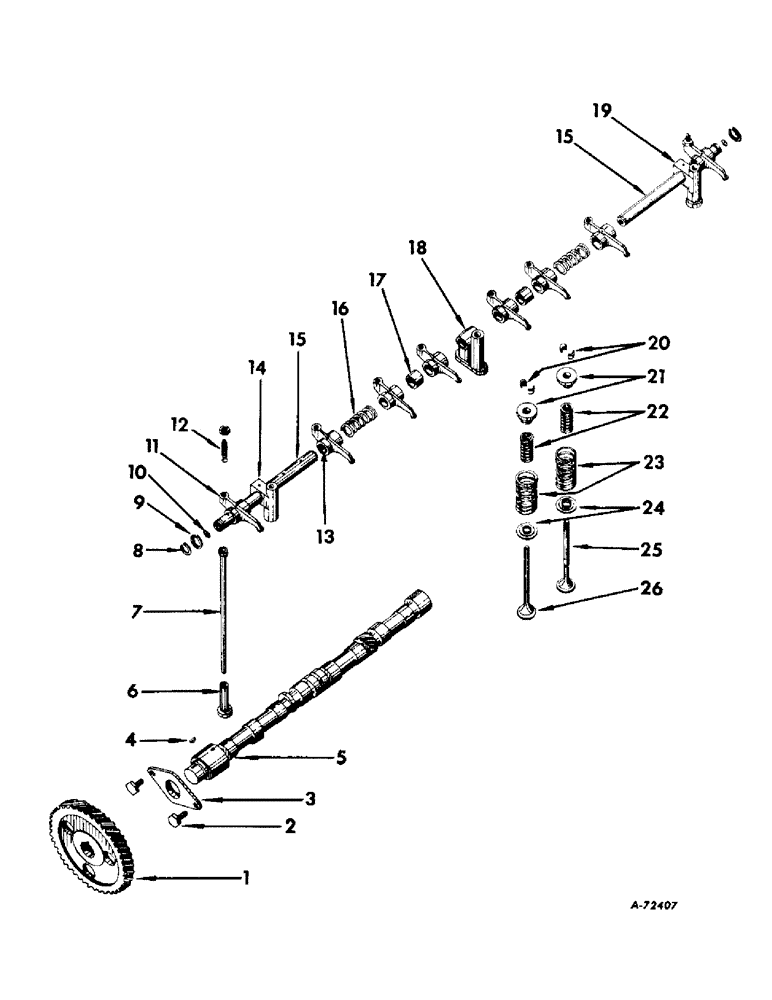

Запчасти Case IH B414 (022) - DIESEL ENGINE, CAMSHAFT AND VALVE MECHANISM (01) - ENGINE

1

703812R1

GEAR

CAMSHAFT, 66 TEETH, Serial Range: -BD-154/22252

1шт.

1

3064085R1

PINION

GEAR, CAMSHAFT, 66 TEETH, Serial Range: -BD-154/22252

1шт.

2

26058D

SCREW

CAMSHAFT THRUST PLATE

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

43249D

PLATE

CAMSHAFT THRUST

1шт.

4

431787

WOODRUFF KEY,#61, 3/16" x 5/8", HT

KEY, 3/16 x 5/8 ALY-STL WOODRUFF 61, CAMSHAFT GEAR

1шт.

5

709450R1

CAMSHAFT

UP TO BD-154/22251

1шт.

6

704782R1

TAPPET

VALVE

8шт.

7

704783R2

ROD

VALVE PUSH

8шт.

8

43375D

RING

VALVE LEVER SHAFT SNAP

2шт.

9

43374D

SPRING WASHER

VALVE LEVER SHAFT SPRING

2шт.

10

172528

PLUG,Exp, 9/16"

9/16 TYPE 1 EXPANSION, VALVE LEVER SHAFT END

2шт.

11

706131R11

ROCKER

LEVER W/BUSHING, 24564DA, VALVE

8шт.

12

16067DA

ADJUSTMENT SCREW,3/8" - 24

VALVE LEVER ADJUSTING

8шт.

133093R1

NUT,Hex, 3/8" - 24

VALVE LEVER ADJUSTING SCREW

8шт.

13

24564DA

BUSHING

VALVE LEVER

8шт.

14

703886R2

SUPPORT

BRACKET, VALVE LEVER SHAFT FRONT

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

15

703884R21

CAMSHAFT

SHAFT W/PLUG 172528, VALVE LEVER

2шт.

16

45949D

SPRING

VALVE LEVER

2шт.

17

703893R2

SPACER

VALVE LEVER

2шт.

18

703885R1

SUPPORT

BRACKET, VALVE LEVER SHAFT CENTER

1шт.

19

703887R2

SUPPORT

BRACKET, VALVE LEVER SHAFT REAR

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

20

704443R1

WEDGE

LOCK, VALVE SPRING

16шт.

21

3044176R1

CUP

VALVE SPRING RETAINER UPPER

8шт.

22

3044239R1

VALVE SPRING

SPRING, VALVE INNER

8шт.

23

3044240R1

VALVE SPRING

SPRING, VALVE OUTER

8шт.

24

3044491R1

CUP

VALVE SPRING RETAINER LOWER

8шт.

25

3040361R1

OVERSIZE INLET VALVE

VALVE, INTAKE

4шт.

26

3043826R1

LOCK VALVE

VALVE, EXHAUST

4шт.
