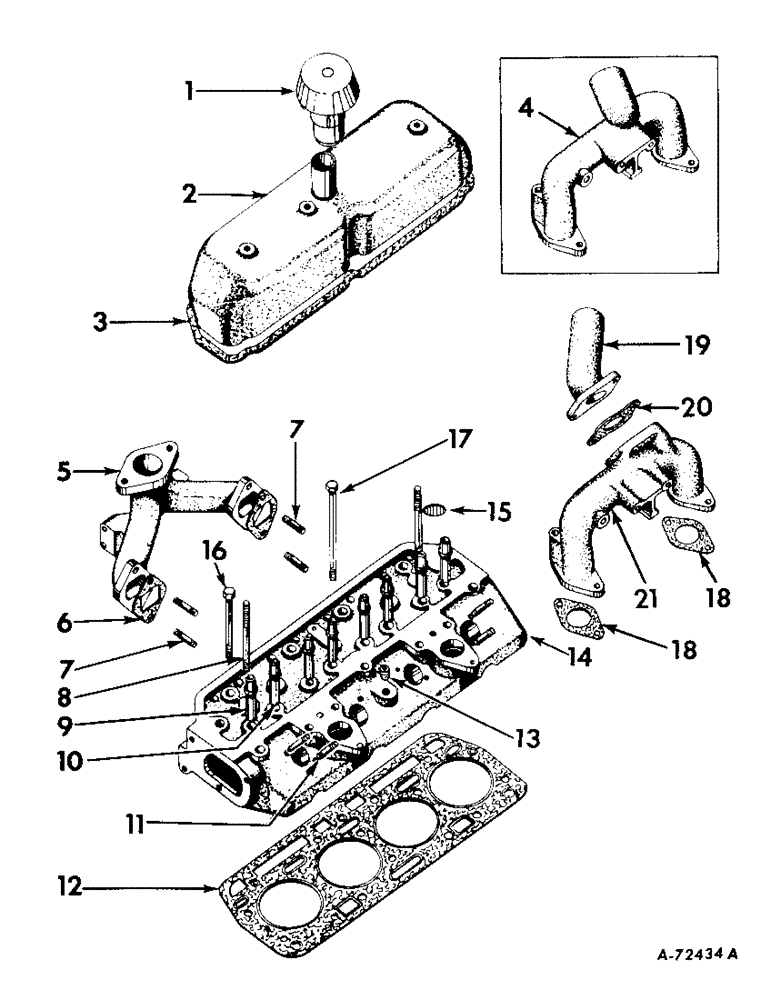

Запчасти Case IH B414 (020) - DIESEL ENGINE, CYLINDER HEAD AND MANIFOLDS (01) - ENGINE

1

3049701R91

FILTER, ELEMENT

BREATHER ASSY, OPTIONAL W/364901R91, COMPOSED OF

1шт.

3060552R1

CAP

1шт.

3060553R1

CLIP

RETAINING

1шт.

3060549R1

FILTER, ELEMENT

ELEMENT, LONG

1шт.

3060550R1

FILTER, ELEMENT

ELEMENT, SHORT

1шт.

3060547R91

MUFFLER

TUBE

1шт.

3060551R1

WASHER

CAP

1шт.

3060548R1

WASHER

ELEMENT

1шт.

3060554R1

WASHER

TUBE

1шт.

1

364901R91

BREATHER

ASSY, OPTIONAL W/3049701R91

1шт.

1

364901R91GV

CAP

Value, Breather Assy.

1шт.

2

703894R21

COVER

ASSY, VALVE HOUSING

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

102635

NUT,3/8"-16, G5

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

3

703896R1

GASKET

VALVE COVER

1шт.

4

3044499R1

MANIFOLD

AIR INTAKE, ORDER PACKAGE, 3063379R91, Serial Range: -8-414/21832

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

20157R1

BOLT,3/8" x 3 1/8", Gr 8

SCREW, 3/8-16 x 1-1/4 HEX-HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

3045354R11

MANIFOLD

ASSY, EXHAUST

1шт.

280136

NUT,3/8"-16, G8

Intake and Exhaust manifold stud 3/8"-16, G8

4шт.

6

704165R2

MANIFOLD GASKET

EXHAUST MANIFOLD

2шт.

7

703874R1

STUD

MANIFOLD TO CYLINDER HEAD

4шт.

8

3062528R1

STUD

ROCKER SHAFT END BRACKET

2шт.

9

3044493R2

VALVE GUIDE

GUIDE, EXHAUST VALVE

4шт.

10

3044492R1

VALVE GUIDE

GUIDE, INTAKE VALVE

4шт.

11

703876R2

STUD

INJECTION NOZZLE HOLDER

8шт.

12

703883R6

GASKET

CYLINDER HEAD

1шт.

3049382R1

GROMMET

CYLINDER HEAD GASKET, AS REQUIRED

1шт.

13

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

14

3044489R91

CYLINDER HEAD

HEAD W/VALVES ASSY, CYLINDER, COMPOSED OF

1шт.

3044176R1

CUP

8шт.

3044191R1

CUP

8шт.

3044490R91

HEAD (CYLINDER)

HEAD

1шт.

704443R1

WEDGE

LOCK

16шт.

3044239R1

VALVE SPRING

SPRING

8шт.

3044240R1

VALVE SPRING

SPRING

8шт.

3040361R1

OVERSIZE INLET VALVE

VALVE

4шт.

3043826R1

LOCK VALVE

VALVE

4шт.

14

3044490R91

HEAD (CYLINDER)

HEAD ASSY, CYLINDER, COMPOSED OF

1шт.

3044492R1

VALVE GUIDE

GUIDE

4шт.

3044493R2

VALVE GUIDE

GUIDE

4шт.

3043824R1

HEAD (CYLINDER)

HEAD (NSS)

1шт.

172558

PLUG,Exp, 1 1/4"

2шт.

703874R1

STUD

4шт.

703875R1

STUD

2шт.

703876R2

STUD

8шт.

15

172558

PLUG,Exp, 1 1/4"

1-1/4 EXPANSION

1шт.

16

708331R1

BOLT

BOLT, CYLINDER HEAD SHORT

15шт.

63116D

WASHER

CYLINDER HEAD BOLT

15шт.

17

708332R1

BOLT,Cyl Hd

CYLINDER HEAD LONG

1шт.

63116D

WASHER

CYLINDER HEAD BOLT

1шт.

18

704162R1

MANIFOLD GASKET

INTAKE MANIFOLD

2шт.

19

3063372R1

PIPE

AIR INTAKE MANIFOLD, Start Serial: B-414/21833

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

3063373R1

GASKET

AIR INTAKE MANIFOLD PIPE

1шт.

21

3063371R1

MANIFOLD

AIR INTAKE, Start Serial: B-414-21833

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, 3/8-16 x 3-1/8 HEX-HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3063379R91

PACKAGE

AIR INTAKE MANIFOLD SERVICE, CONSISTS OF

1шт.

3063373R1

GASKET

1шт.

3063371R1

MANIFOLD

1шт.

3063372R1

PIPE

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
